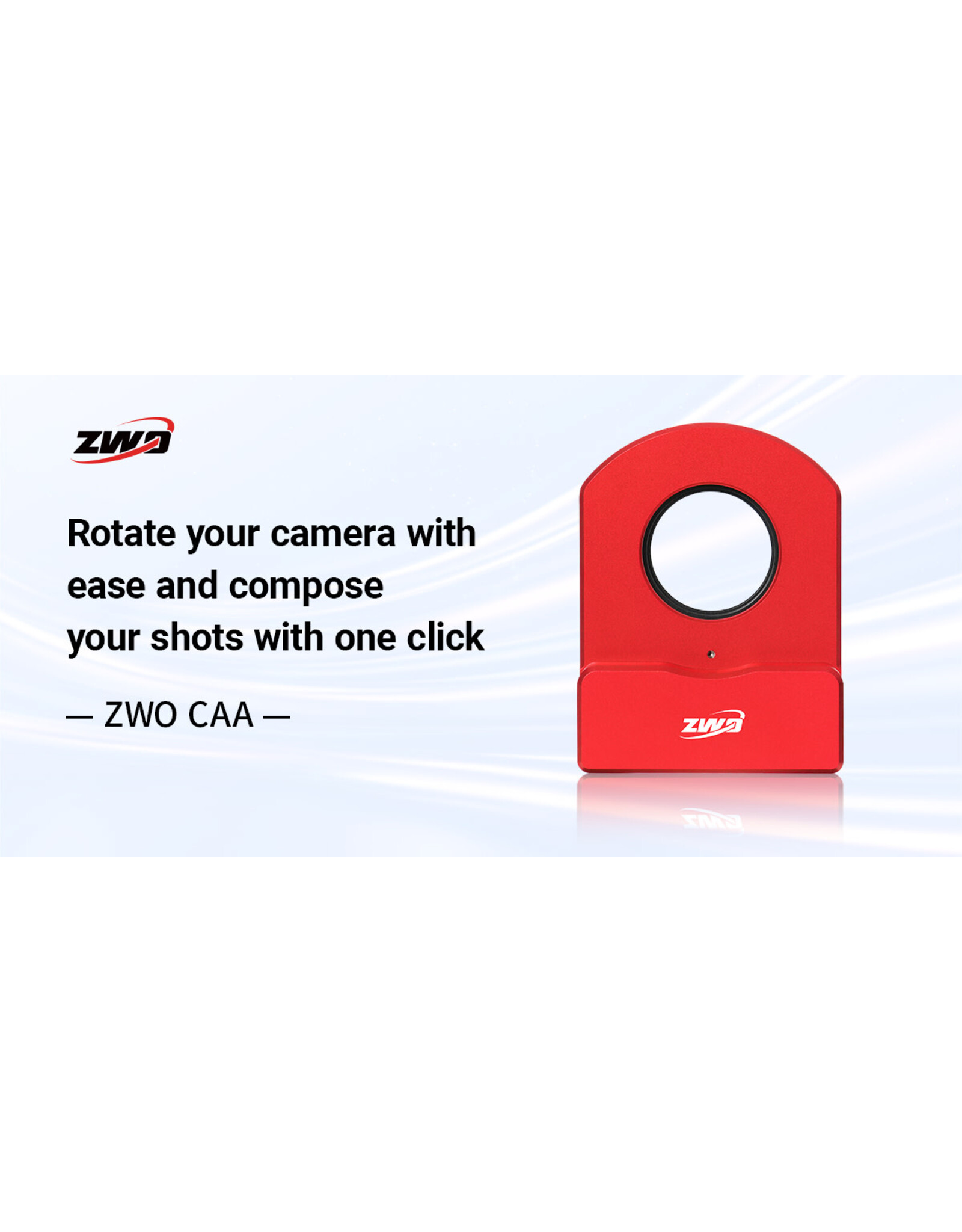

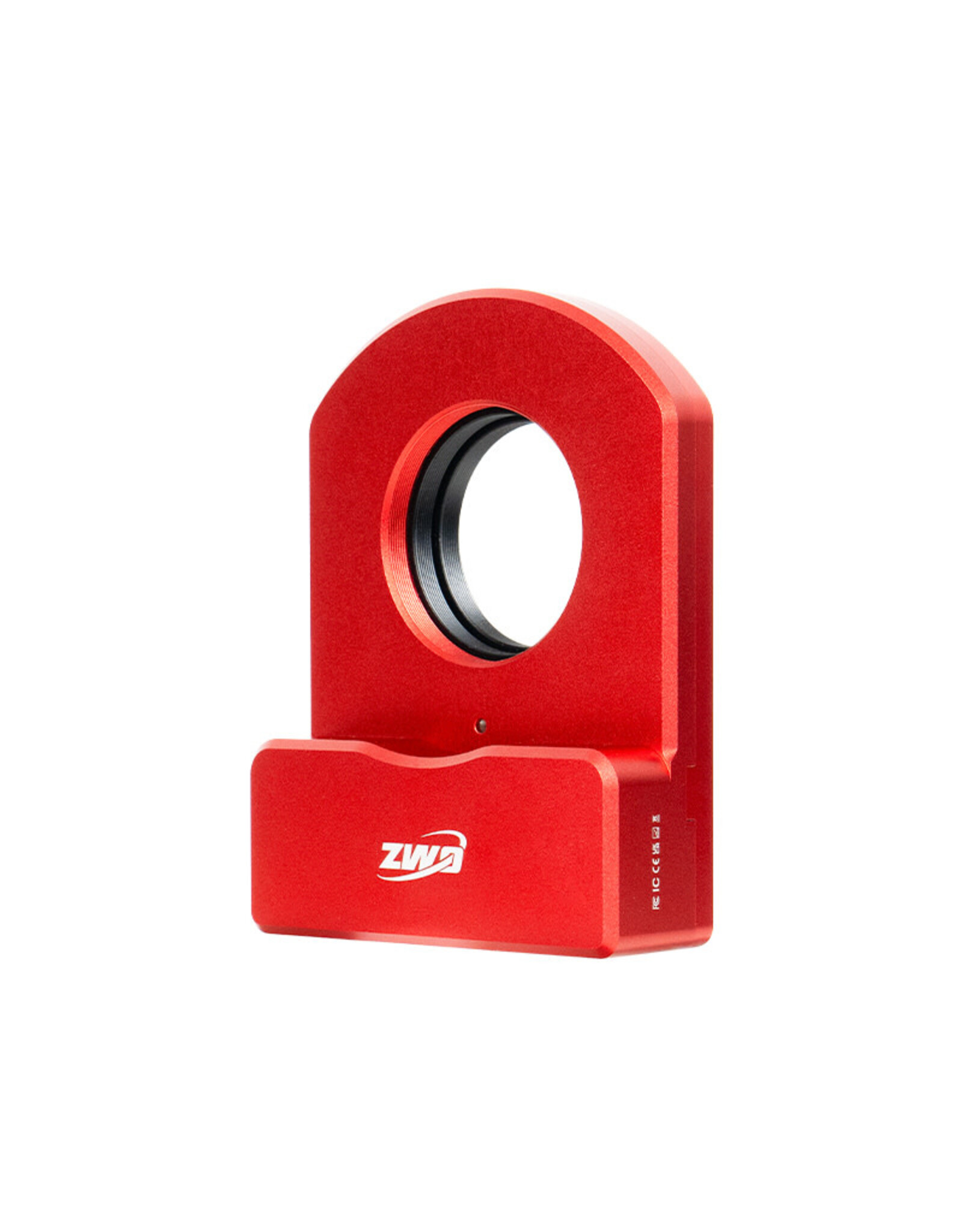

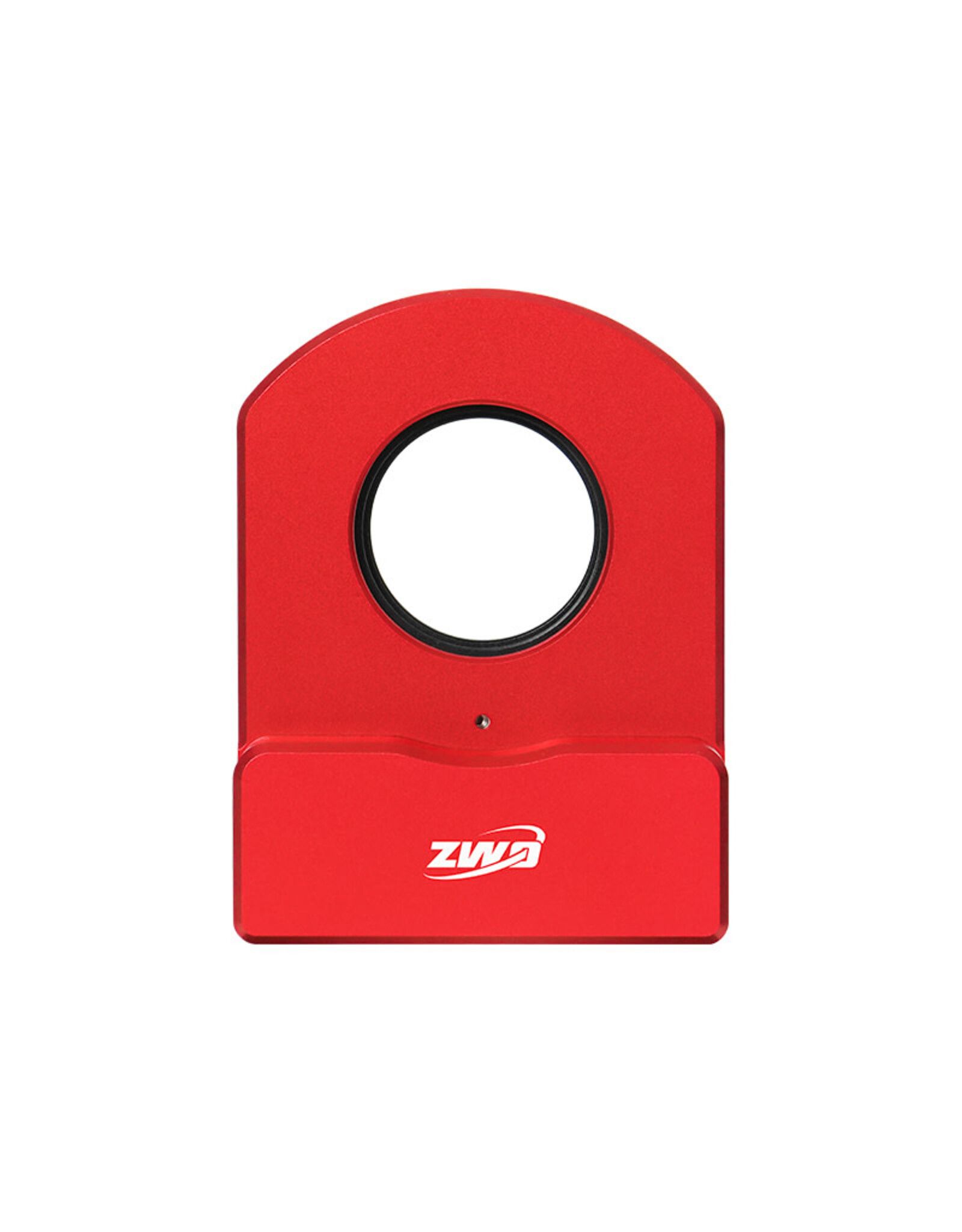

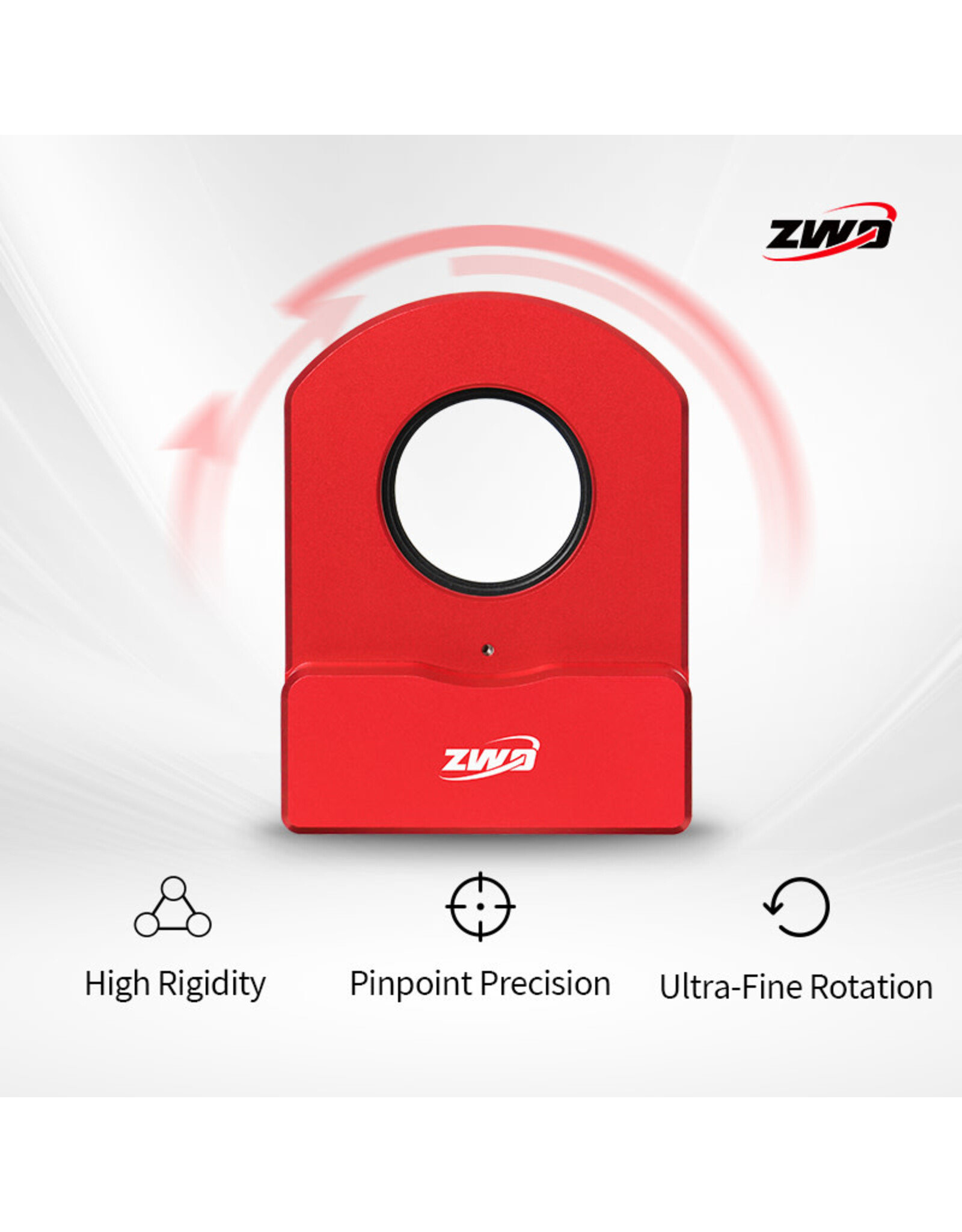

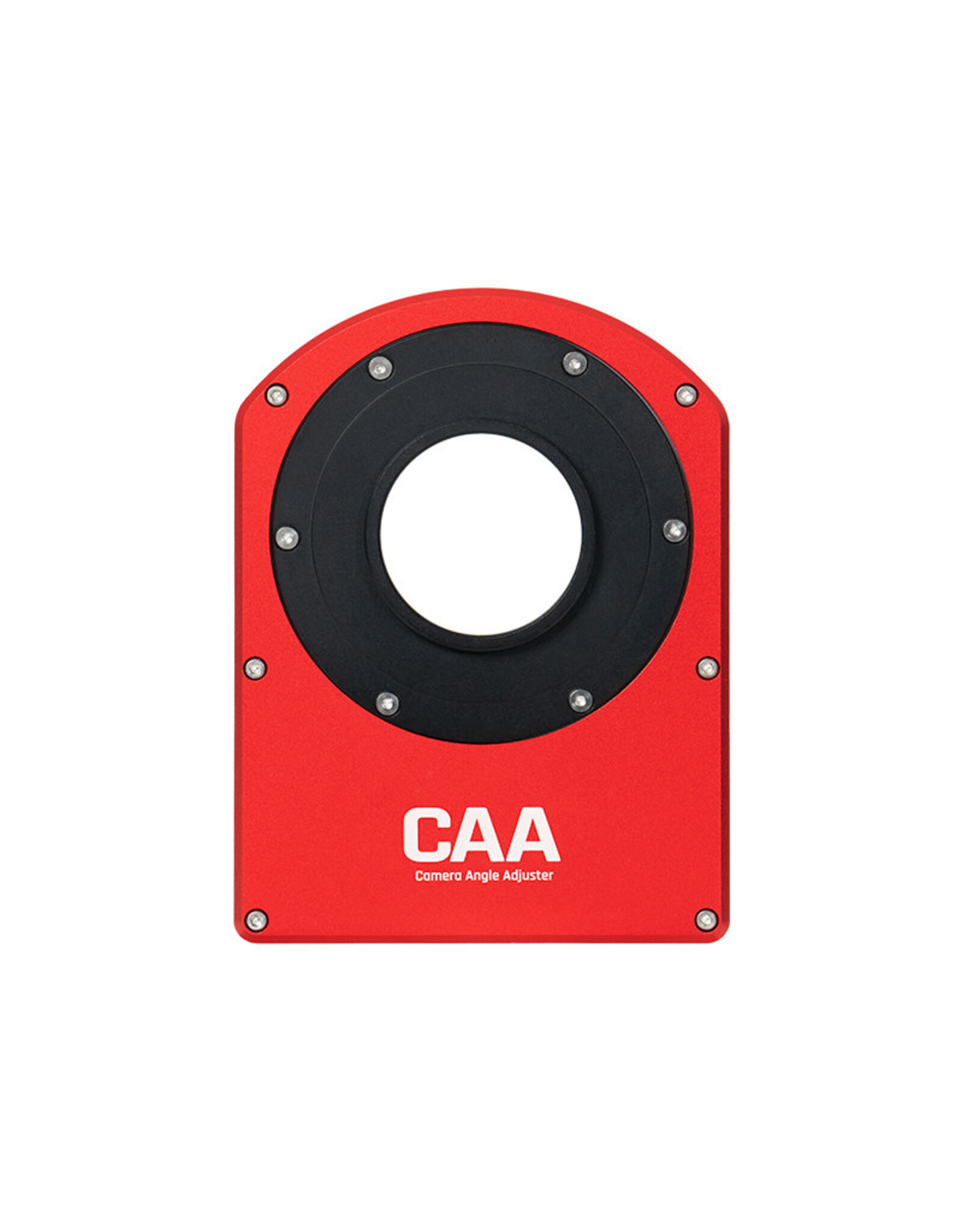

ZWO Camera Angle Adjuster

PRE-ORDER NOW TO BE FIRST IN LINE!

Precision Camera Rotation at Your Fingertips

Easily align celestial objects in your camera’s field of view and capture the perfect frame with the Camera Angle Adjuster (CAA) from ZWO. Designed to integrate smoothly into your imaging setup, this tool allows for quick and accurate angle adjustments, enabling you to craft stunning astrophotographs with ease.

Adjusting your camera angle is often essential when framing deep-sky objects, especially if you aim to preserve resolution and minimize post-processing cropping. With the ZWO Camera Angle Adjuster, you gain precise, electronic control over your camera's rotation. Positioned between your telescope and imaging gear, this innovative accessory offers angle adjustments in precise 0.02° increments—far more accurate and convenient than manual rotators.

The CAA connects via USB-C and is fully compatible with popular software platforms, including ASCOM and ZWO’s ASIAir ecosystem, allowing seamless integration with your existing setup. For those who prefer hands-on control, it also works with the ZWO EAF Hand Controller, offering a refined manual experience with greater precision.

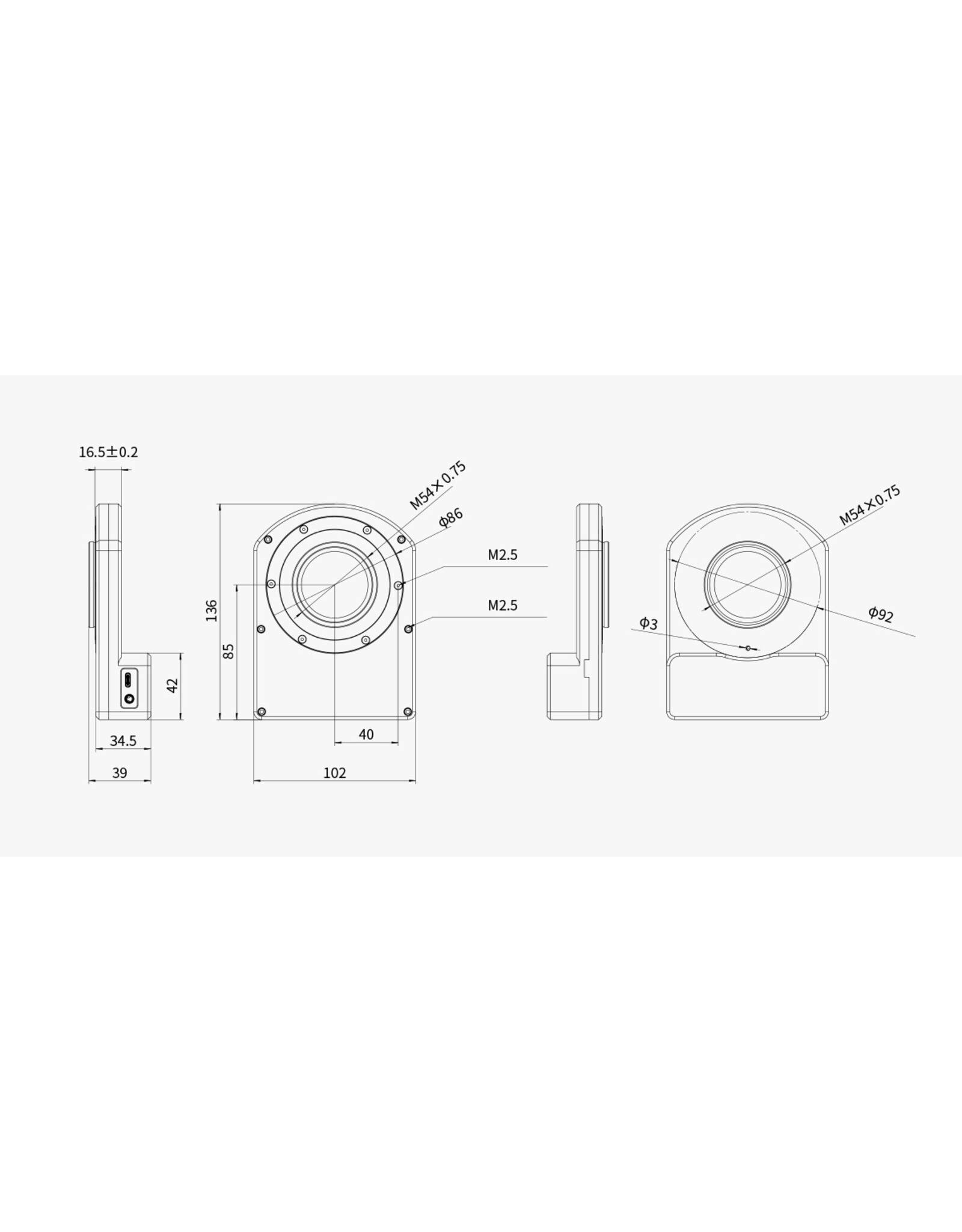

Integrating the CAA into your imaging train is straightforward. It features an M54 telescope-side connection and includes M54 and M48 adapters for compatibility with a wide range of imaging equipment. Its compact 16.5 mm backspacing ensures it fits seamlessly with most spacers and filter systems. With a 48 mm clear aperture, the CAA supports cameras up to full-frame sensors, making it an excellent match for ZWO’s ASI2600 Duo and Air models.

If you're looking to enhance your astrophotography workflow with a versatile, precision rotation tool, the ZWO Camera Angle Adjuster is a reliable choice to elevate your imaging experience.

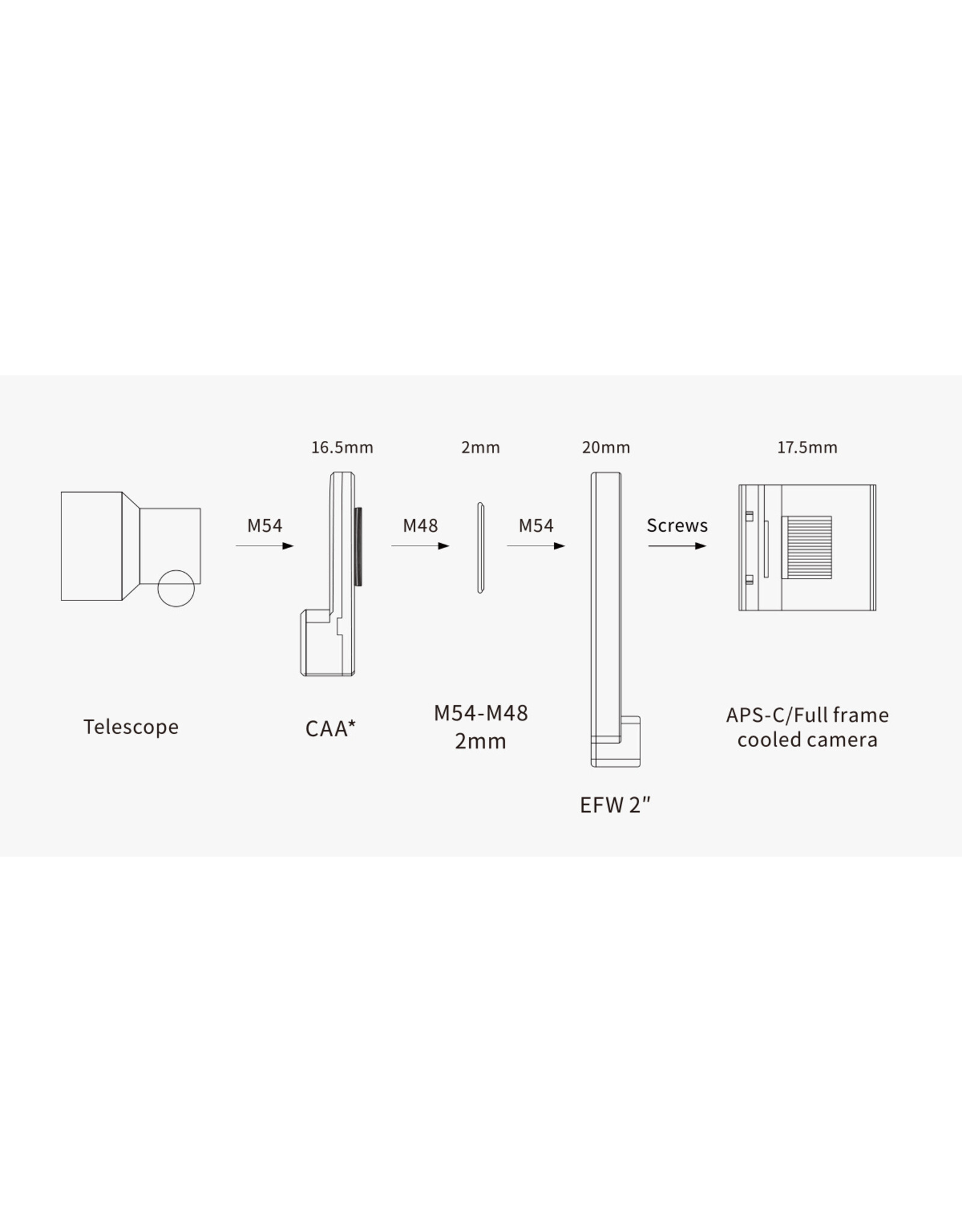

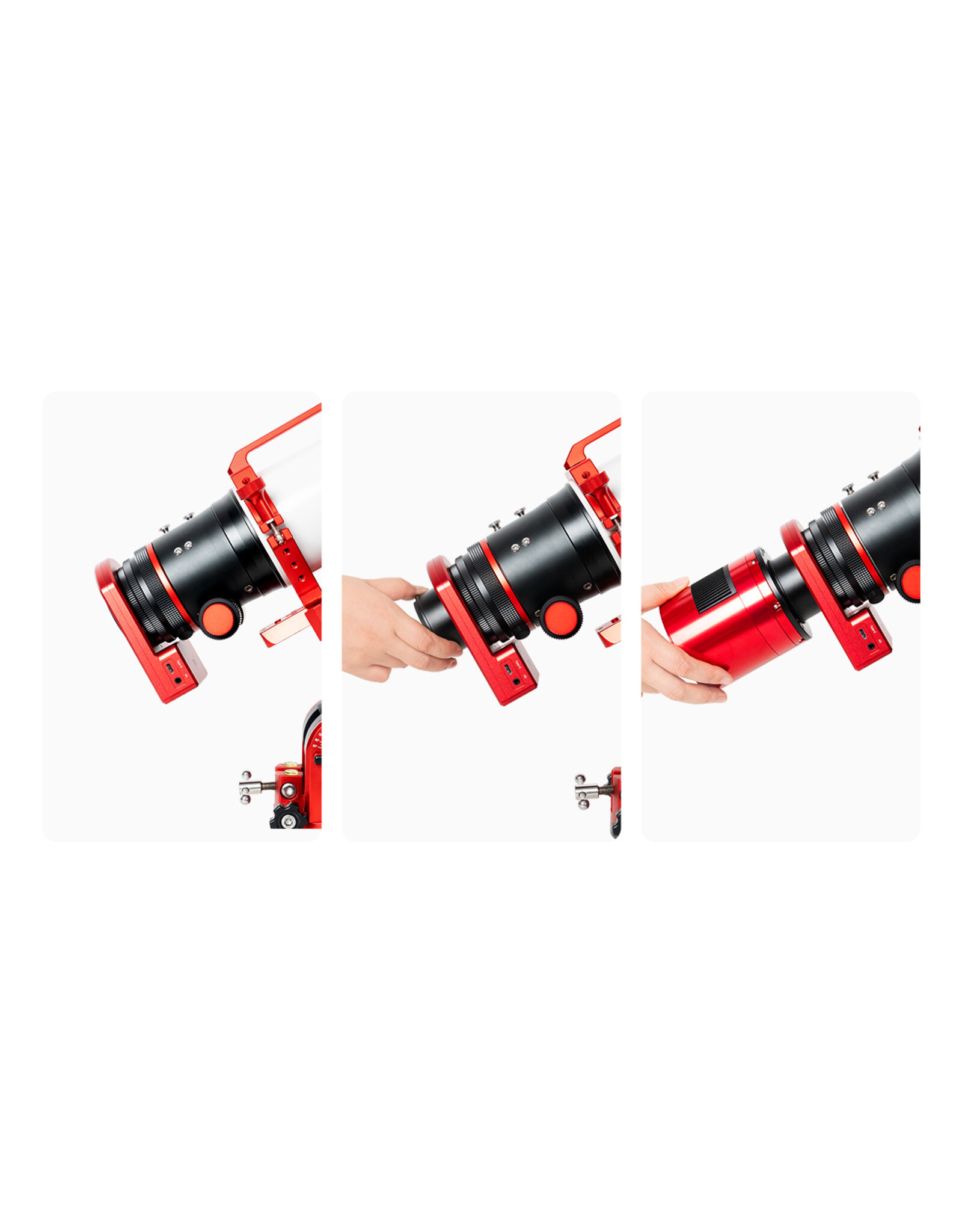

Installing the ZWO Camera Angle Adjuster (CAA)

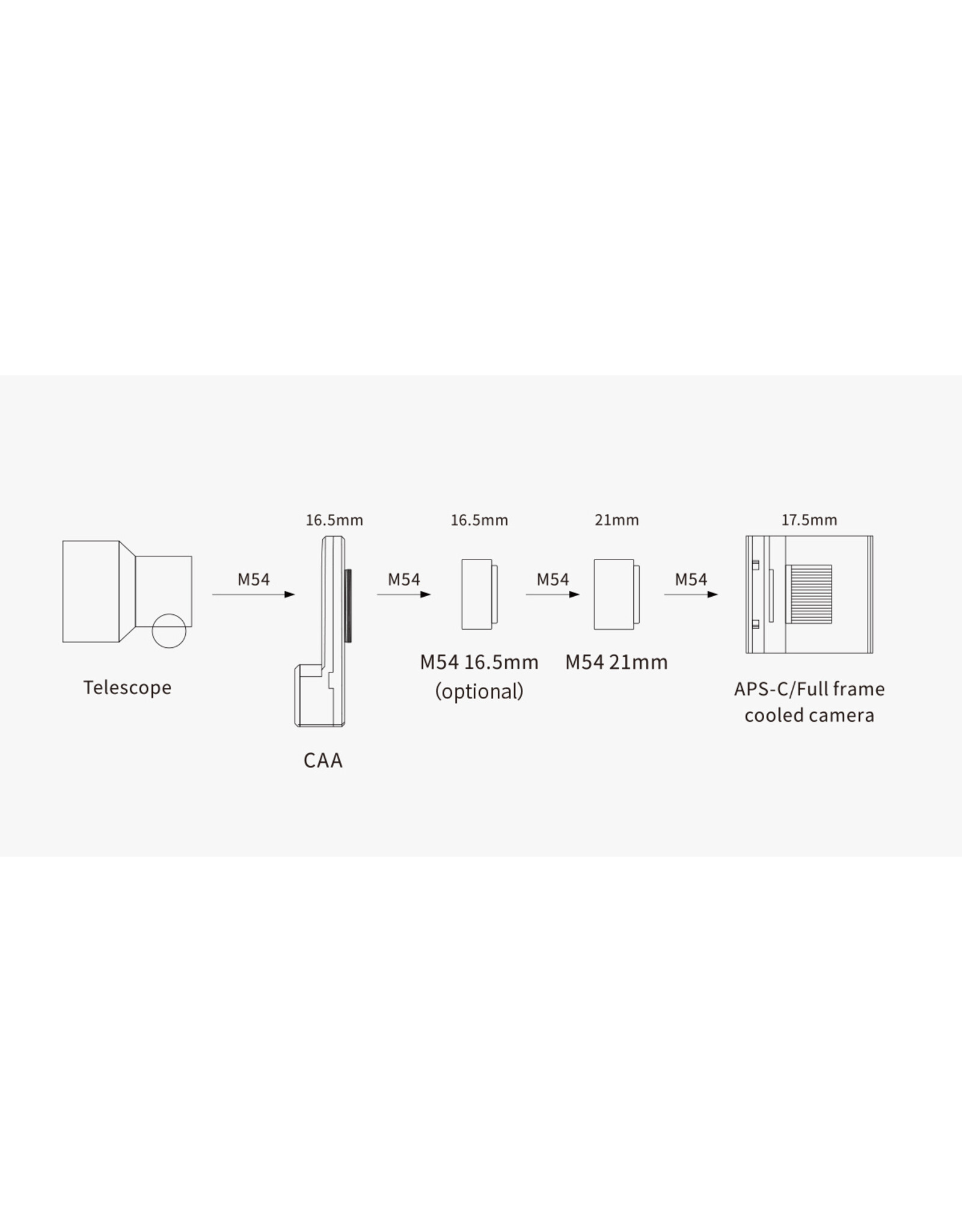

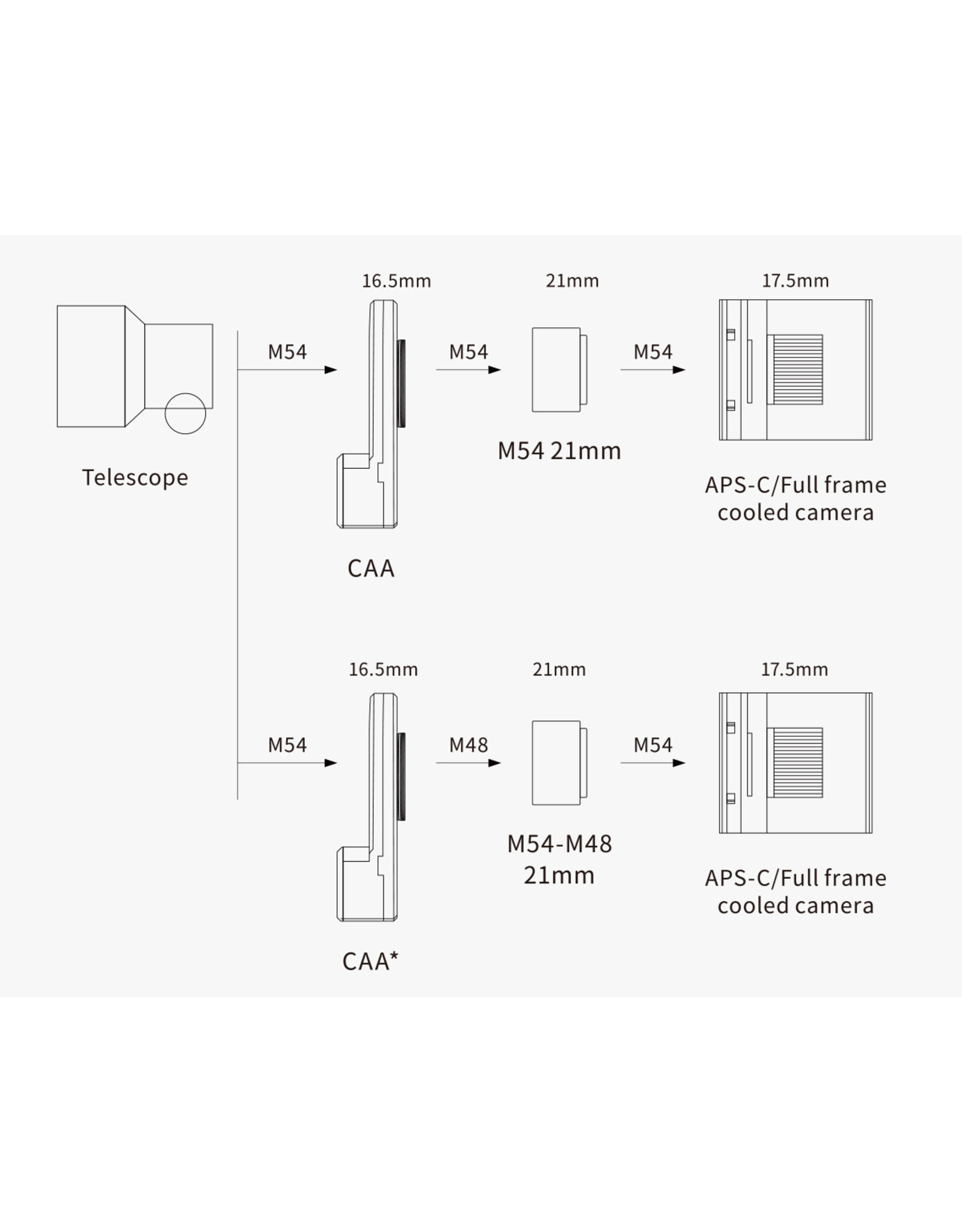

The ZWO Camera Angle Adjuster (CAA) is designed with a 16.5 mm backfocus, allowing it to seamlessly integrate with many standard ZWO spacers and accessories. For most ZWO configurations, no additional spacers or adapters are required, making installation straightforward.

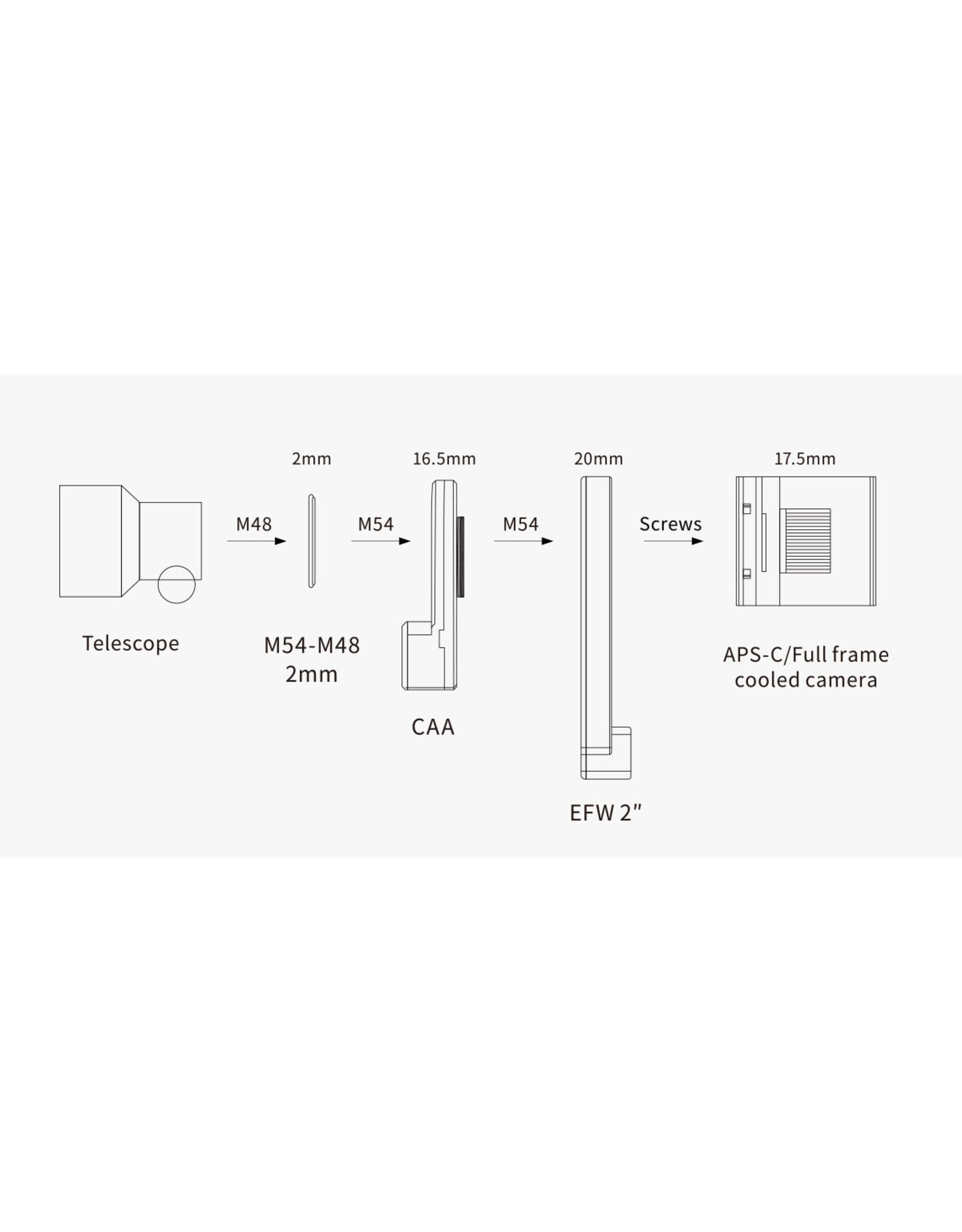

However, if you are using an M48 telescope and are not incorporating a ZWO filter wheel or the ZWO Gen 2 M54 x 0.75 Filter Drawer for 2" Filters, you will need an M48-to-M54 adapter that does not add backfocus. This ensures your imaging train achieves the standard 55 mm backfocus required for optimal performance.

For telescopes with more lenient spacing requirements, the ZWO M48F-to-M54M adapter ring is a practical solution, simplifying setup while maintaining compatibility with your equipment.

By following these guidelines, you can easily integrate the CAA into your imaging train and enjoy precise camera angle adjustments for your astrophotography needs.

Precision at Your Fingertips

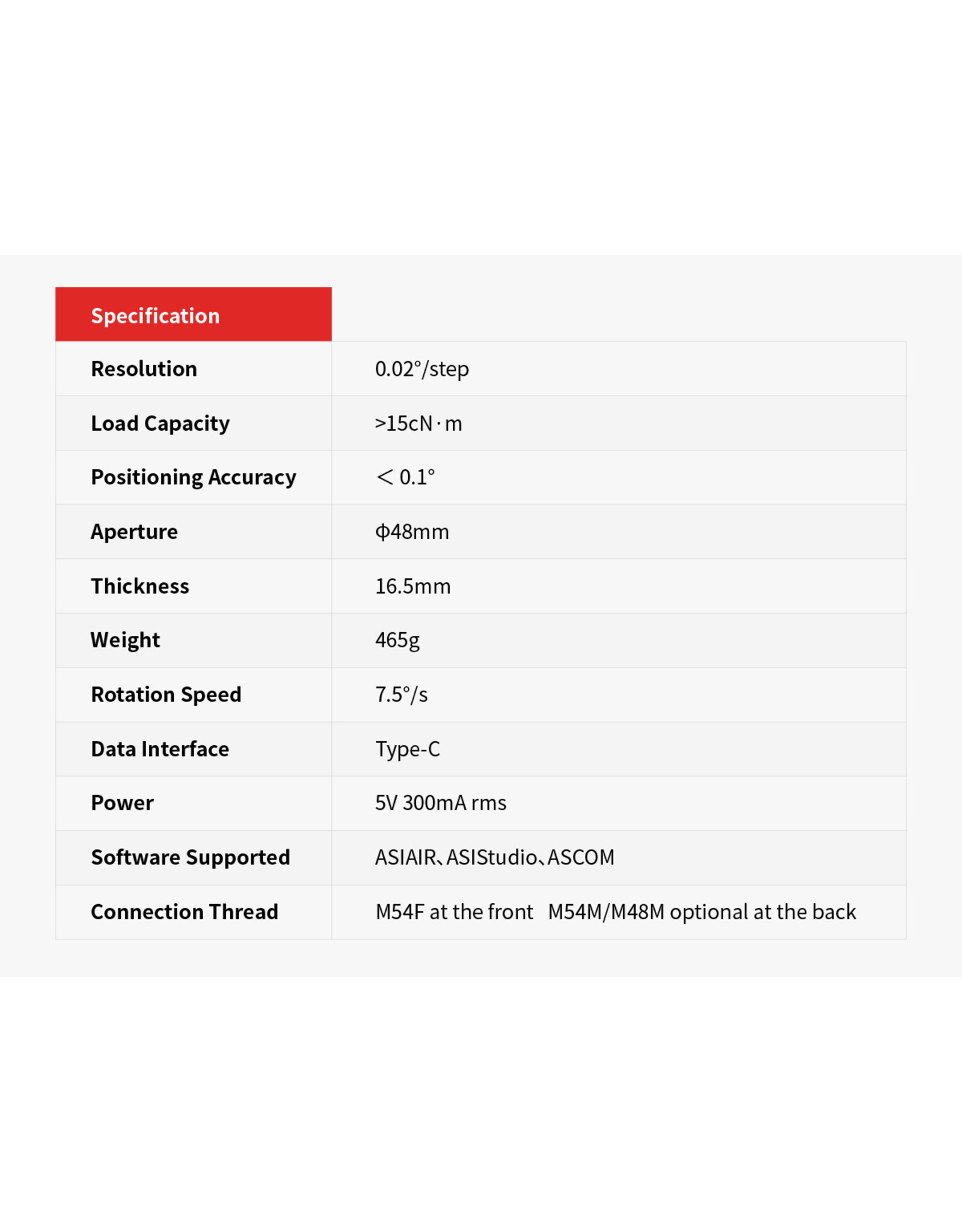

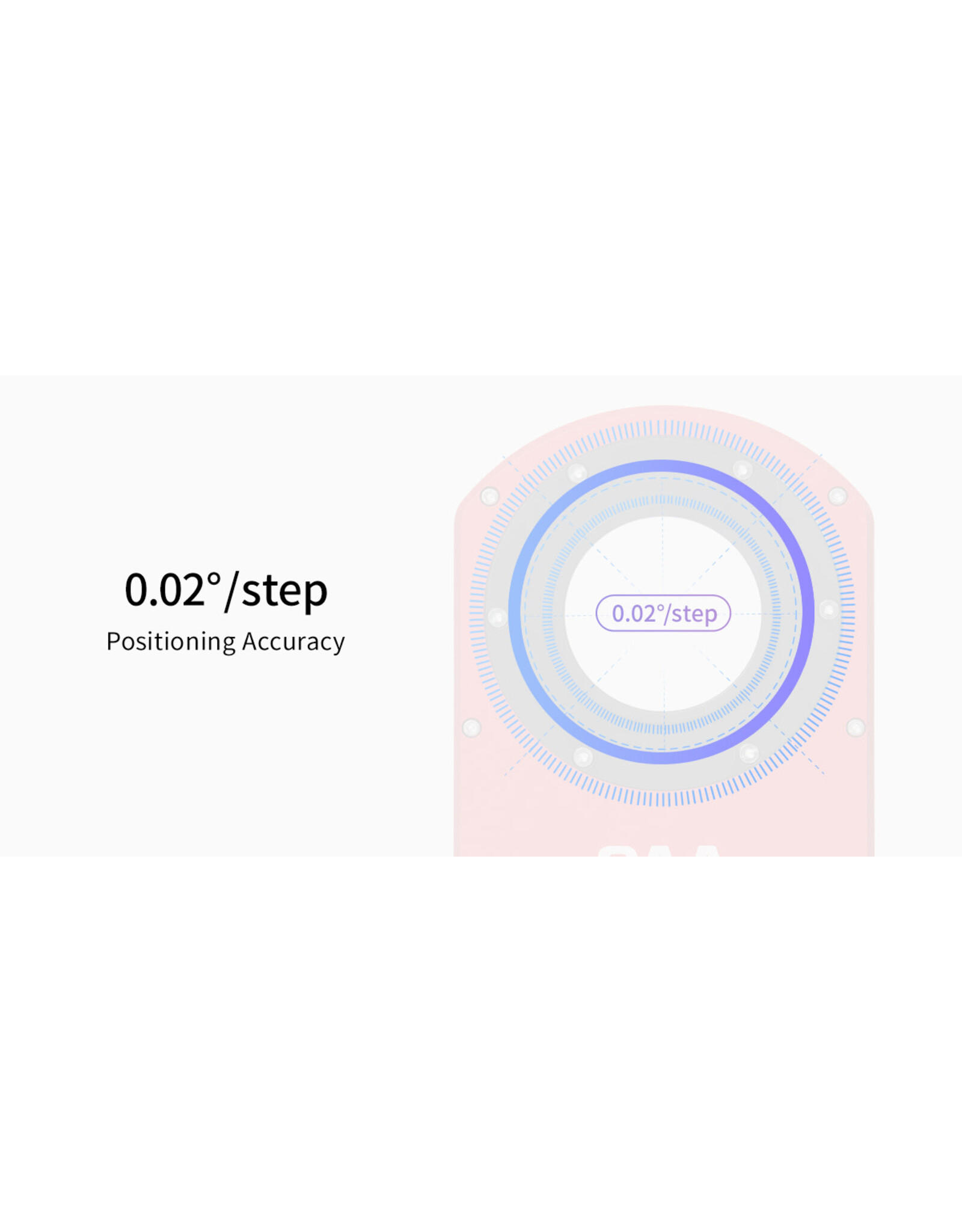

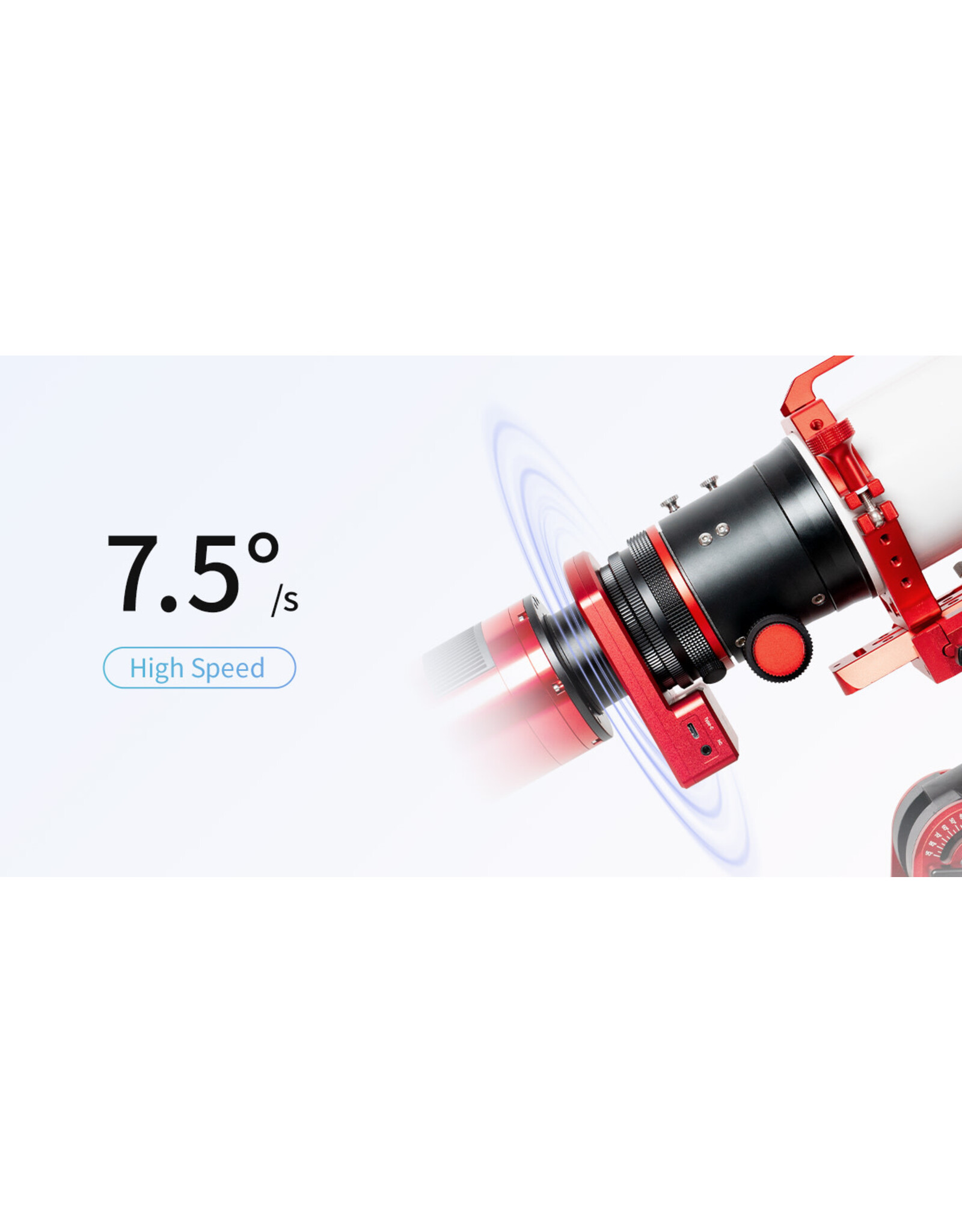

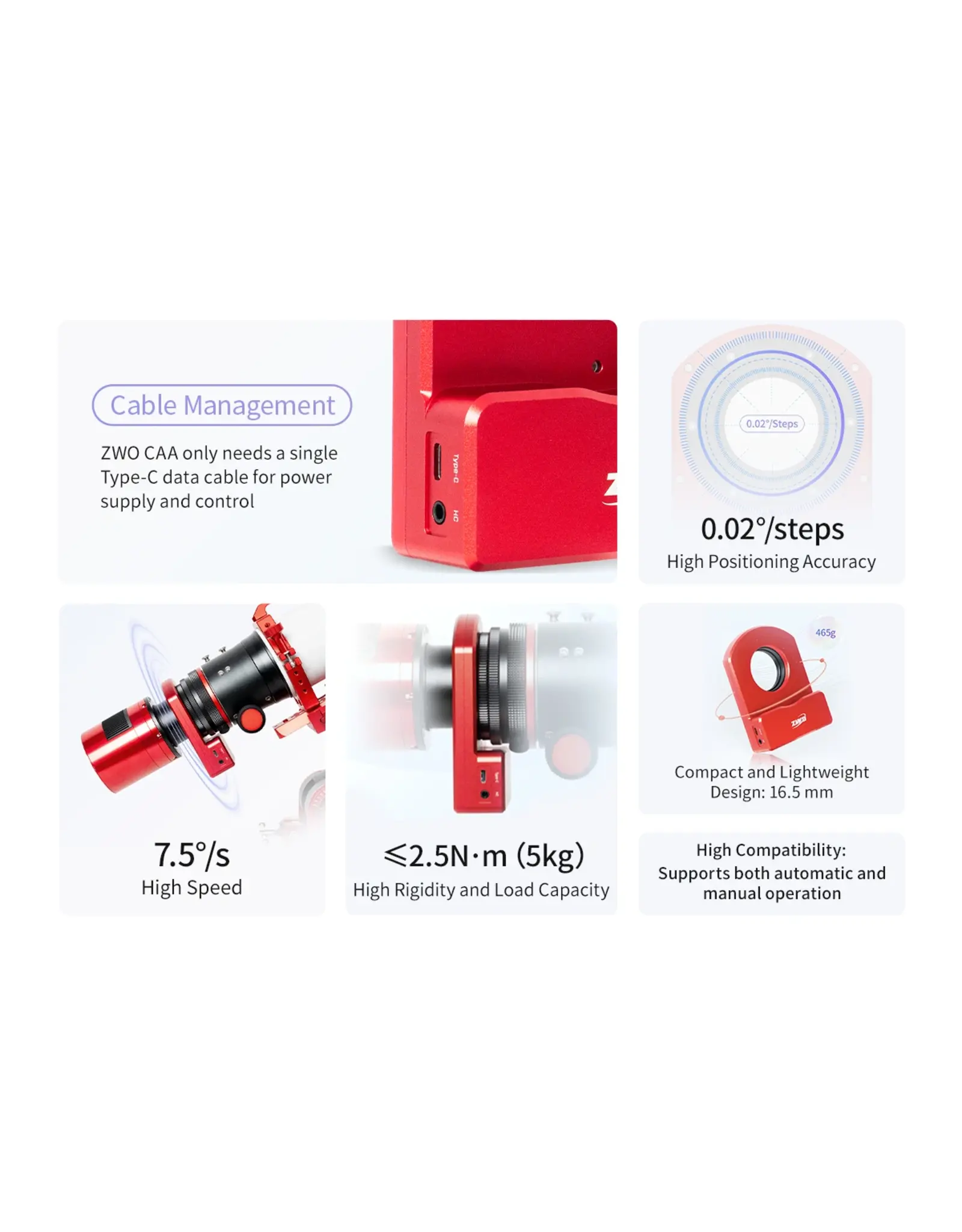

Whether you need broad or subtle adjustments, the CAA delivers. With a rotation speed of 7.5°/s, your camera can pivot 180° in under 30 seconds, letting you achieve your ideal frame in no time. The CAA ensures high accuracy with <0.1° deviation and an ultra-fine resolution of 0.02° per step, aligning perfectly with inputs from your digital planetarium software. This level of precision is compatible even with demanding setups, including ZWO’s ASI461MM Pro medium-format camera paired with a 7-Position 50 mm Electronic Filter Wheel. With its robust build and reliable electronic control, the CAA ensures you capture the perfect frame night after night.

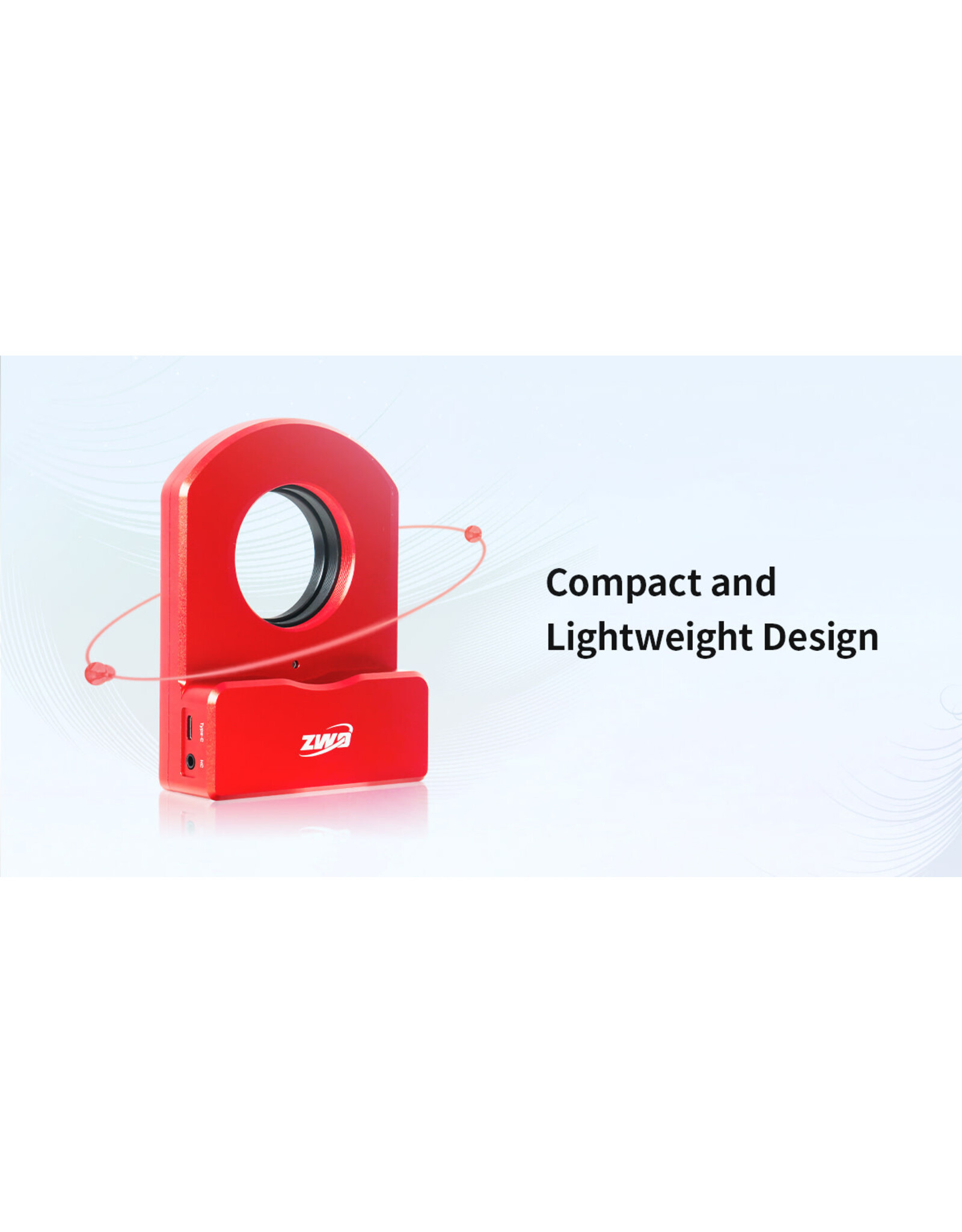

Streamlined Design for Easy Integration

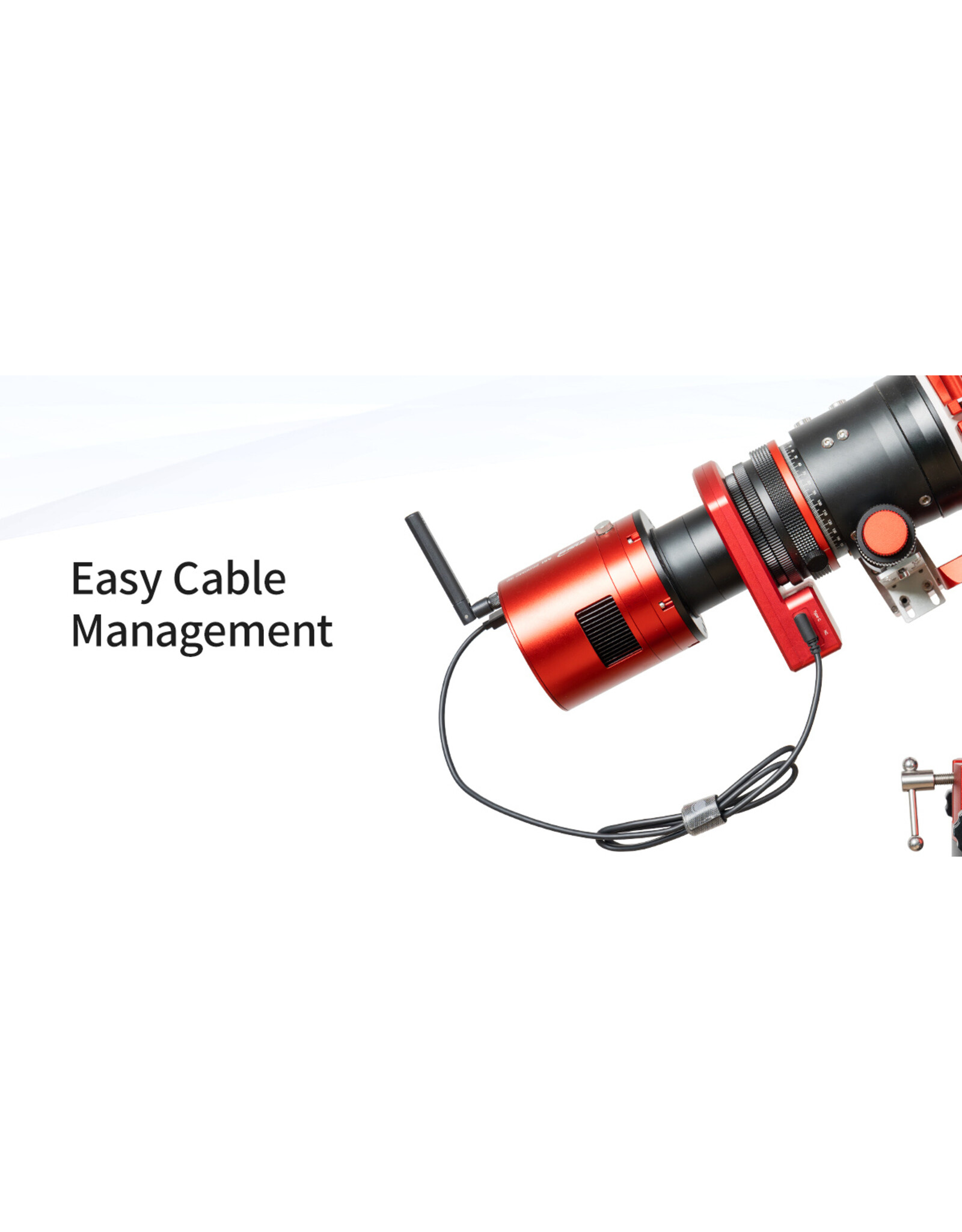

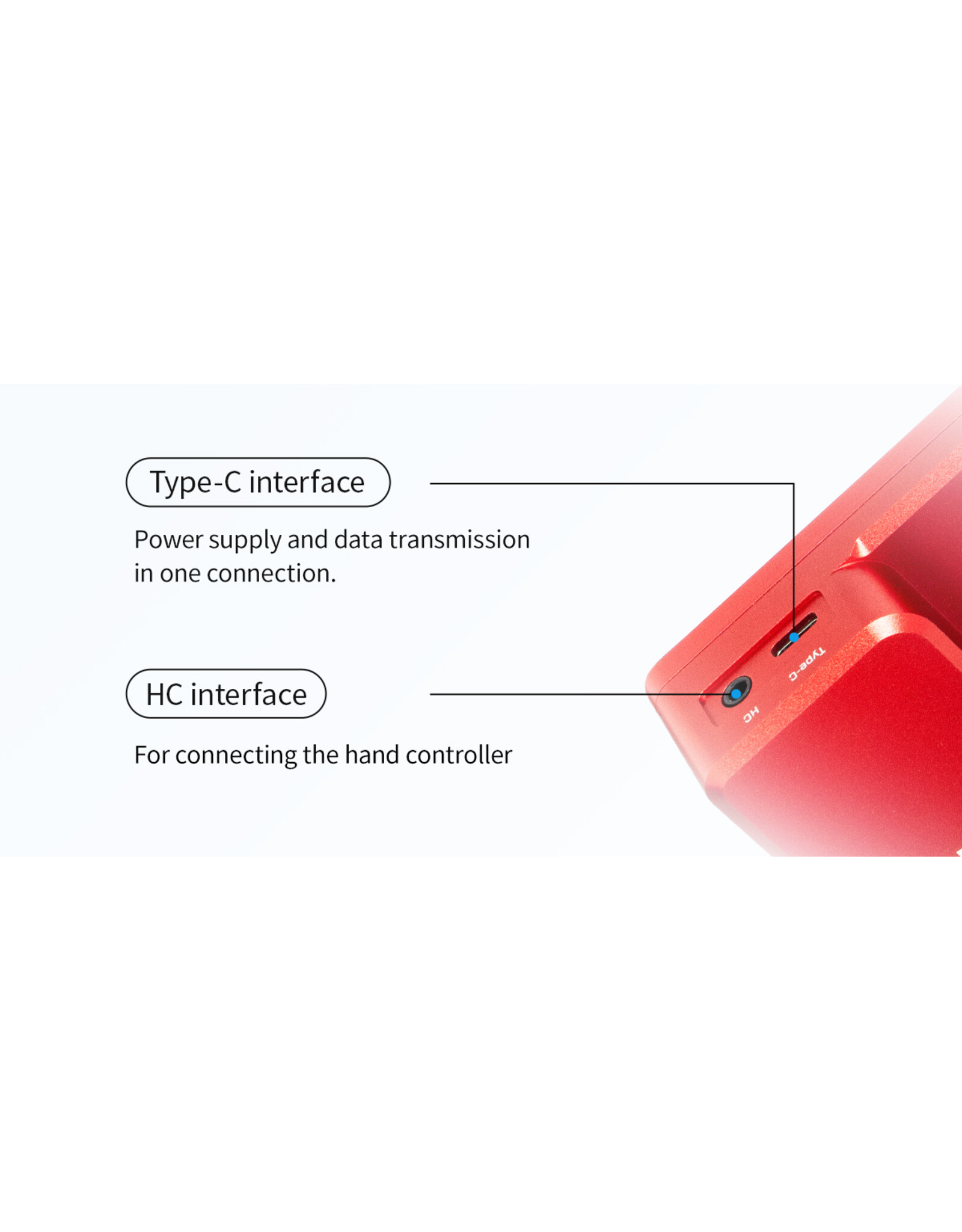

The CAA features a compact and efficient design that seamlessly fits into your imaging train. It connects via a USB-C port, using the included USB-C to USB-A cable for hassle-free integration with your telescope-mounted control device or external systems. For manual control, the CAA includes a 3.5 mm input jack compatible with ZWO’s EAF Hand Controller (sold separately), enabling precise manual adjustments. To simplify installation or removal, especially with tight threaded connections, ZWO has equipped the CAA with a locking mechanism. Using the included 1.5 mm hex wrench, you can secure the connections for added stability.

Broad Software Compatibility

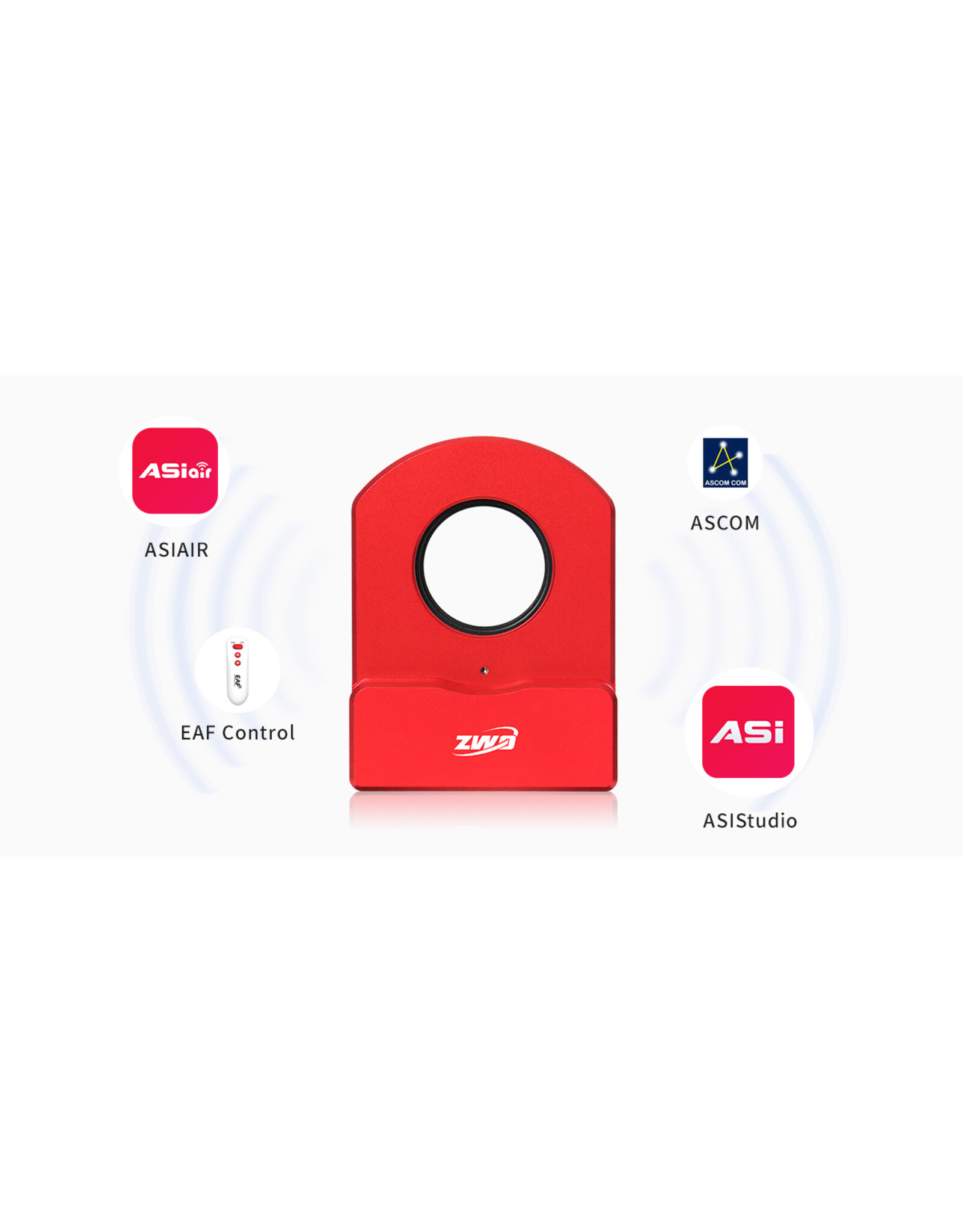

Managing your camera’s angle through various control platforms is a breeze. For laptop and mini-PC users, the CAA supports ASCOM, ensuring compatibility with a wide range of Windows-based astronomy software. It also integrates seamlessly with ZWO’s ASIStudio suite, providing a native, free option for direct communication with the CAA. If you’re using ZWO’s ASIAir platform, the CAA expands your system’s capabilities with wireless control, making it a versatile addition to your imaging workflow.

With its precision, ease of use, and flexible compatibility, the ZWO Camera Angle Adjuster is an indispensable tool for astrophotographers aiming to capture their vision with pinpoint accuracy.
