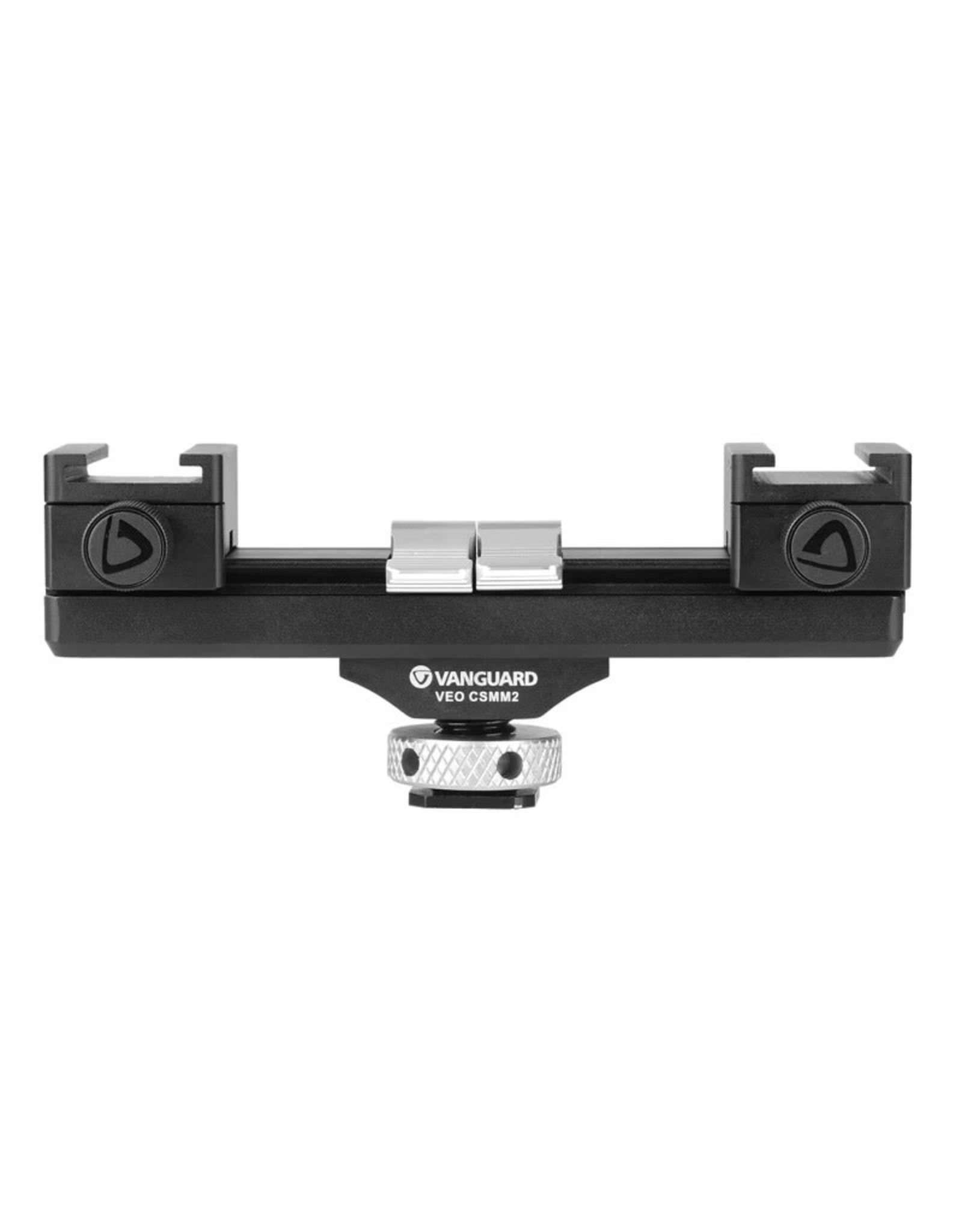

VaNGUARD VEO CSMM2 DOUBLE COLD SHOE MOUNT

The VEO CSMM2 Expandable Double Cold Shoe Mount allows you to attach two accessories with a cold shoe mount base to the hot shoe mount on your camera.

• Fits any camera hot shoe mount
• Attach two accessories with a cold shoe mount base, such as VEO CSM or VEO CSM DLX, onto the top plate
• 1/4" thread hole on the front of each cold shoe mount for a suitable Tripod Support Arm
• Extends up to 8.2" wide
• Bottom rotating wheel ensures a tight grip with the hot shoe mount
• 4.7" wide x 2.2" tall
• 1/4" thread hole on base
• CNC-machined aluminium

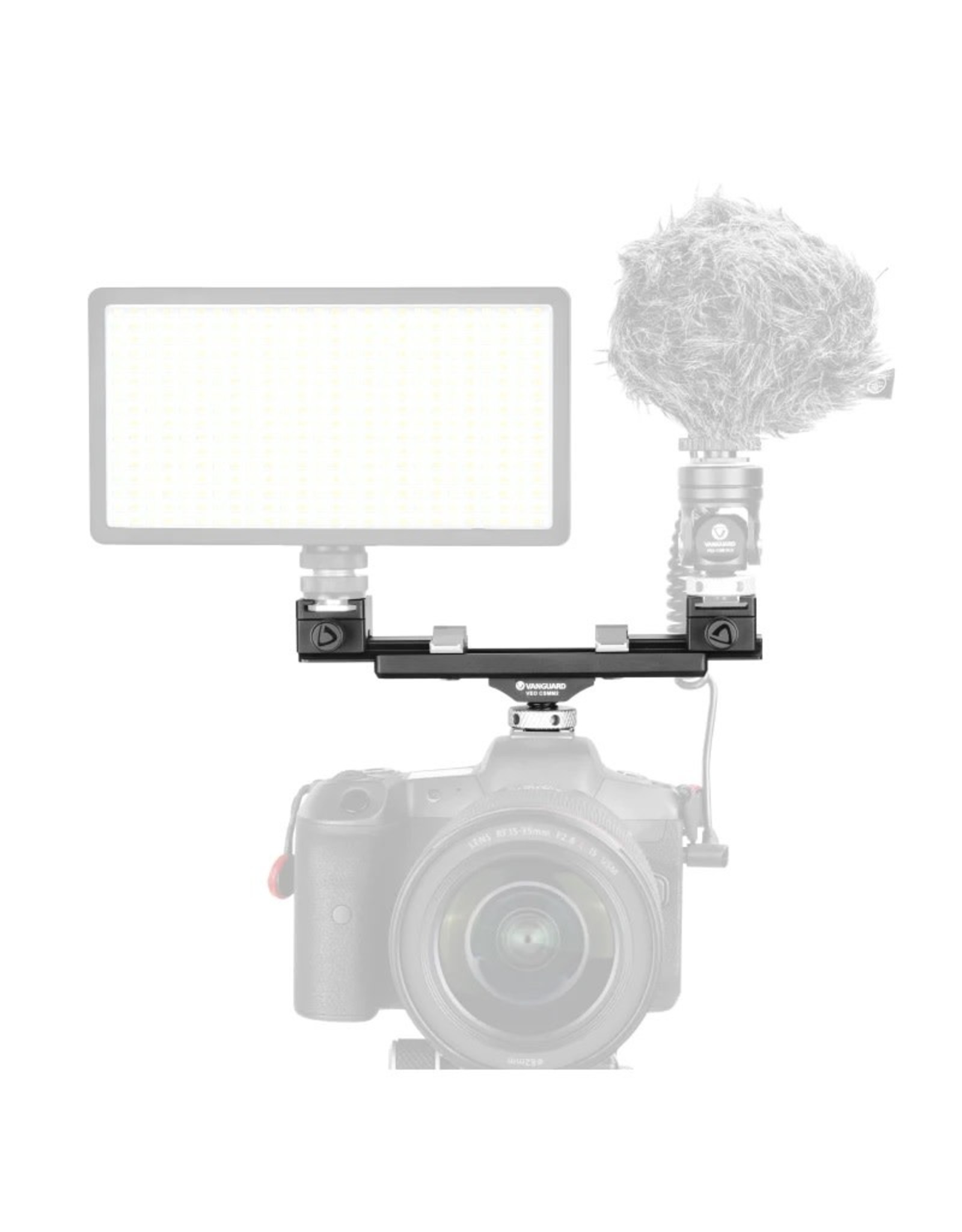

The VEO CSMM2  is allows you to mount two accessories with a cold shoe mount base to a camera hot shoe mount, and adjust the width up to 8.2" wide.

If your accessory base needs a 1/4" thread, you can use the VEO CSM or VEO CSM DLX to attach it.

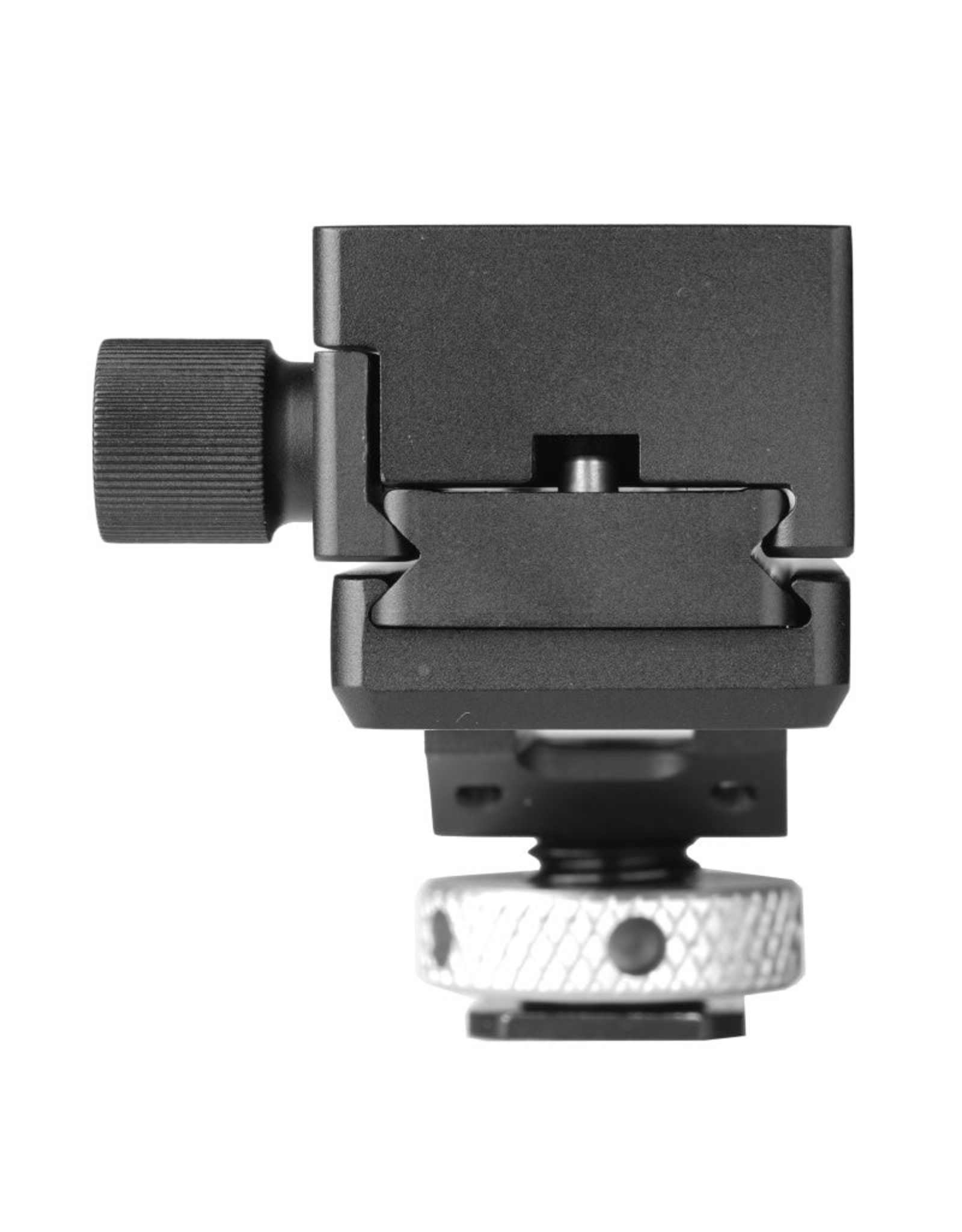

To attach to your camera, simply slot into the hot shoe mount and tighten the lower disc, tightening with the Allen key provided for the most solid grip possible.

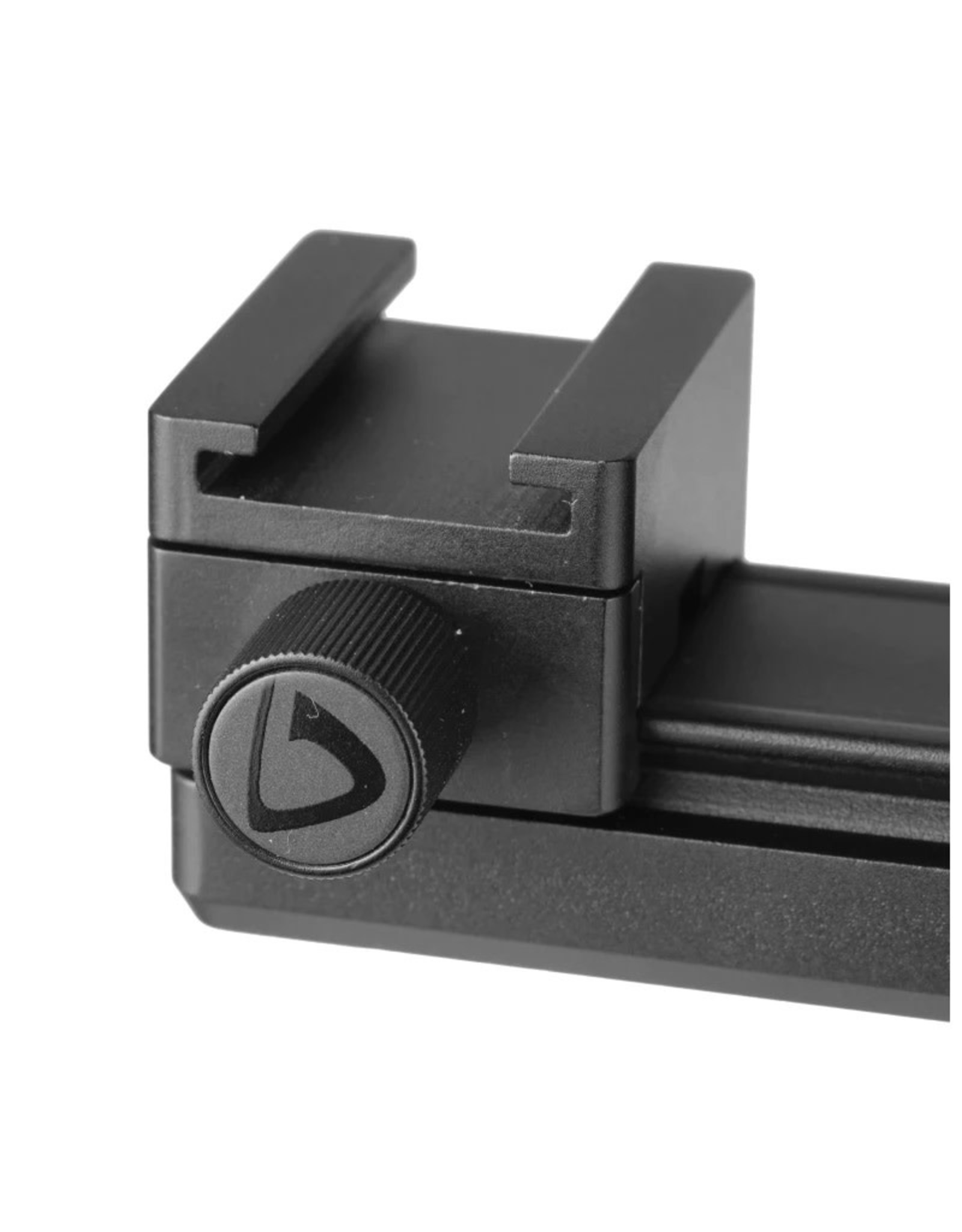

To attach the it to your accessory, simply slot the accessory into the chosen cold shoe mount and tighten the locking knob on the VEO CSMM2.

You can then adjust the width of the cold shoe mount bar in or out by up to 13.5cm for optimal position or balance. Simply lift the flip lock to release the plate, adjust to your chosen position, and flip the lock back down to secure it.  At the end of each bar is a small protruding button that stops the cold show mounts falling off the end.

On the front of each cold shoe mount is a 1/4" thread, allowing you to attach any suitable support arm, such as the Vanguard Tripod Support Arms, to add further accessories.

On the base there is also a 1/4" thread, allowing it to be attached to any suitable support arm instead of your camera hot shoe mount.
