Tele vue TV60 APO Telescope OTA
| Article number: | TVO-2460 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to us |
- The Televue TV60 APO Doublet Refractor is 14.2" (360mm) focal length at a focal ratio of f/6 that measures only 10" long and weighs only 3 pounds.
- Two-stage 1.25" focuser with quick-focus drawtube plus helical fine-focus application.
- The Televue TV60 APO Doublet Refractor has a maximum true field of 4.3º.
- Accepts in-line Porro prism and 45º erectors, or 60º and 90º diagonals.
- The Televue TV60 APO Refractor has extreme quality optics that make it a superior choice as a telephoto lens, spotting scope or small telescope.
- Anodized all-metal construction is precision machined for the perfect fit and finish.

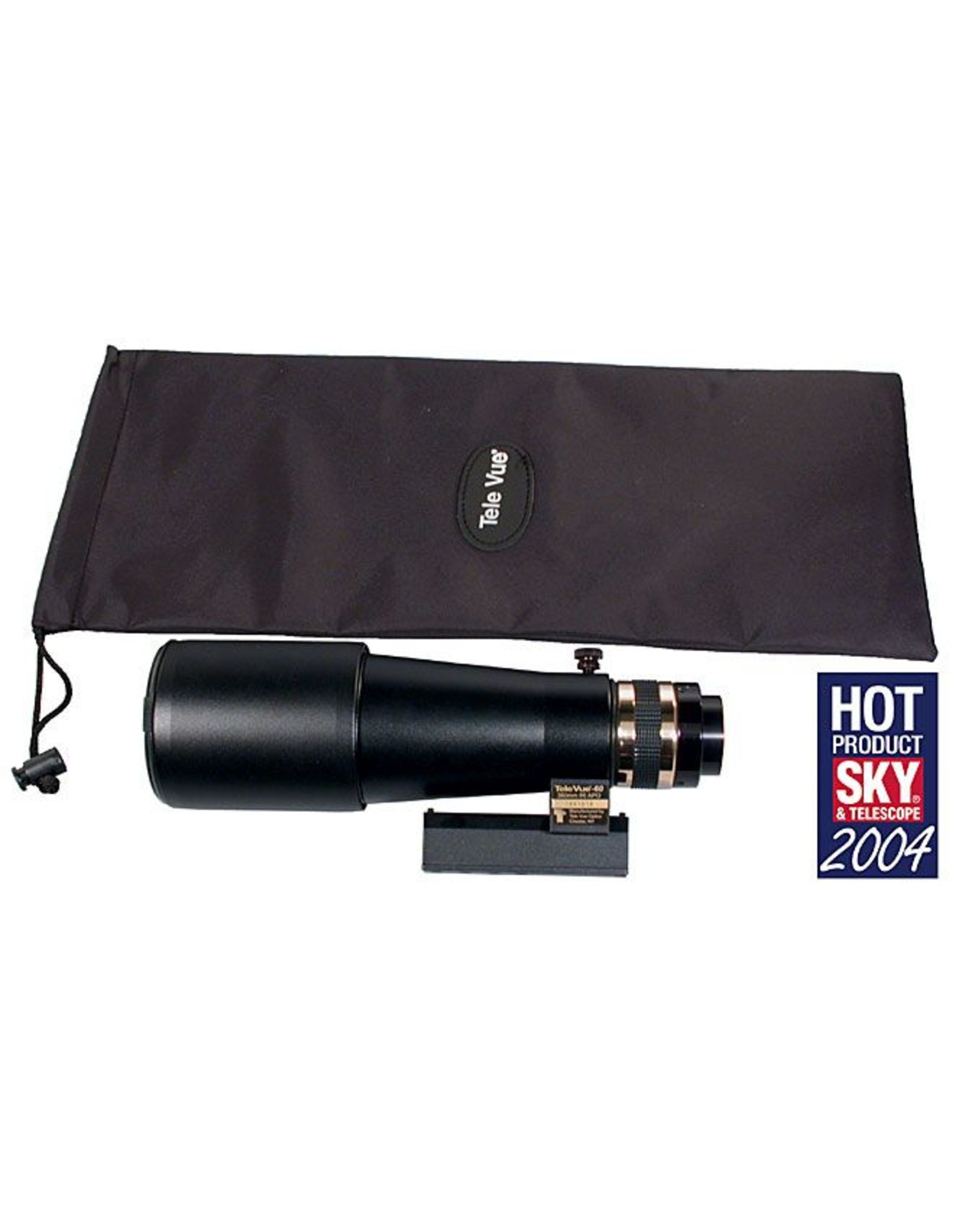

- The Televue TV60 APO Doublet Refractor includes a sliding captive dew shield, adjustable dovetail balancing bar and protective pouch.
60mm, f/6, APO (Doublet) Refractor. This high performance, super-compact APO doublet, is a super-finder, day/night scope with great telephoto and imaging capability for digital cameras.
4.3° / 150x (Max. Visual Field / Max. Rec. Power)
TV-60 image
Pale Male — Central Park Hawk, NY (RikDavis)
Pale Male — Central Park Hawk, NY (RikDavis)
“Lives up to all your advertisements. Difficult to believe such images can be seen through a 60mm.”
—D.R., UK
Great for on-the-go targets, the 2-stage 1¼" focuser employs a quick-focus drawtube and fine-focus helical thread. Focuser accepts either 45° erector, 60° and 90° diagonals to suit any terrestrial or astronomical target.
Adjustable dovetail balancing bar fits all camera tripods, Tele Vue mounts and mounting bracket for SCTs (see Accessories). Exquisitely machined and anodized all-metal construction.
Accessorized Telescopes on Tele Vue Mounts
TV-60 telescope with Qwik-Point red-dot finder and 6mm Delos eyepiece. Tele Pod Mount with SkyTour computer and Eyepiece Caddy set.
With 90° diag. & Air Chair.
With 90° diag.
With 60° diag. & Air Chair
With 90° diag.
Specifications
| Type | APO (Doublet) Refractor (Elements/Groups: 2/1) |
| Objective (mm) | 60 |
| Focal Length (mm) | 360 |
| Focal Ratio (f/#) | 6 |
| Length OTA (inch) | 10 |
| Length with diagonal (inch) | 12 (with 1¼-inch diagonal) |
| Weight OTA/Std. Config (lbs) | 3 / 3.3 |
| Drawtube/Focuser | 1¼-inch, helical |
| Maximum Visual Field (deg.) | 4.3 (with 1¼-inch 32mm Plössl) |
| Maximum Recommended Power (x) | 150 |
Included Accessories
| TV - 60 OTA |
|
