William Optics Slide-base UniGuide 32mm Scope (Specify Color)
| Article number: | M-G32PB-XX |
| Availability: | In stock |
| Delivery time: | In Stock! |

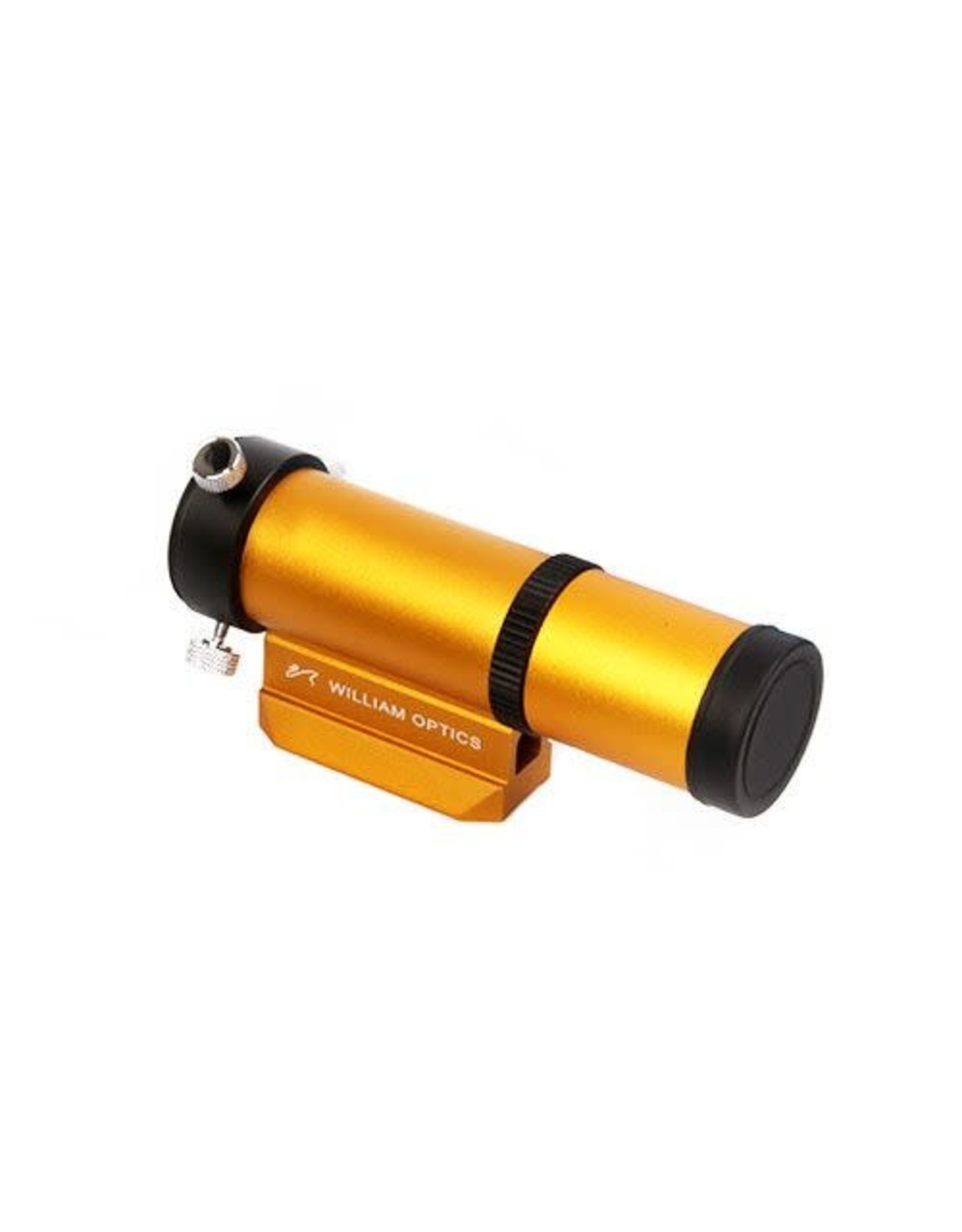

The William Optics 32 mm UniGuide guide scope is a great tool to add to your telescope set up! The guiding scope features a Vixen-style slide-base, which allows for a perfect fit onto the William Optics telescopes that have the saddle carry handle and the Cat Handle bar (neither handles are included). The back of the William Optics 32mm UniGuide scope comes with an M42 thread for attaching 1.25" cylindrical-type guide cameras such as QHY, SBIG, and ZWO cameras. Tightening knobs will ensure a stable fit for the attached guiding equipment.
32mm UniGuide Guide Scope Features
- Aperture: 32 mm
- Focal Ratio: f/3.75
- Focal Length: 120 mm
- Weight: 0.529 lb (0.24 kg)
- Guide Camera Thread: M42
- Camera Adapter Size: 1.25"
- Sliding Base: Vixen Style
- Guide Scope Length: 147 mm
- Adjustable Backfocus: 0~25 mm
When it comes to the 32 mm UniGuide Scope's aesthetics, the beautiful gold exterior matches perfectly with other gold William Optics refractors and accessories.

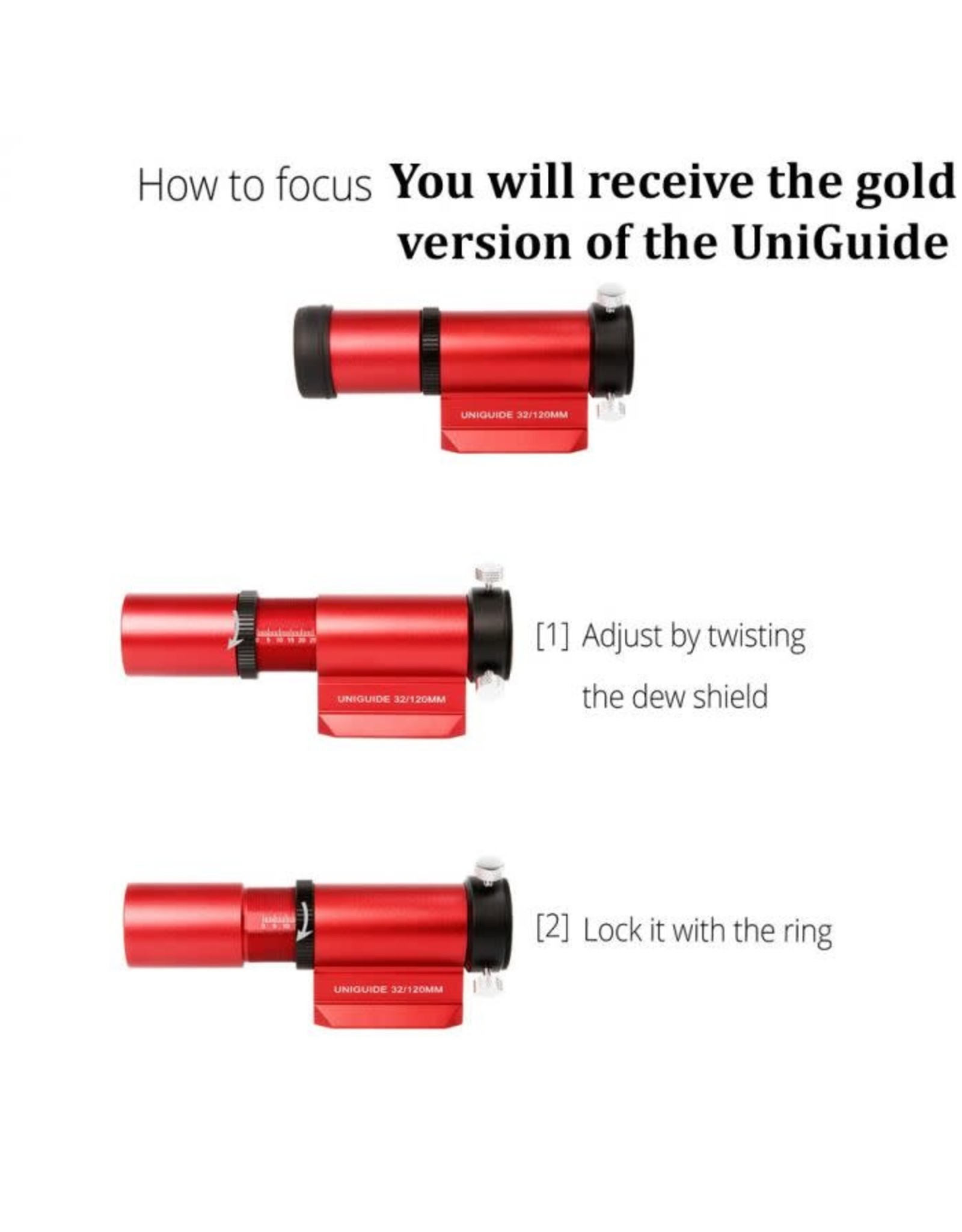

The body of the guide scope comes with an adjustable distance of up to 25 mm. The design of the body even has a subtle focus mechanism! In order to focus the guide scope, you will need to twist the built-in dew shield. Once you have your desired focus, then you can lock it in with the black ring at the base of the dew-shield. The WO UniGuide guide scope has a full length of 147 mm. Of that length, the lens to the back of the guide scope is 105 mm. The Vixen slide-base measures 73 mm in length.
