Pegasus Astro FocusCube Zero (For 6/8/9.25 SCTs) - For Celestron 6"/8"/9.25" SCTs

FocusCube SCT has been replaced by the Focus Cube Zero. Zero allows backlash free movement and is way faster than older motor

Focus fast, reliable and accurate your Celestron SCT telescope by using the “FocusCube Zero“. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small period of time as temperature can affect focal length and modify the optimal focus position. Pegasus FocusCube Zero has been developed to meet all of these requirements.

Designed in high quality with modern electronics, FocusCube can provide digital precise focus control from a PC. Device includes a stepper motor for absolute position focusing. Electronics and stepper motor are enclosed in a compact sized box.

Stepper motor provides high speed, focus accuracy and zero backlash. You only need this device to focus! Attach the FocusCube Zero to your SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!

Easy and repeatable V-Curve focus

A V-Curve is the result of moving the focus of a telescope from an outside focus position into the focus and then further into the same direction out of focus again.
With FocusCube Zero you can easily achieve nearly perfect v-curve lines leading to a sharply focused image.



IMPORTANT NOTE
FocusCube is a standalone device and includes controller functionality.
No physical hand controller is included or required.
DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market.
DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output

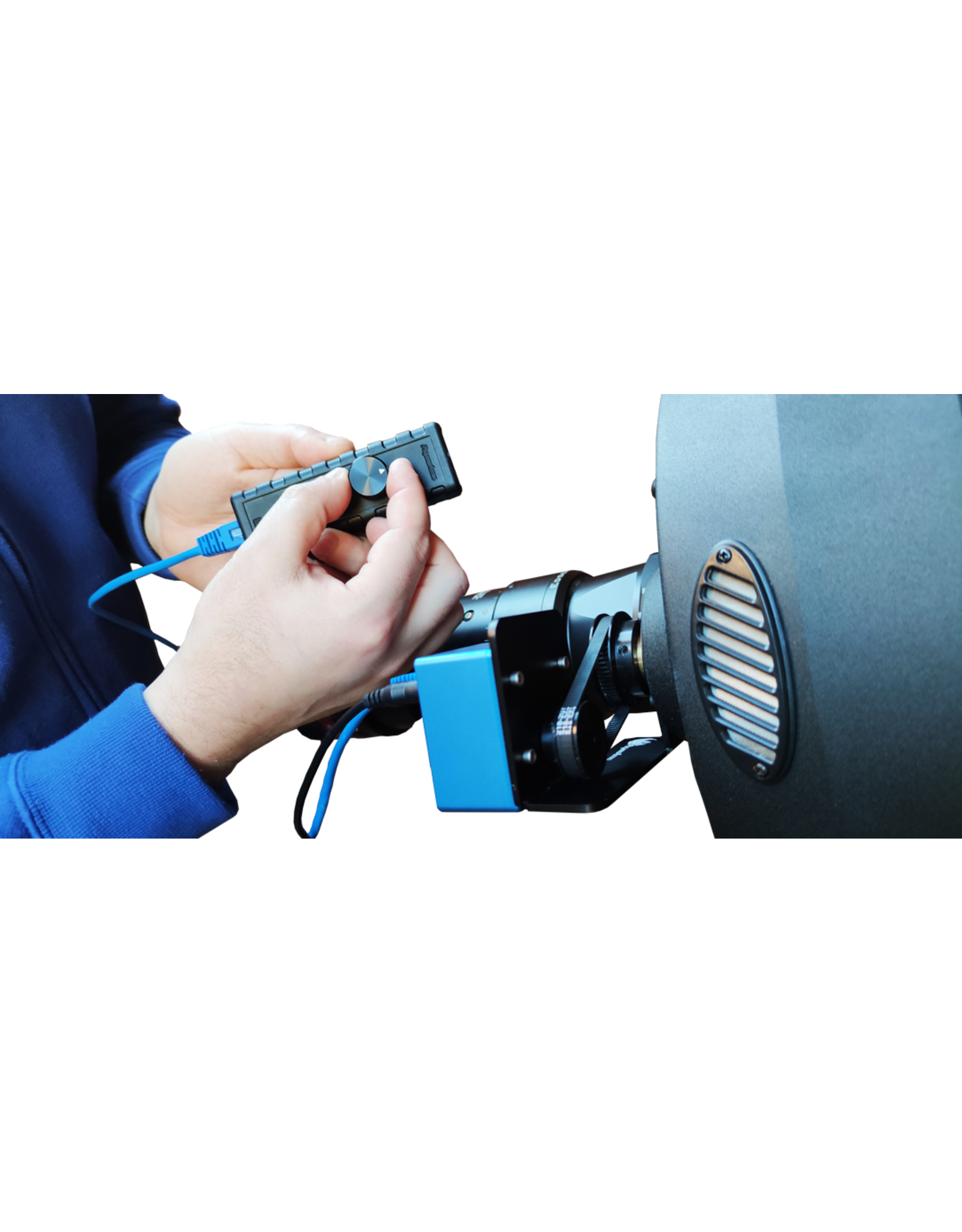

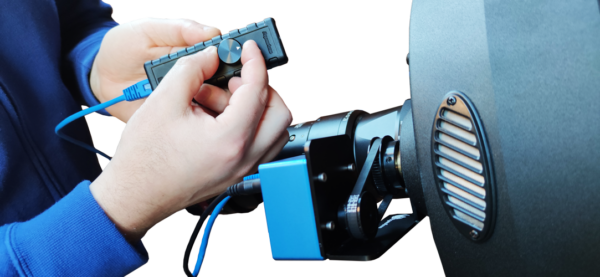

The RJ45 port at the back is only for the hand controller or the included temperature sensor.

Zero backlash stepper motor

Embedded bipolar stepper motor provides a zero backlash movement. Motor is very fast and allows you to quickly move from any focus point to another.

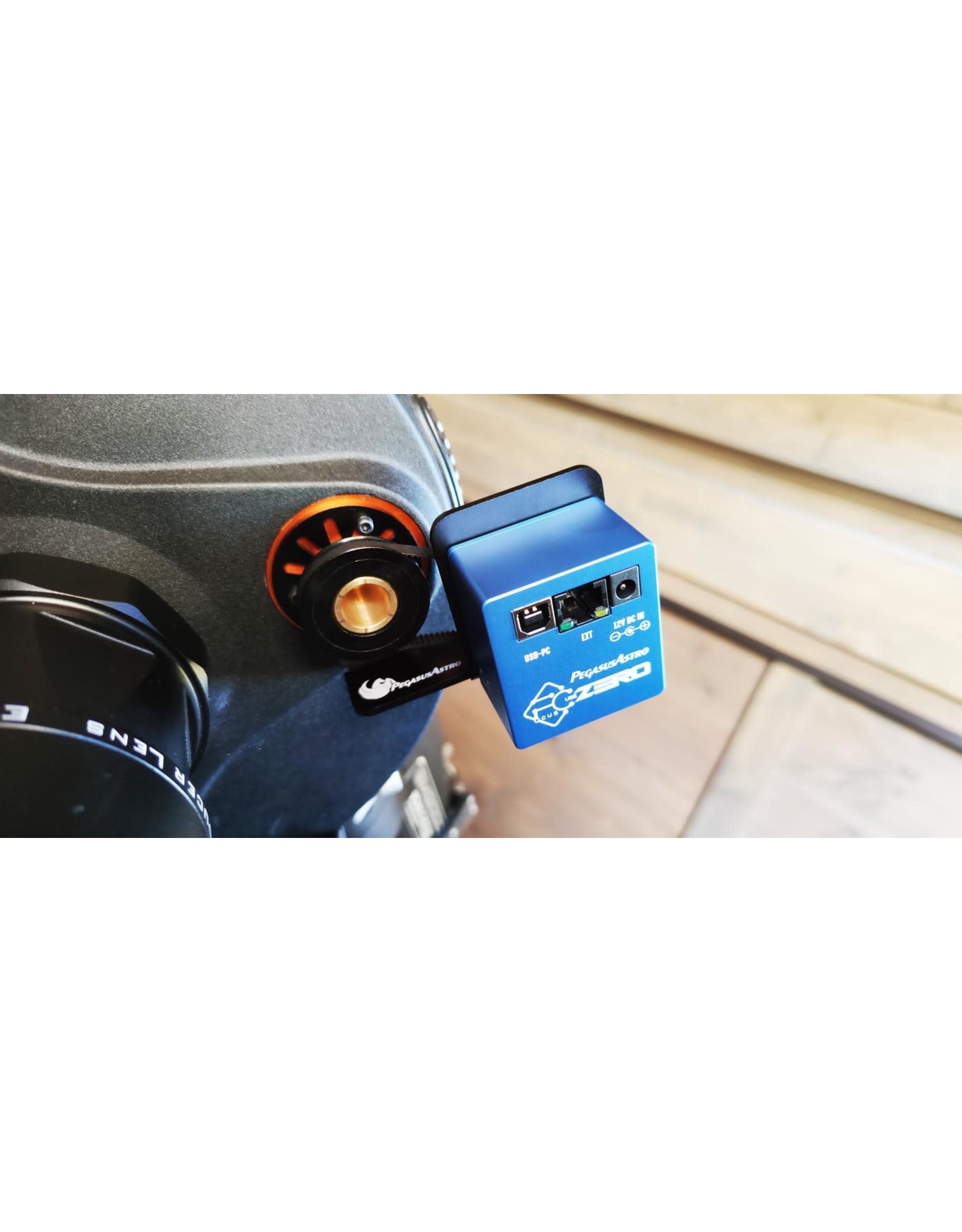

A special shaped black anodised aluminium bracket, hard to bend, can be attached to most of the Celestron SCT telescopes.

We have successfully installed it on:

• Celestron Classic & EdgeHD 6, 8, 9.25 (SKU:PEG-FCZERO-SCT68925)
• Celestron Classic & Edge HD 11 (SKU:PEG-FCZERO-SCT11)
• Celestron Classic & Edge HD 14 (SKU:PEG-FCZERO-SCT14)
• Celestron RASA 8” (SKU: PEG-FCZERO-SCT68925)
• Cellestron RASA 11” (V2 – For V1 you will need Celestron Retrofit Kit) (SKU:PEG-FCZERO-SCT11)
• Celestron RASA 14” (SKU:PEG-FCZERO-SCT14)

Please notice that we provide three different SCT versions.
The difference is in the metal pulley bore diameter & the screw length in the package.
Please make sure you have selected the correct type for your telescope.

Please note that some older SCT series are not compatible with the SCT bracket so contact us with a photo of your telescope focuser if you are not certain that your telescope can accept the SCT bracket.

SCT Bracket was designed to support Celestron SCT Telescopes. Although, we have seen that it perfectly fits on Meade SCT telescopes that have the round focus knob. Please check the image if your Meade Telescope is the same as the photo on the right.

For more information about your Meade compatibility please contact us.

Firmware upgrade support

Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.

Compact size

52 x 58 x 35 mm / Weight 280g

In the box

FocusCube Zero
SCT Bracket (margatita style)
Temperature Sensor (0.6m)
USB type B Cable (1.8m)
Cigarette Lighter Adapter (3A fused)
Two Aluminium Pulleys (60 & 40 teeth) and transmission belt
Four M3x6mm length screws (to attach the enclosure on the bracket)
Three metric screws and washers (to mount the bracket on the SCT)
