iOptron Tri-Pier for GoTo Mounts (Black)
| Article number: | 8034 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Introducing a new concept in mount support...

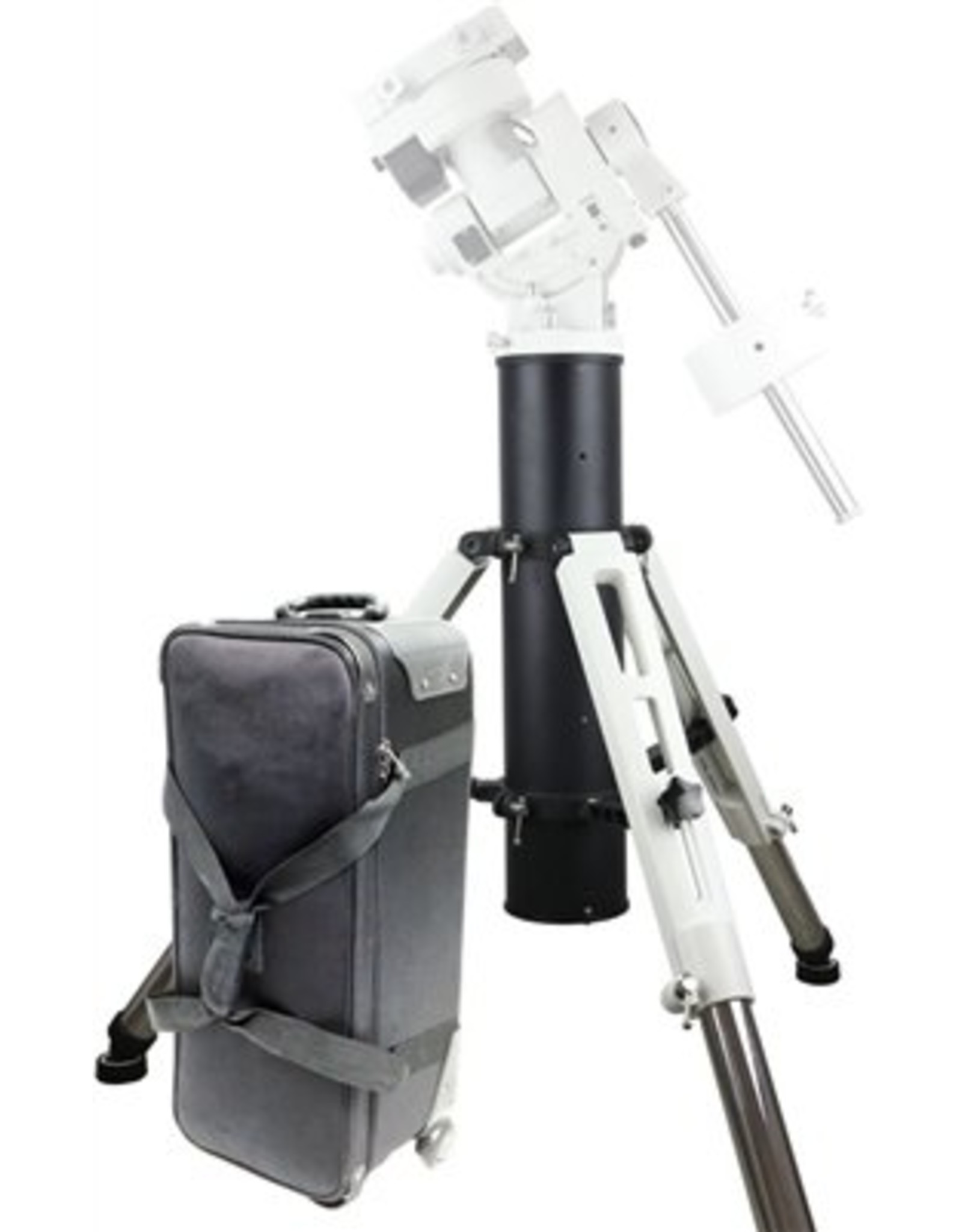

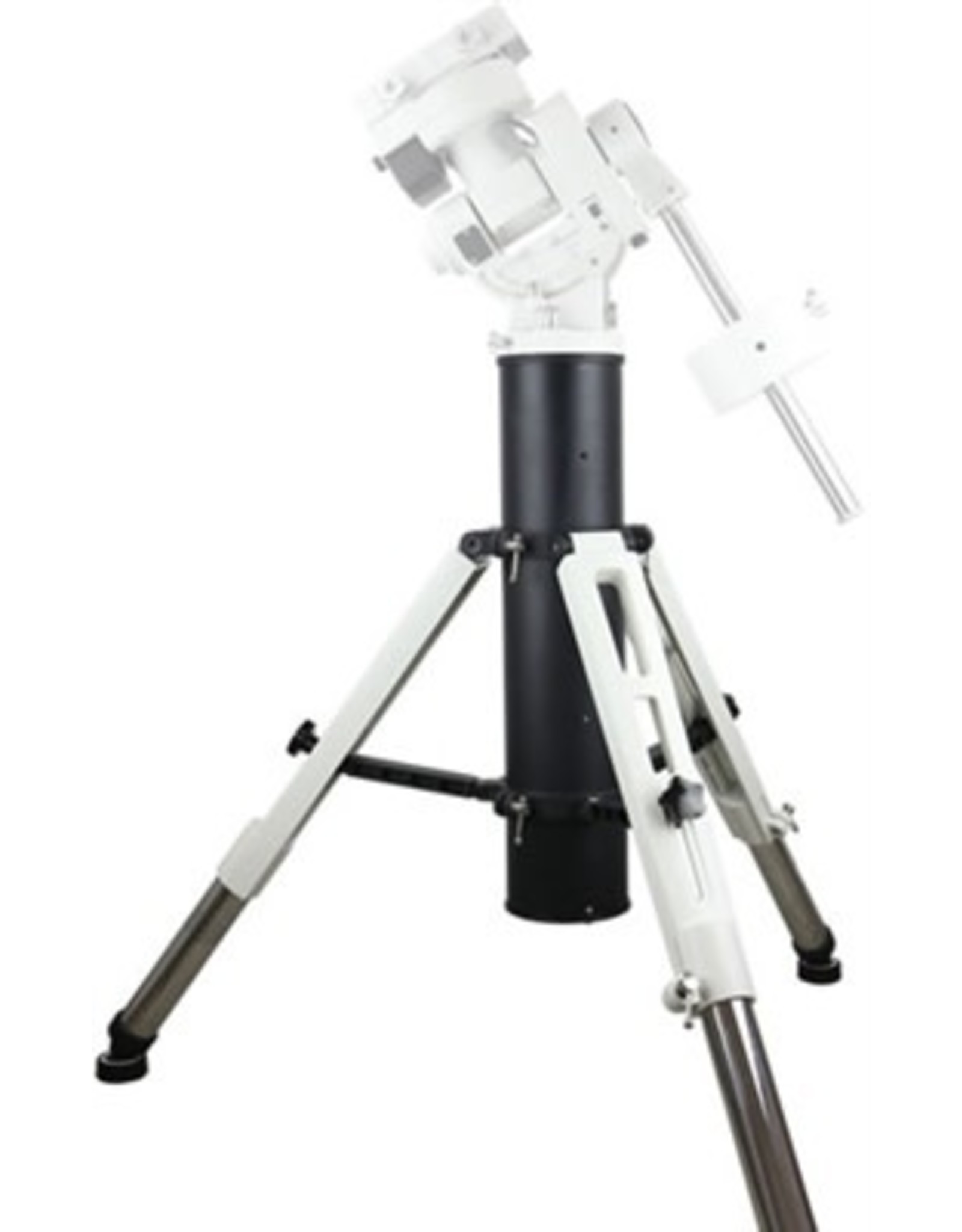

The iOptron Tri-Pier combines the strength and stableness of a pier with the levelling flexibility of a tripod. Aluminum pier and leg tops. Stainless steel leg extensions. The Tri-Pier feet has built-in vibration suspension pads.
The Tri-pier fits these iOptron mounts (please specify if it is for MiniTower):
- CEM60
- iEQ45/iEQ45 Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- MiniTower/MiniTower II/MiniTower Pro (needs a center post)
The Tri-pier also fits other brand mounts with a suitable adapter.
| Max Payload | 220 lbs (100 kg) |
| Self Weight | ~25.8 lbs (11.7 kg) |
| Pier Diameter | 5.7" (144 mm) with 150mm top plate |
| Adjustable Height | 31.5"-42.5" (800-1080 mm) |
| Uneven Ground Range | 3.35" (85 mm) |
| Leg Maximum Spread | Ø48.8" (Ø1240 mm) |
| Pier Dimension (folded) | Ø12.8"x 26” (Ø325 x 660 mm) |
