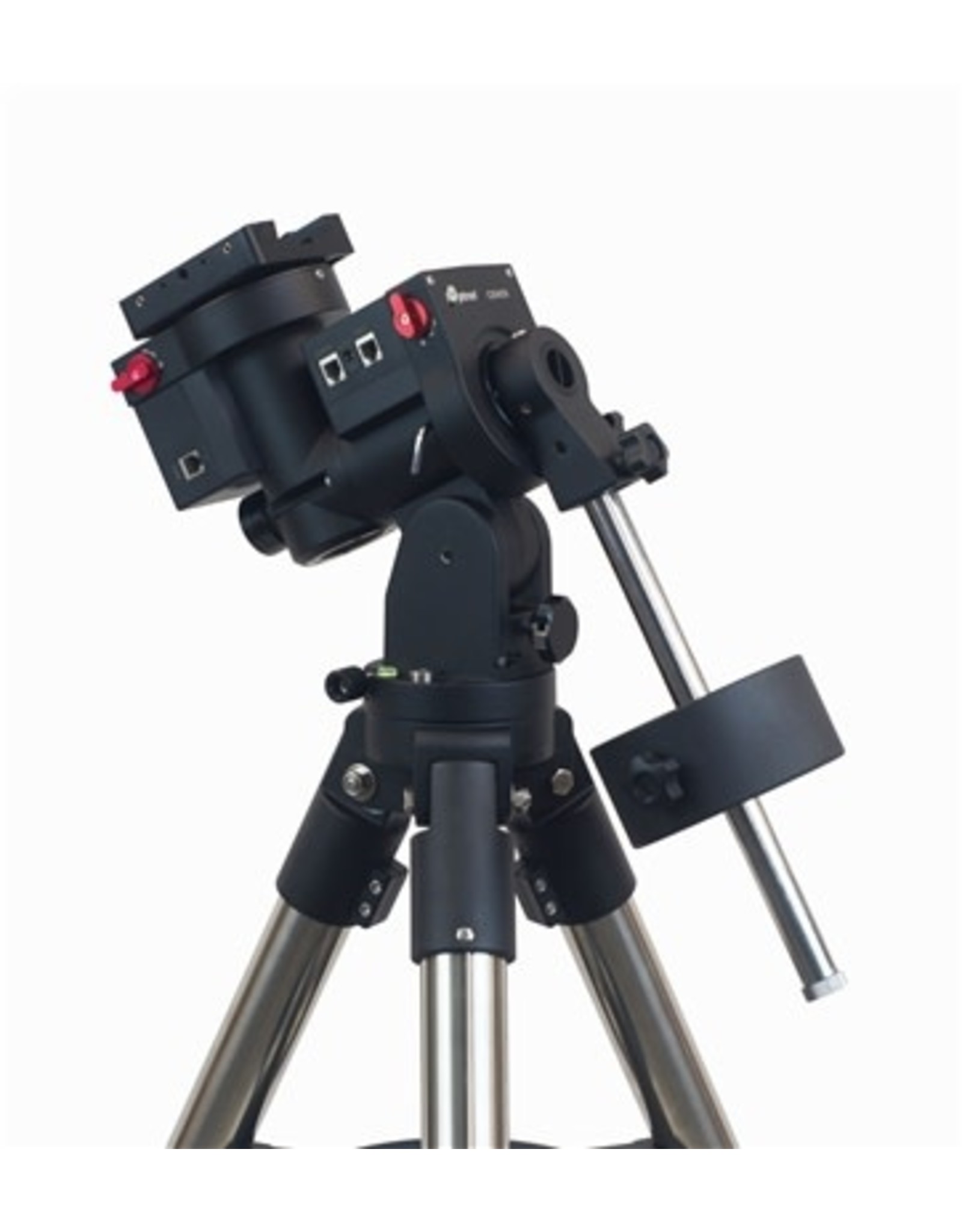

iOptron CEM26EC w/LiteRoc Tripod-C264A3

Home / iOptron CEM26EC w/LiteRoc Tripod-C264A3
iOptron iOptron CEM26EC w/LiteRoc Tripod-C264A3
iOptron iOptron CEM26EC w/LiteRoc Tripod-C264A3
$2,888.00
Article number: C264A3
Availability: More on the Way to us
Delivery time: Special Order
Introducing iOptron’s new compact next-generation center-balance equatorial mounts the CEM26EC!

Like their predecessors, the CEM26 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 26lb payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves). A high resolution optical encoder with real-time PEC delivers accurate tracking with PE <0.3 arcsec RMS. Built-in Wi-Fi enabling unparallel connectivity. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The CEM26 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26EC mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a LiteRoc heavy duty stainless steel tripod and an aluminum carrying case.

Sale price: $2098
Shipping Box #1: C264A-CEM26EC Head w/ iPolar/Case/Tray (C264A)
Shipping Box #2: 8283-CEM26/GEM28 LiteRoc Tripod w/o Tray (C26/G28 LiteRoc)


Features
  • Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
  • Ideal for both visual observation and astrophotography
  • PE < 0.3 arcsec rms
  • Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
  • CNC machined and cast metal body
  • Spring loaded gear system
  • Large easy to use quick-lock gear clutches
  • Adjustable counterweight shaft for 0º latitude operation
  • Stepper motor with low power consumption
  • iOptron AccuAlignTM calibrated polar scope
  • Polar alignment routine for those who can’t see the Pole Star
  • Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi
  • USB port for firmware upgrade and computer control
  • LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
  • Die-cast metal tripod spreader with accessory tray
  • Hard carrying case
  • Optional 32-channel Global Positioning System (GPS)
  • Optional iGuiderTM autoguiding system #3360



Mount Center-Balanced Equatorial Mount
Payload * 26 lbs (12kg), exclude counterweight
Mount weight 10 lbs (4.5kg)
Payload/Mount weight 2.60
Structure Material All metal, Casting + CNC machined
Exterior Finish Powder coating
Periodic error (PE) ** <0.3 arcsec rms
PEC Real-time PEC
Worm period 600 sec
Right Ascension worm wheel Φ88mm, 144 teeth aluminum
Declination worm wheel Φ88mm, 144 teeth aluminum
Right Ascension axis shaft Φ35mm steel
Declination axis shaft Φ35mm steel
Right Ascension bearing Φ55mm ball bearing
Declination bearing Φ55mm ball bearing
Worm gears Φ15.2mm, Brass
Motor drive 1.8º stepper motor, 128X microdivision
Resolution 0.17 arc seconds
Transmission Synchronous belt
Latitude adjustment range 0º ~ 60º
Azimuth adjustment range ± 6º
Polar Scope iPolarTM electrics polar scope
Level indicator Level bubble
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Slew speed 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
Power consumption 0.5A(Tracking), 0.8A(GOTO)
Power requiremention 12V DC, 5A
AC adapter 100V ~ 240V (included)
Power-down memory Yes
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB)
Autoguide port Yes (ST-4 compatible)
Firmware upgrade Yes
PC computer control Yes (ASCOM)
Counterweight shaft Φ20X306mm (M16), Stainless Steel
Counterweight 10 lbs (4.5kg)
Tripod LiteRoc heavy-duty stainless steel tripod w/ vibration suppression pads (7.5kg)
Dovetail saddle 3.8" Vixen-style, center adjustable
Hard case Included
GPS Optional external 32-channel GPS
Autoguiding Optional external iGuider 1
Operation temperature -10ºC ~ 40ºC
Warranty Two year limited
