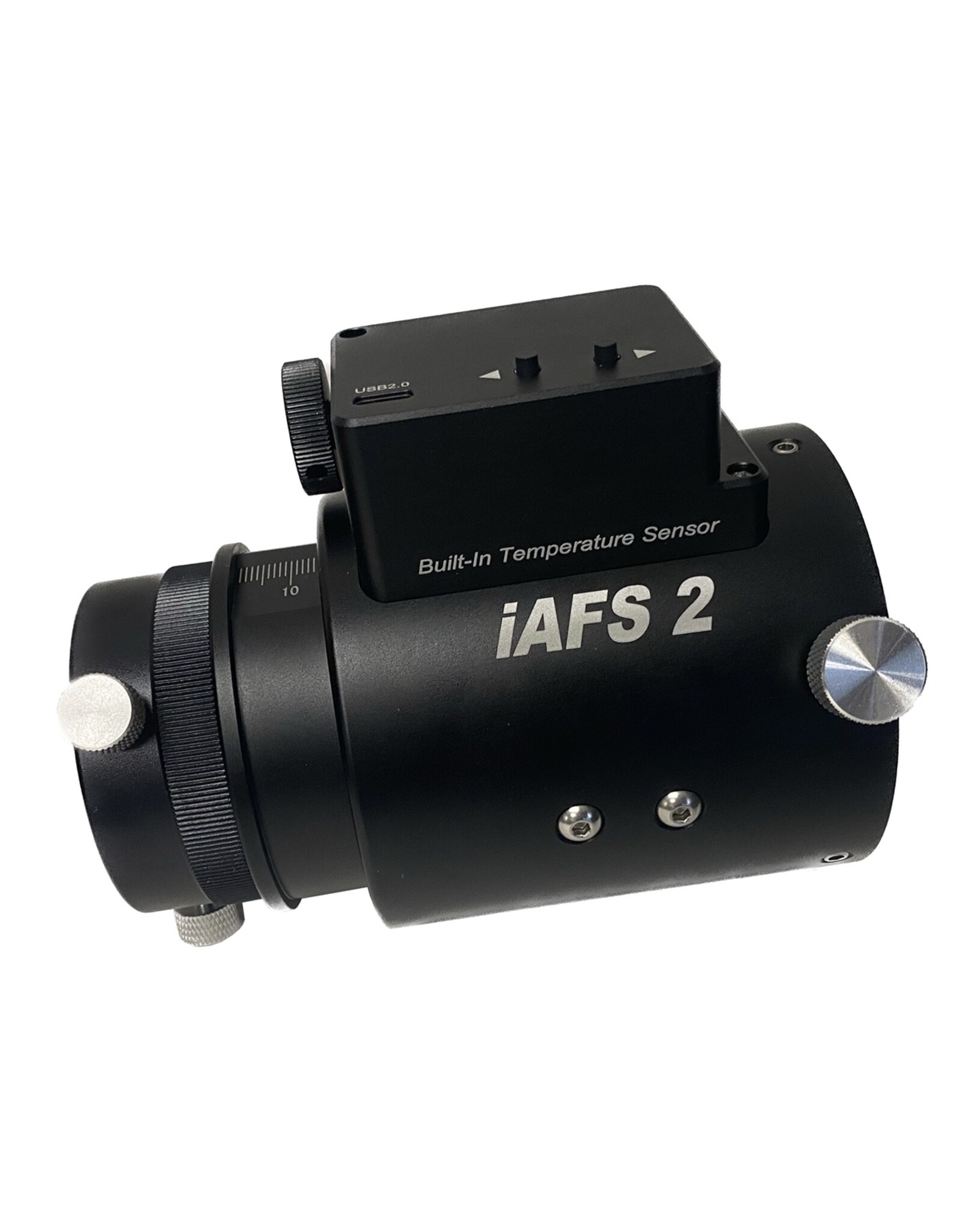

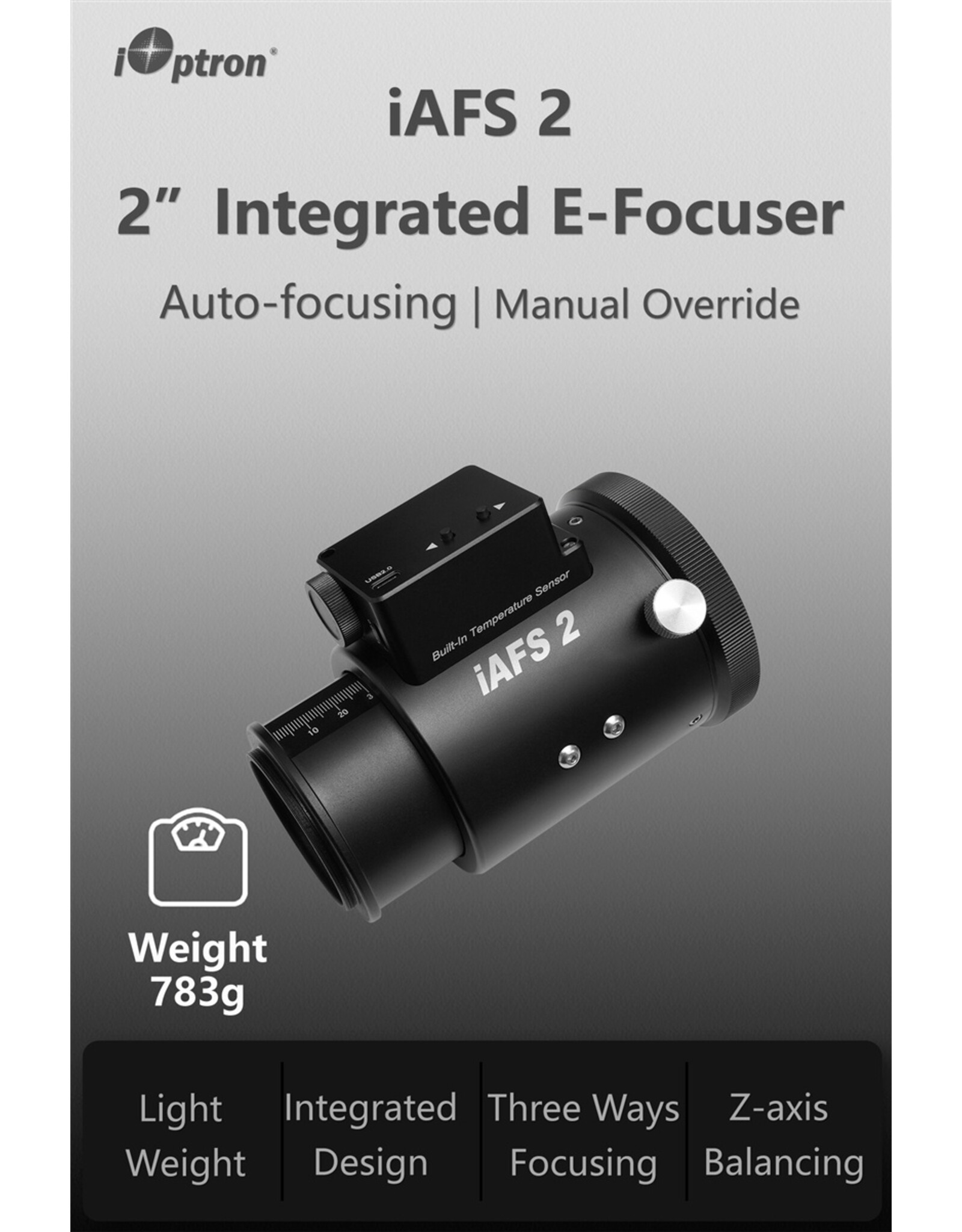

iOptron 2" Inline Automatic Focuser iAFS2 with 2" Visual Back
Article number: | FA20 |
Availability: | In stock |
Delivery time: | In Stock! |

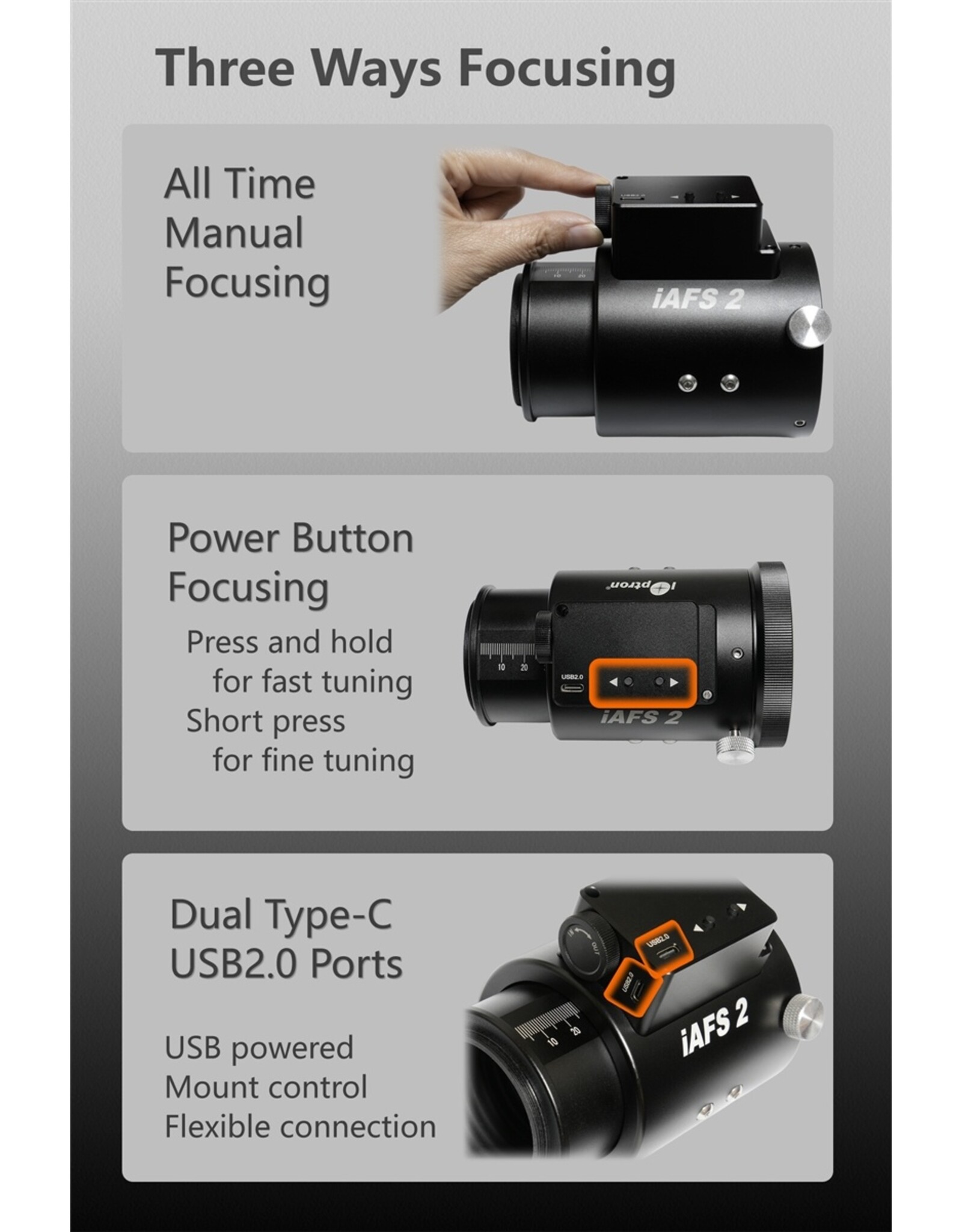

Introducing the most versatile inline auto focuser: the iOptron iAFSTM focuser with iLockTM technology! Utilizing a lead worm movement is the key to the iAFS focusers patented design; this method passively locks it at the exact position when movement is stopped, maintaining focus for most any sized payload even as the instrument angle is changed. The iAFS incorporates three movement control modes, USB (computer control), on board directional buttons (for powered manual adjustments) and a manual focus wheel to override the motorized adjustment. Other features include a built-in temperature sensor, dual USB-C ports, solid all metal body, fingerprint resistant surface, 0.6 micron resolution, and position limiters to prevent over runs. It comes standard with a 2 inch visual back, and optional telescope adapters to fit various OTAs are available. The iAFS focusers will be available as the iAFS2 two inch model and the iAFS3 three inch version.
Features

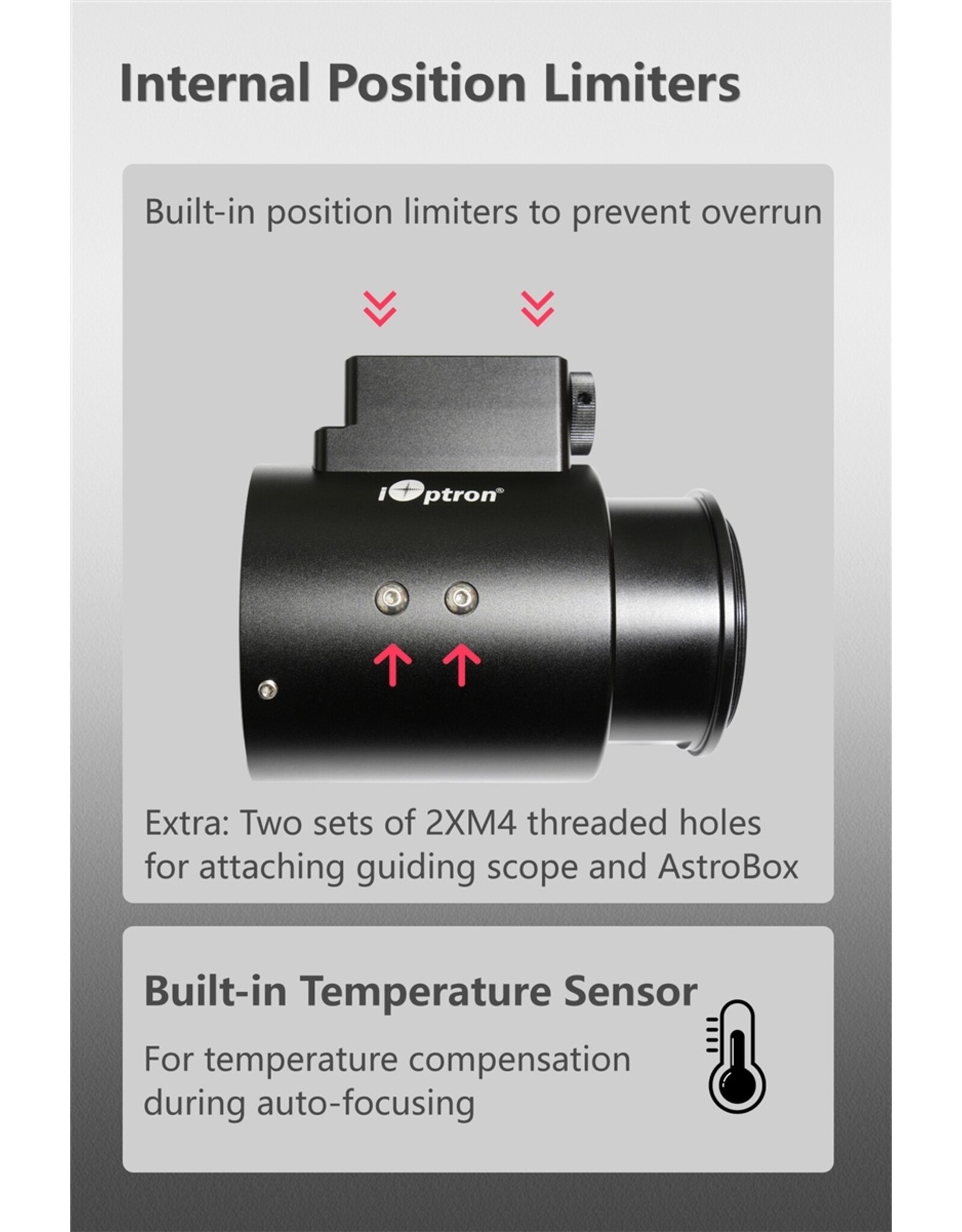

- High precision stepper motor with position over-run protection
- Built-in temperature sensor

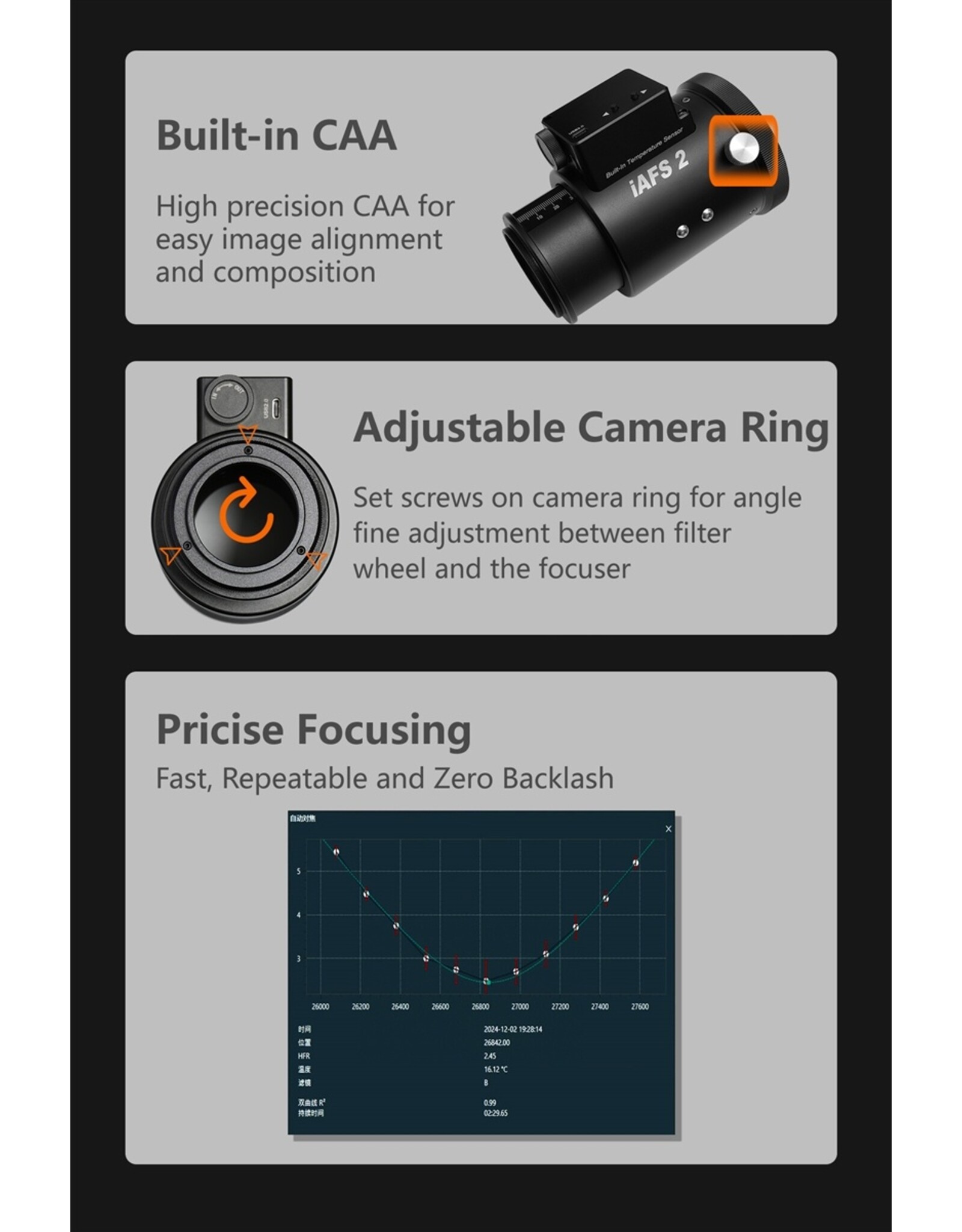

- Built-in CAA
- Quiet, smooth, fast operation
- Compact and lightweight
- Zero backlash
- Dual USB-C port for computer connection and firmware upgrade

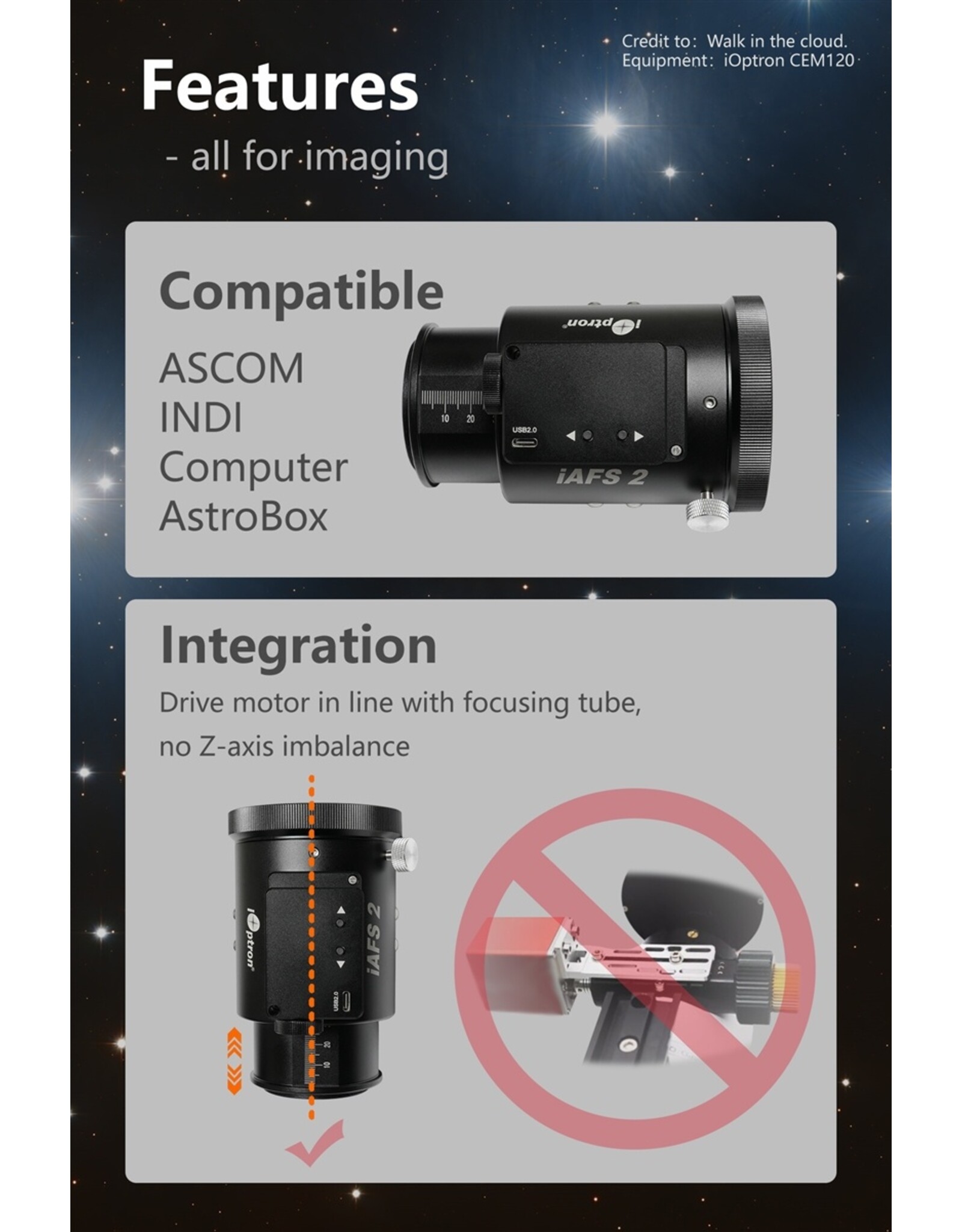

- ASCOM and INDI compatible
- Low power consumption with USB2.0 (type-C) powering
- Manual adjustment (powered or unpowered)
- Position memorizing during power off

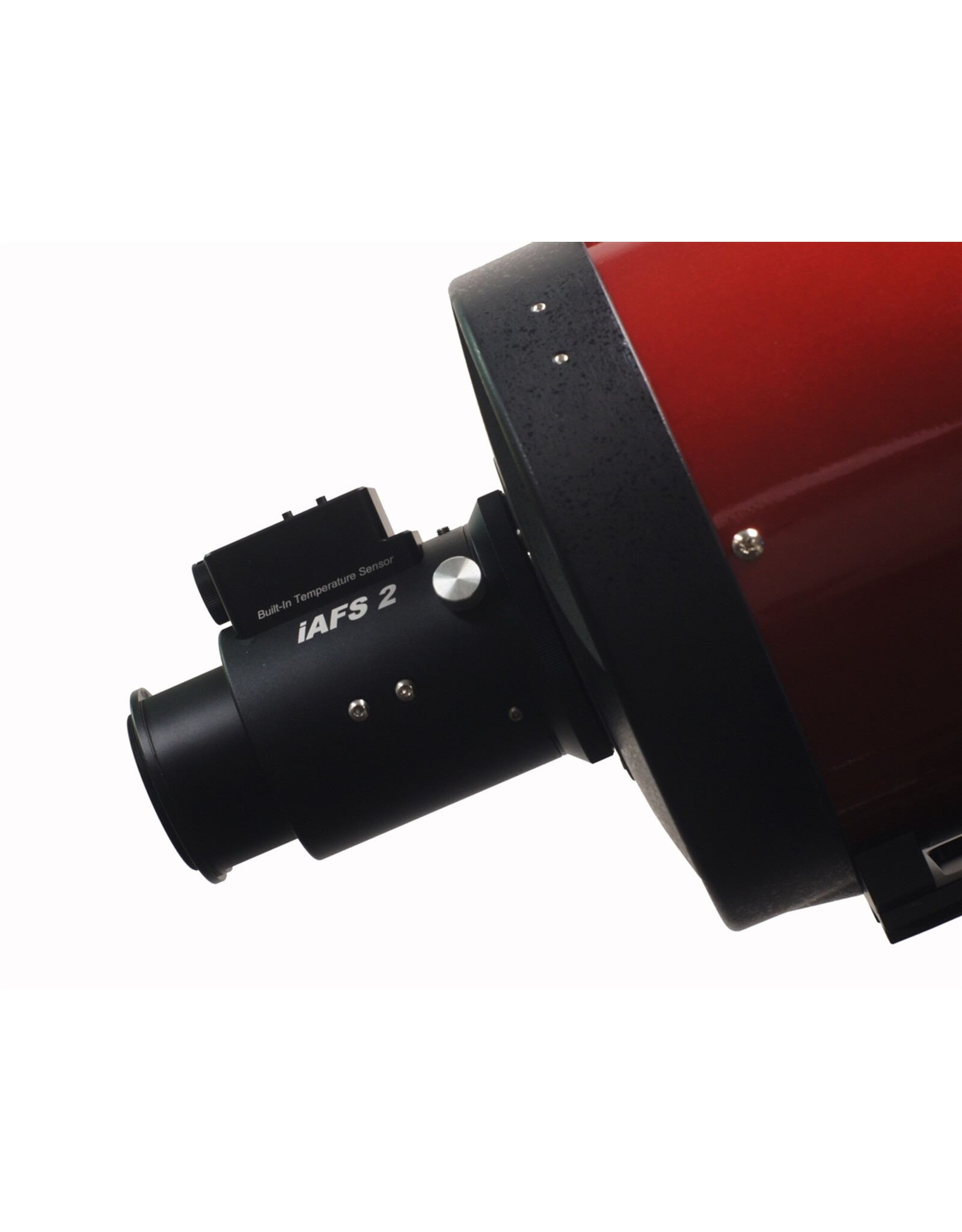

- Compatible with most OTAs with proper adapter
Focuser | Inline Auto Focuser with iLock™ |
Focuser Size | 2" |

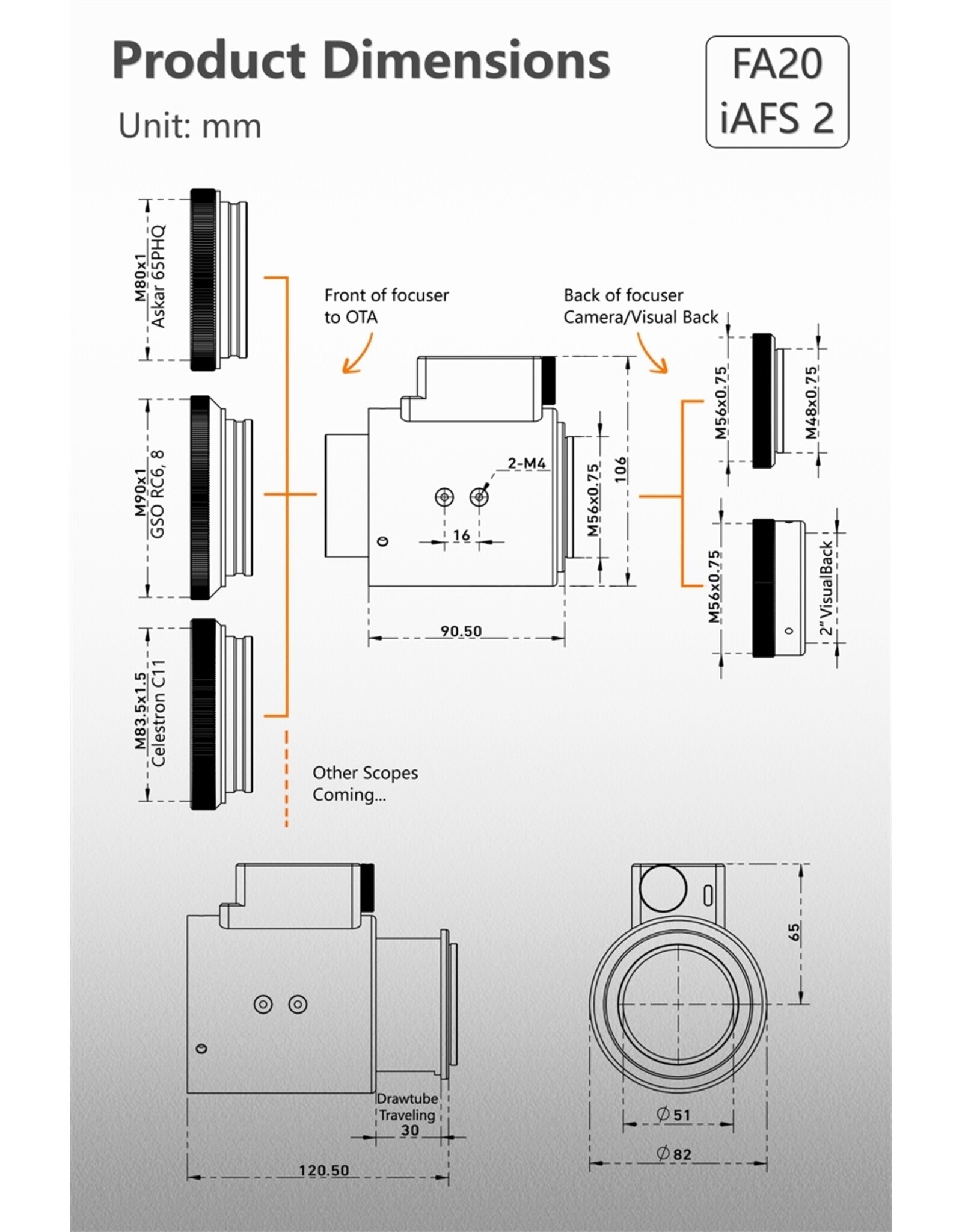

Dimensions | 90.5 X 106 X 82mm |
Weight | 783g |
Clear Aperture | 51mm |
Maximum Payload | 5kg |
Drawtube Travel Distance | 30mm |
Focusing Resolution | 0.6um |
Power/Communication Port | USB2.0 Type-C port X2 |
Driving Train | Stepper motor |
Computer Control | Yes (ASCOM and INDI) |
Automatic Focusing | Yes |
Motorized Focusing Button | Yes |
Manual Focusing | Yes (w or w/o motor power on) |
Temperature Sensor | Yes (Built-in) |
Camera Angle Adjustment | Yes |
Warranty | One year limited |
Manual Installation and Operation Manual
Firmware Upgrade iAFS Latest Firmware
ASCOM Driver iOptron Electronic Focuser ASCOM Driver
