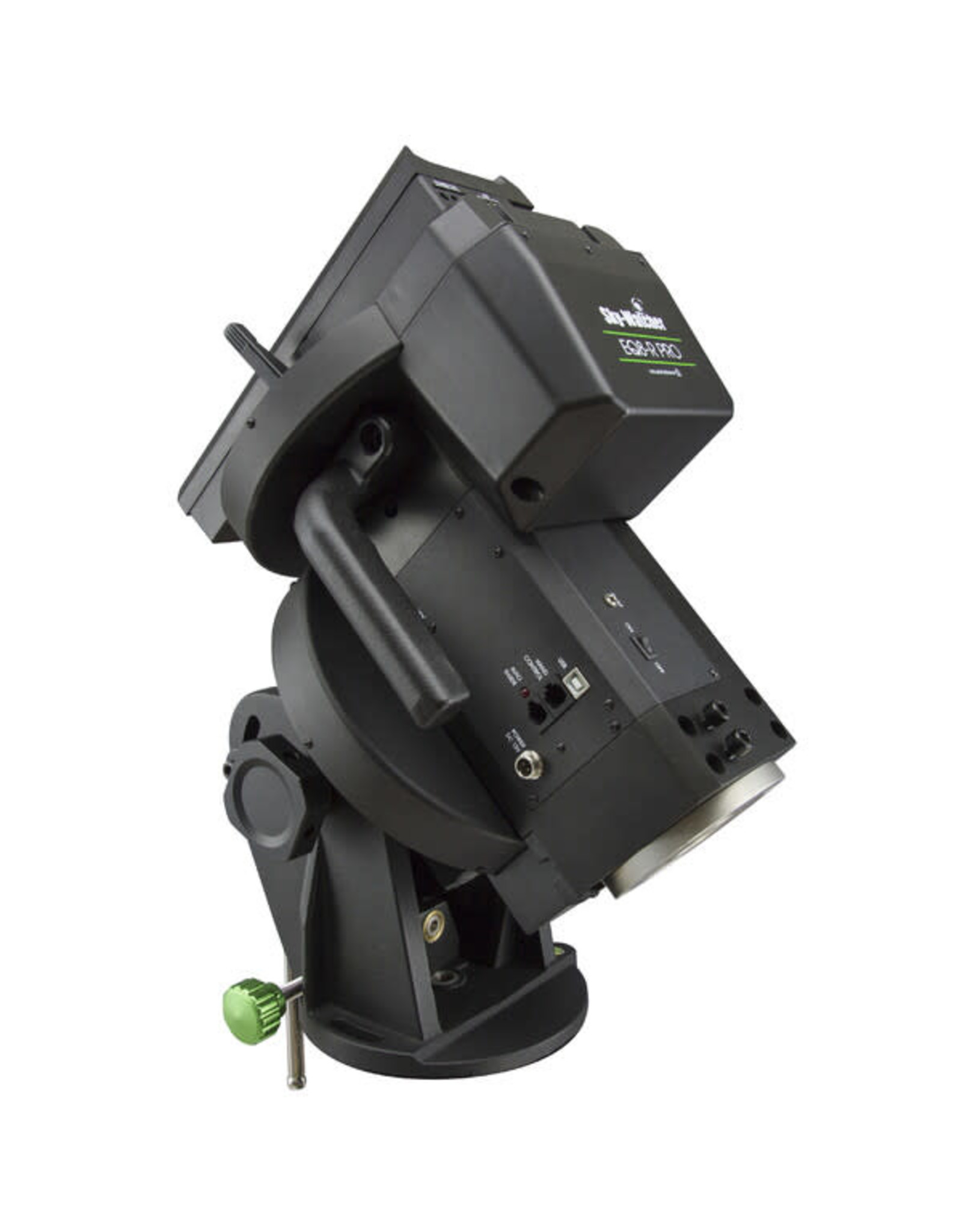

EQ8-R Mounthead Only with Counterweights
| Article number: | S30612 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
110-pound (50 kg) Payload
All-metal precision internal construction makes this mount strong and stable. The EQ8-R is a perfect fit for even the largest OTAs Sky-Watcher has to offer.
Belt-drive On Both AxesBelt drives provide minimal backlash and significantly reduced periodic error, which mean smoother, more accurate tracking.
Integrated Cable Management SystemBuilt-in USB 3.0, power, and serial ports eliminate cable drag and reduces the worry of cable snags
Pier Tripod NOT includedBuilding on the legacy of Sky-Watcher’s popular EQ8 mount, the EQ8-R introduces a variety of upgrades and enhancements that make observatory-class astrophotography easier than ever.
Whisper-quiet dual belt drives greatly reduce Periodic Error while providing enhanced tracking and guiding. The fully realized cable management system eliminates cable drag and makes remote set-ups ridiculously convenient.
| SKU | S30612 |
| UPC | 050234306126 |
| General Mount Info | |
|---|---|
| Mount Type | High-capacity motorized equatorial (EQ) |
| GoTo | Yes |
| Payload Capacity (lbs) | 110 |
| Mount Head Height (head by itself) | 19.5" |
| Mount Head Weight (lbs) | 56.8" |
| Mounting Saddle Type | D-style |
| Power Type | DC11~16V, 3 amp |
| Cable management | Four USB 3.0 ports, Three 2.1mm power ports, Three serial connections |
| Polar Scope | Sold seperately |
| Latitude Range (degrees) | 10° to 65° |
| Computer/Drive System Info | |
| Object Database | Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects |
| Controller | SynScan hand controller, flash upgradeable, or PC direct |
| Alignment Procedures | One-, two- and three-star alignment |
| Slew Speeds | 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x |
| WiFi | Optional WiFi dongle |
| GPS | Optional SynScan GPS sold seperately |
| Included Weights | 22lbs (two) |
| Motor Type | 0.9° hybrid stepper motor |
| Drive System | Belt |
