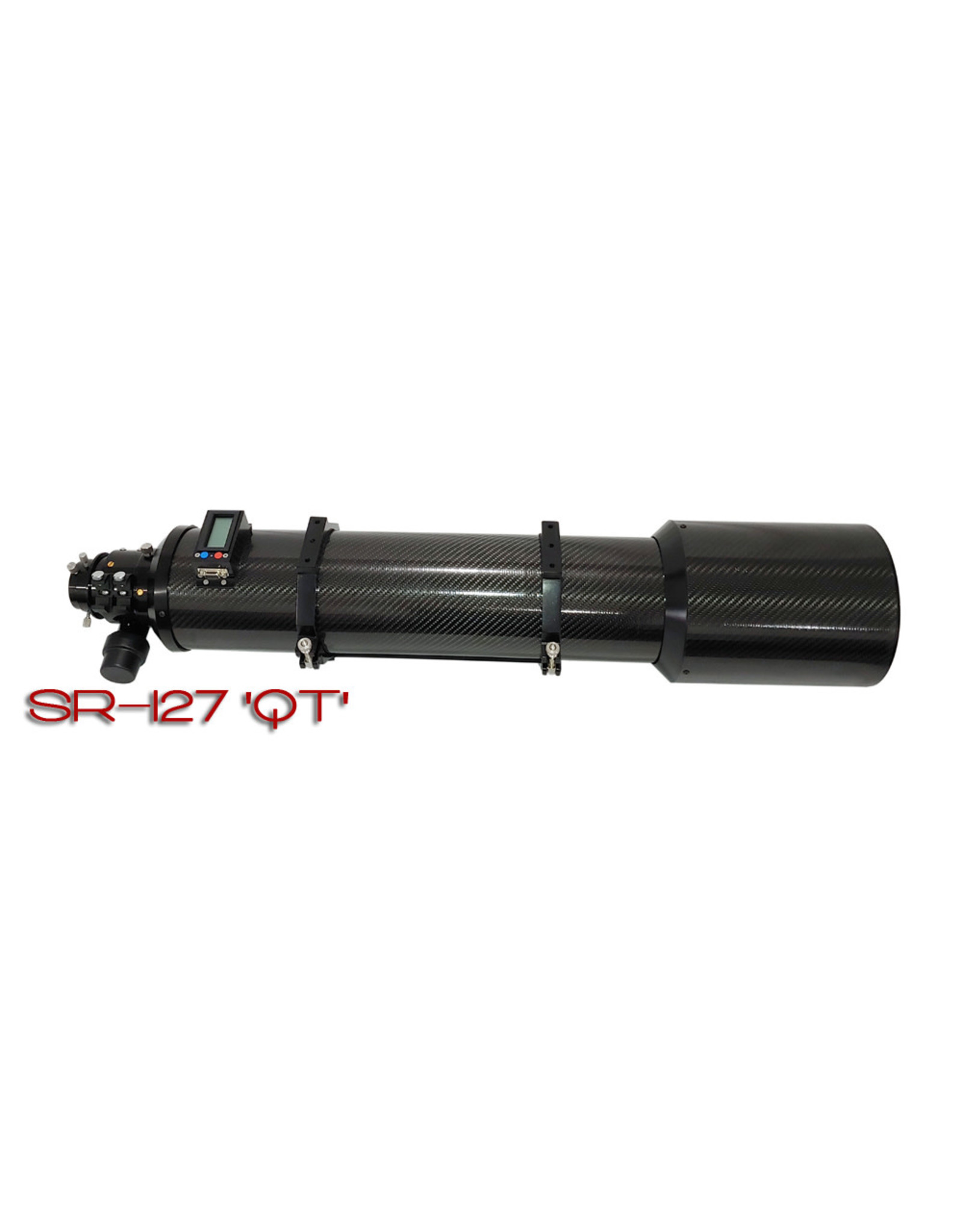

DayStar Filters SolaREDi 127mm f/21 H-Alpha Solar Telescope SE Grade, OTA Only (Specify Version)
| Article number: | SR127X |
| Availability: | More on the Way to us |
Key Features
- Integrated Hydrogen-alpha Solar Filter
- For Amateur and Limited Research Use
- 127mm Refractor Solar Scope
- 2667mm Focal Length, f/21 Focal Ratio
- Electronic Quantum Doppler Tuning
- Tuned for Prominence Viewing
- 0.01Å Tuning Accuracy
- ±1.0Å Offset Capability
- 2" Steeltrack Rack-and-Pinion Focuser
- Vixen-Style Dovetail Mounting Rings
Study details of the sun in high contrast against the stark black backdrop of space using the standard-grade Daystar Filters SolaREDi 127mm f/21 Prominence H-Alpha Solar Telescope. It combines a full-aperture solar filter with the same electronic tuning system used in their Quantum-series filters to produce a powerful and effective dedicated solar-viewing telescope. Prominences, a detail of the chromosphere projected against the blackness of space behind the sun, are seen with improved contrast due to the filter's narrower bandpass versus a wider bandpass filter tuned for conventional chromosphere surface viewing. This version of the SolaREDi is outfitted with a standard filter system and is ideal for general-purpose amateur and limited research use.
The SolaREDi comes calibrated for the H-alpha wavelength at 6562.8Å and, using the electronic tuning system, which is accurate to 0.01Å, the wavelength can be offset as much as 1.0Å in either direction for Doppler shift compensation and to highlight specific areas with a digital display showing the exact tuned wavelength. The SolaREDi is equipped with a sturdy 2" steeltrack rack-and-pinion focuser that is designed to carry heavier loads without flexing and a Vixen-style dovetail mounting ring set that makes it compatible with a wide range of mounts on the market today.
Optical Tube

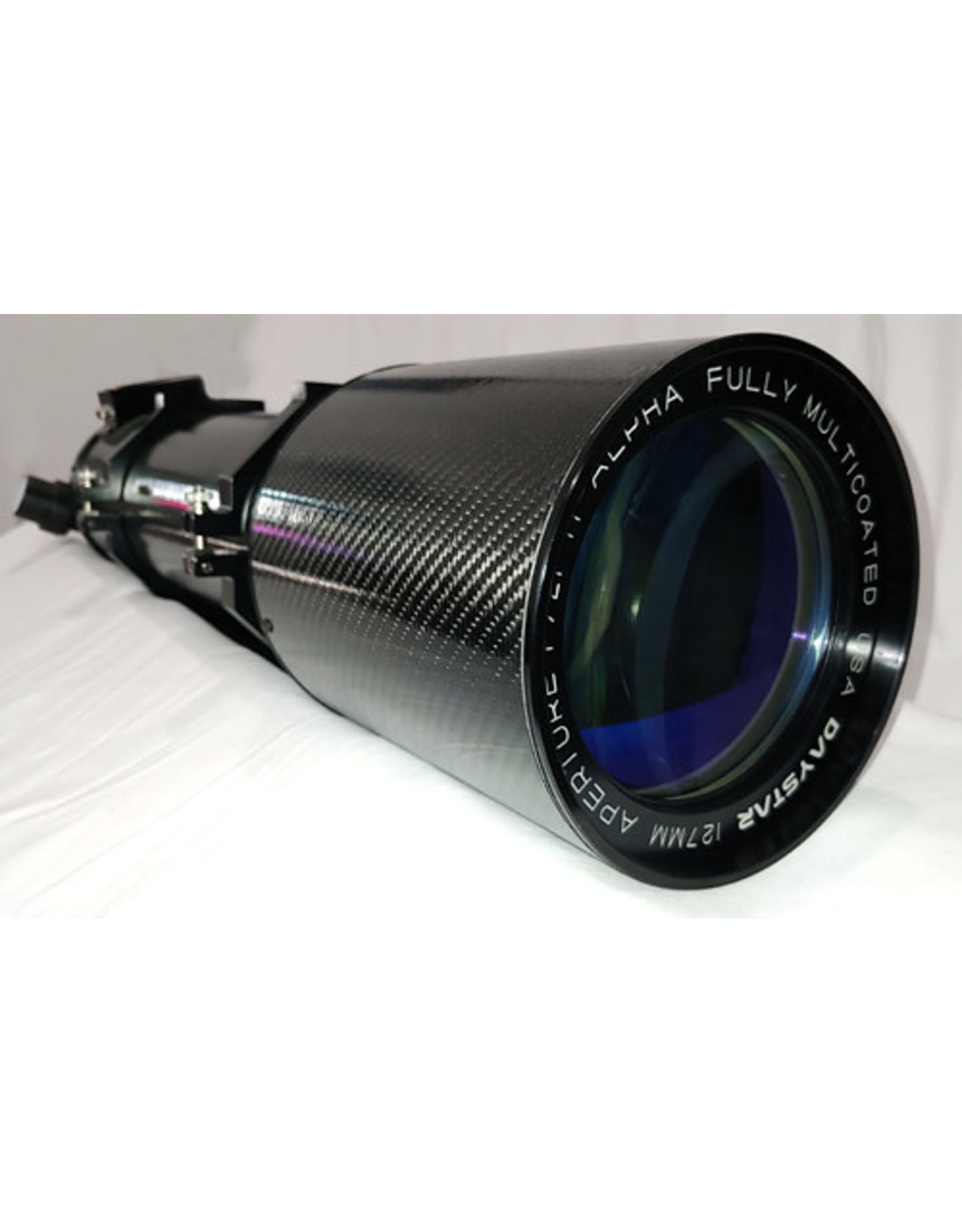

- Large 127mm f/21 aperture helps to reveal fine details
- Long 2667mm focal length produces a high magnification potential
- Achromatic doublet refractor-style optical configuration
- Integrated 2-element Barlow system produces a longer effective focal length than the optical tube length
- Carbon fiber optical tube construction reduces weight without sacrificing strength or stability while being resistant to expansion/contraction experienced by metal tubes when moving between extreme temperature changes
- 2" steeltrack rack-and-pinion focuser can carry heavier loads, such as imaging systems, without flexing—ensuring the optical path stays straight and true
- 1.25" reducer adapter to use smaller eyepieces
Solar Filter
- Standard (SE) grade filter system is ideal for amateur and limited research use
- Permanent solar-viewing filter calibrated for the Hydrogen-alpha wavelength at 6562.8Å
- Tuned for viewing prominences against the stark black backdrop of space, with a bandpass typically between 7Å and 8Å
- Precision electronic tuning system
- Digital display shows tuning
- Accurate to 0.01Å in center wavelength
- Enables wavelength to be offset as much as 1.0Å in either direction for Doppler shift compensation and to highlight specific areas
- Runs on 12 VDC power with included AC adapter

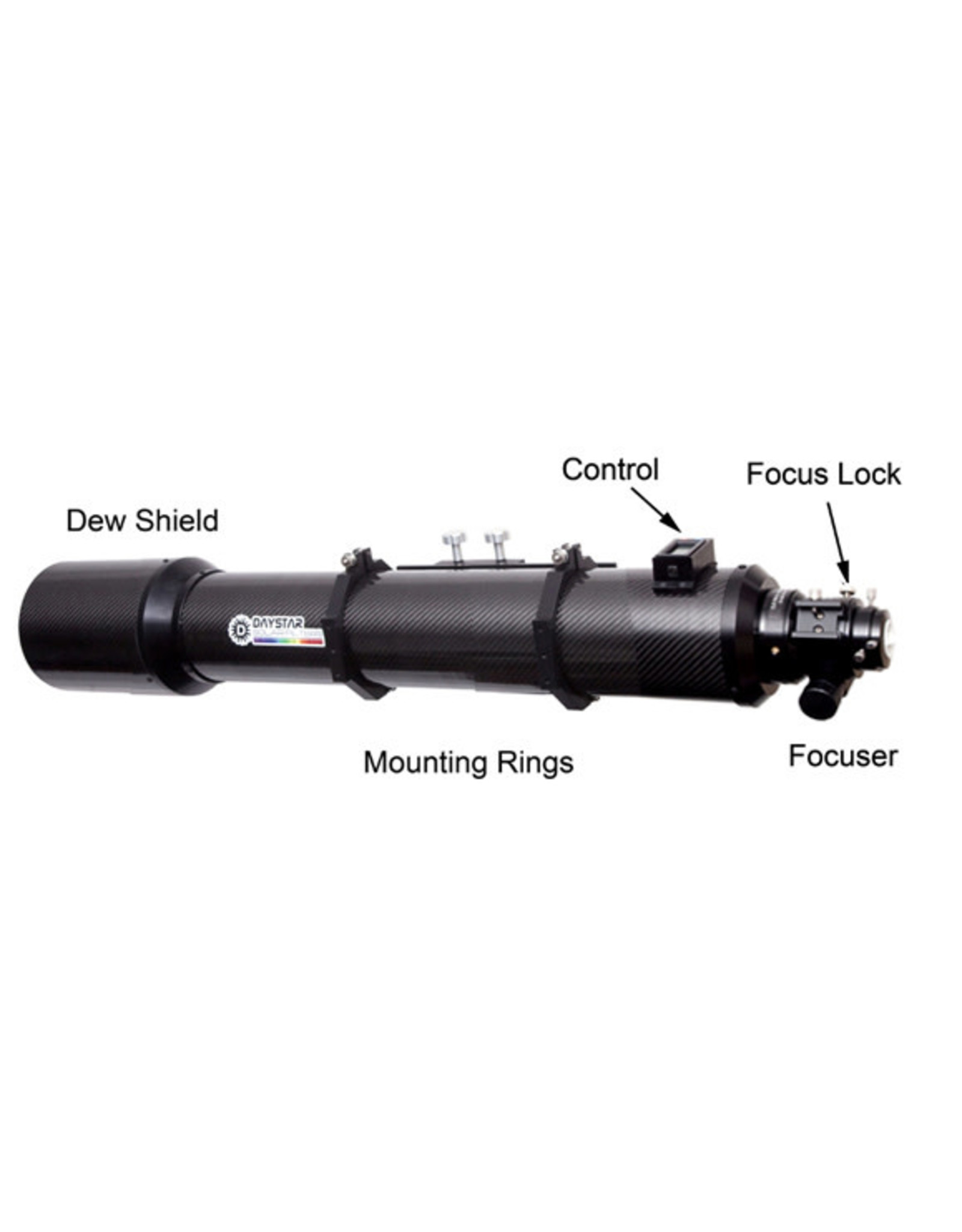

Mounting
- OTA only—mount and tripod required for proper use
- Includes mounting ring set with Vixen-style dovetail plate
- 13.6 pound weight
