ZWO ASI183MC-P Color Cooled (2.4 microns) CMOS Astronomy Camera ASI183MC-Pro

CCTS says:

"A very high resolution camera with tiny but very sensitive pixels - better suited for sampling smaller scopes with larger FOV's such as the Explore Scientific's 80 & 100mm Triplets." -MK

Introducing the ASI183 camera series, the most sensitive cameras in ZWO history. Peak Q.E. of the mono sensor reaches 84%!

DDR Memory Buffer

The ASI183 Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

DDR memory buffer is the main difference between ASI “Cool” and “Pro” cameras.

Astrophotography Performance

The ASI183 cameras has a very large full well capacity（15000e） for such small pixel size, 1.6e read noise @ 30DB, and 12stops dynamic range @ Gain=0. The ASI183 cameras also utilize firmware features to minimize amplifier glow for maximum performance in astrophotography.

Reliable Mechanics

ASI183 Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI183 Pro will still work fine without dew problems.

High Speed

Fast FPS can be used in solar and lunar imaging, as well as for live viewing/EAA.The high speed readout may also be used for real-time focusing, true lucky imaging of double stars and other small objects, planetary imaging of the major planets in the solar system, and much more.

10Bit ADC
5496×3672    19fps
3840×2160    41.04fps
1920×1080    80.10fps
1280×720      117.30fps
12bit ADC
5496×3672    19fps
3840×2160    36.12fps
1920×1080    70.48fps
1280×720      103.23fps

High QE

Sony’s back-illuminated Exmor R technology, giving it excellent Deep Sky performance. ASI183 QE peak reaches a remarkable 84%. In Ha channel, QE is still over 60%.

Having high QE means more of the light that enters your telescope and reaches the sensor is actually used. With 84% peak Q.E. and no less than ~50% within the visible spectrum, the ASI183 will utilize a high percentage of the light that reaches it, improving your signal quality.

Dark Current

The dark current of the ASI183 is extremely low, based on our test results.

Dark frame sample @ Highest dynamic range settings(gain=0), 300s, -10°C, bin1. Please check the dark frame to make sure you are fully know the performance.

ASI183 Pro Dark Frame

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI183 Pro to run at 19 fps (12bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(20.18Mega).

Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.

Using a battery with 9-15V is also suitable for the cooler power supply.

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI183 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System

The ASI183 Pro has a 2-stage TEC cooling system that enables deep cooling (40°C-45°C below ambient). The cooler requires an external power supply, which is not included with the camera. You may order a suitable power supply from here.

Connecting Drawing

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extender 11mm

Mechanical Drawing

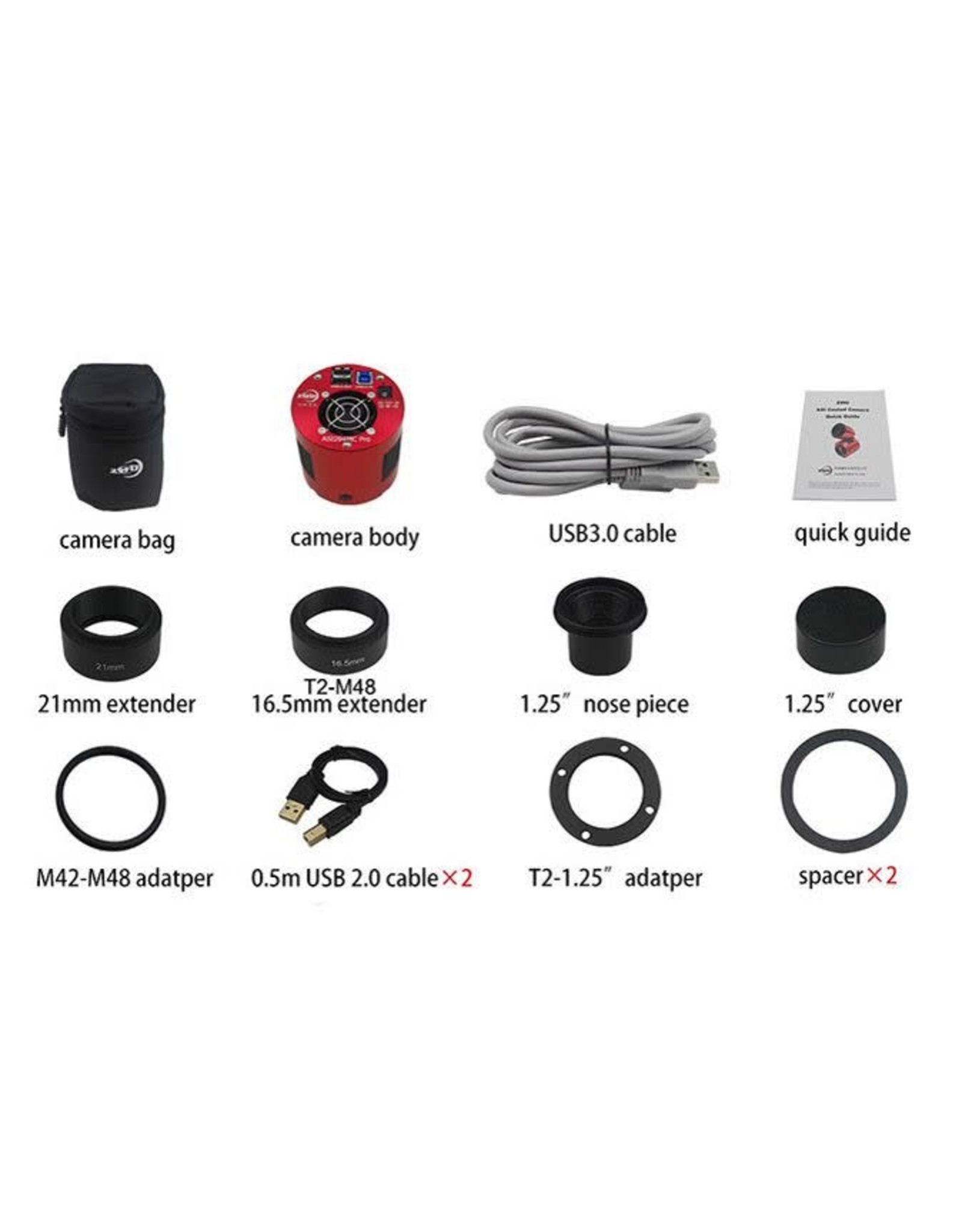

What is in the box?

ASI183 Pro box includes all necessary cables, adapters, and manuals.
