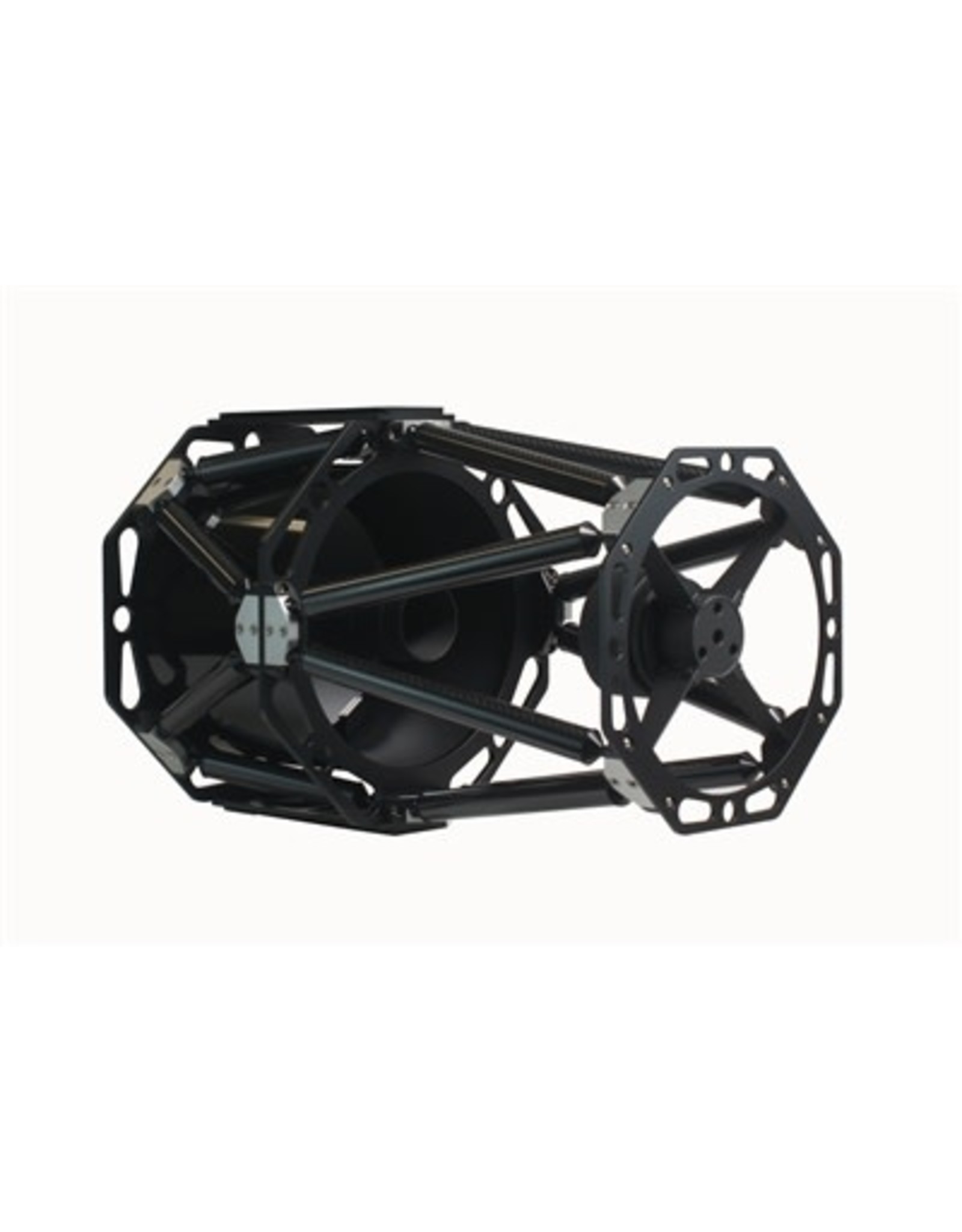

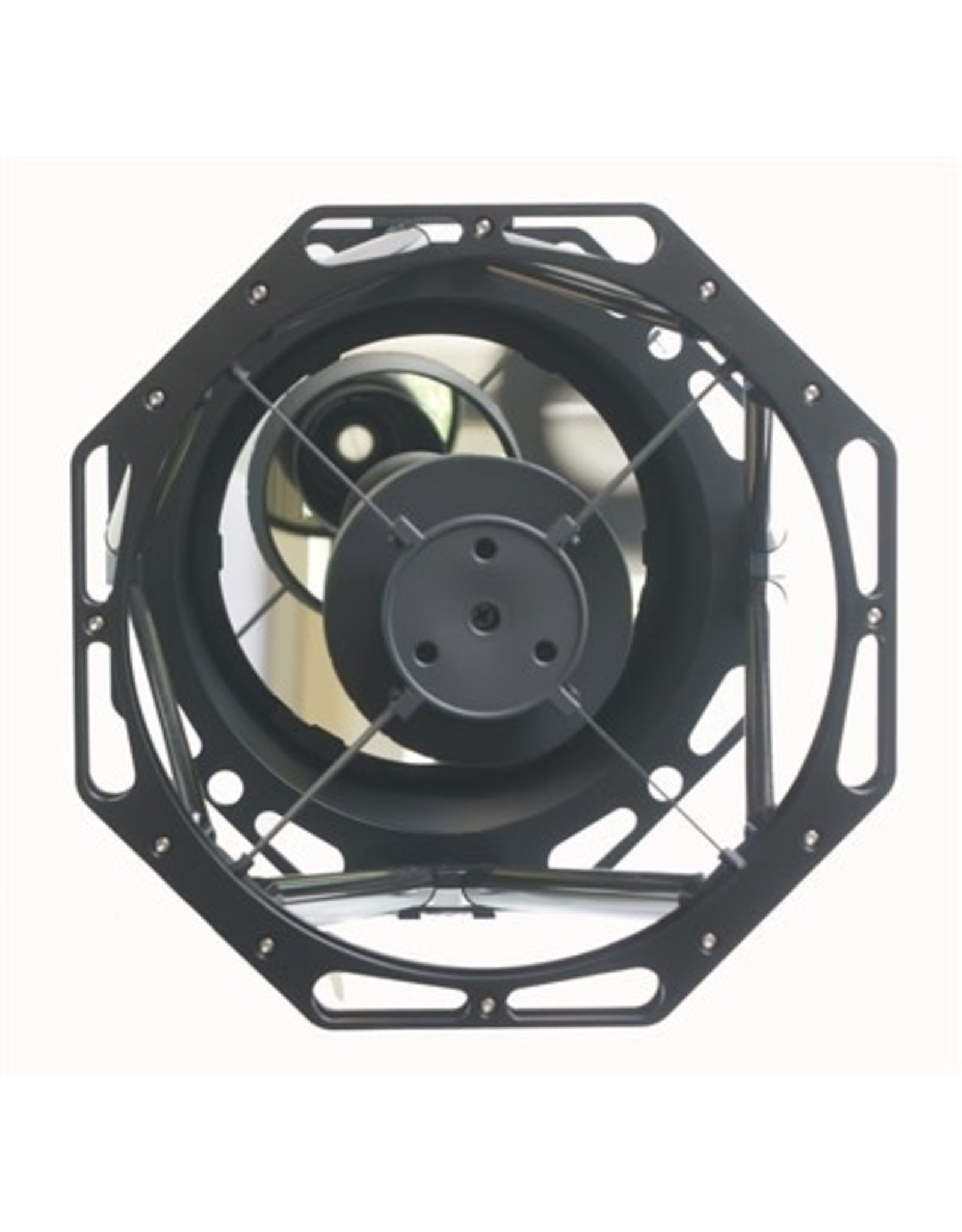

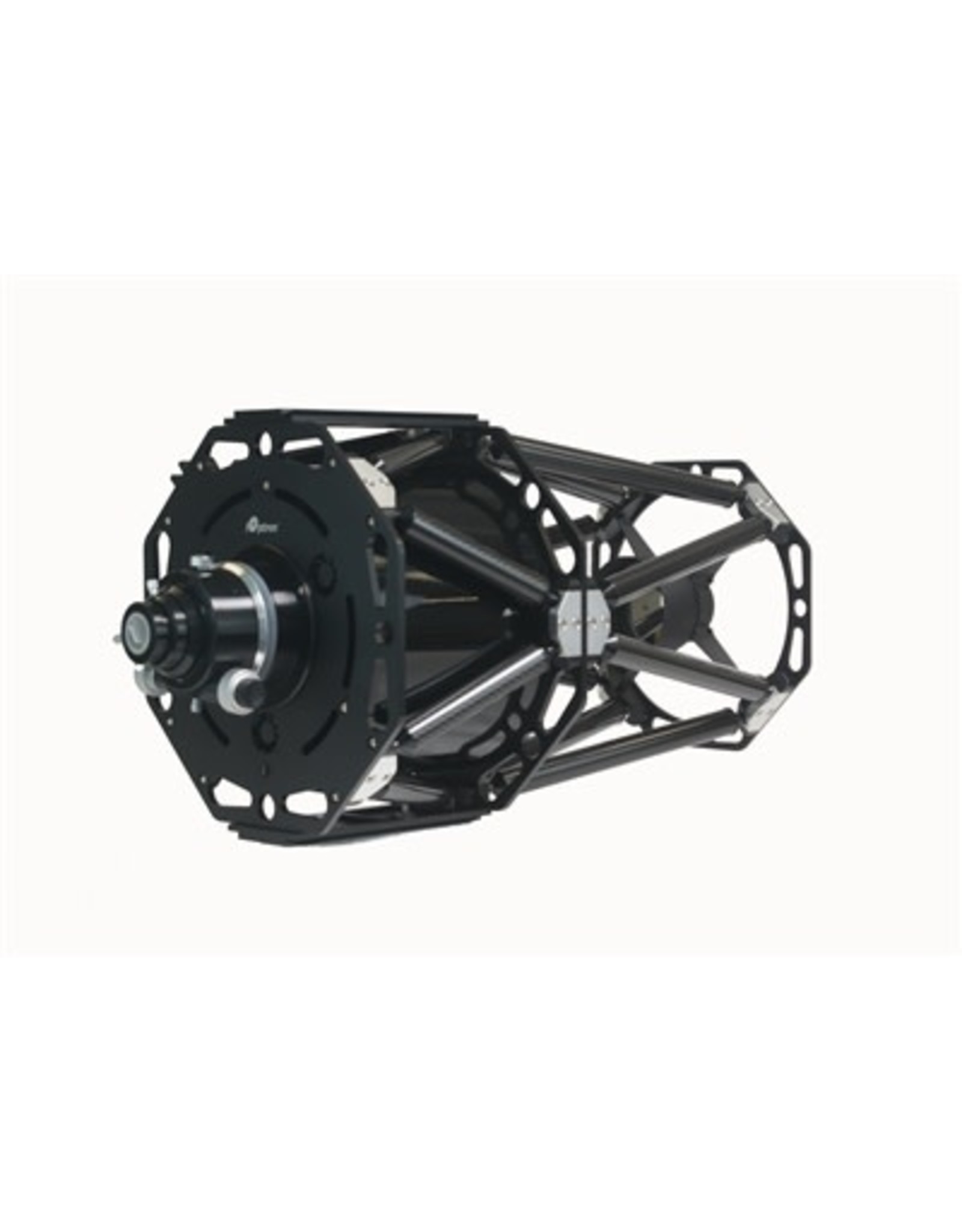

iOptron Photron 12 inch Truss Tube RC Telescope (RC Truss)

Home / iOptron Photron 12 inch Truss Tube RC Telescope (RC Truss)

Article number:	6114
Availability:	More on the Way to us
Delivery time:	More on the Way to Us

The Photon™ line of Ritchey-Cretien astrograph telescope has been expanded with the addition of four new truss tube models (10,12,14 and 16 inch). Designed for today's astro imager, Photron™ truss tube RC telescopes deliver a sharp clear image from one edge to the other. The truss tube models are designed t carry on our long standing reputation for creating and manufacturing solid, stable, accurate tracking mounts, in a high quality RC astrograph telescope.

iOptron® Photron™ truss tube RC telescopes feature low thermal expansion quartz primary and secondary mirrors with highly reflective dietetic coatings maximizing the light getting to your eyepiece or imagine device. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color and monochrome imaging. A fixed position primary mirror eliminates image shift that occurs when focusing from other telescope designs. With 1/12th wave or better primary mirror our RC scopes delver images and views that are out of this world.

Each Photron truss tube instrument comes equipped with a dual-speed linear bearing Crayford focuser that can facilitate our optional ASCOM compliant electronic focus control. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its backbone, made up of strong, light, carbon fiber truss supports hold the optics firmly in place while keeping weight to a minimum. It's open air design results in rapid cooling, reducing the "wait time" before use. Photron™ by iOptron®, RC truss tube telescopes are sure to meet or exceed even the most discriminating imager or observers expectations.

Features

Coma free, chromatic aberration-free, spherical aberration-free optics
10" (254mm) optical aperture
2032mm focal length
f/8 focal ratio
Fixed primary
Low thermal expansion quartz mirrors
3" Dual-speed Crayford focuser
Optional iOptron Electronic Focuser (#8451)

Package includes
#6114 10" Truss Tube RC OTA only

OTA w/3" dual-speed Crayford focuser
2X 1" (25.4mm), 1X 2" (50.8mm) focus extension rings
Cooling fan battery holder
Primary and secondary mirror covers

Features

Coma free, chromatic aberration-free, spherical aberration-free optics
10" (254mm) optical aperture
2032mm focal length
f/8 focal ratio
Fixed primary
Low thermal expansion quartz mirrors
3" Dual-speed Crayford focuser
Optional iOptron Electronic Focuser (#8451)

Package includes
#6114 10" Truss Tube RC OTA only

OTA w/3" dual-speed Crayford focuser
2X 1" (25.4mm), 1X 2" (50.8mm) focus extension rings
Cooling fan battery holder
Primary and secondary mirror covers

Optical Design	Ritchey-Chretien
Clear Aperture	10" (254mm)
Focal Length	2032mm
Focal Ratio	f/8
Focuser	10:1 Crayford dual-speed
Focuser size	3”
Dovetail Bar	Losmandy-style
Mounting Bar (Top)	Losmandy-style
Tube material	Carbon truss tube
Tube Length	650mm
Tube Weight	34 lbs
OTA Primary Mirror Cooling Fan	Yes (three built-in fan, with battery holder)
Other Accessories	1" long extension tube X2 2" long extension tube X1
Gross Weight	50 lbs
Warranty	One year limited
