Losmandy GM8G Equatorial Mount Only (Choose Configuration) - GM8G-B

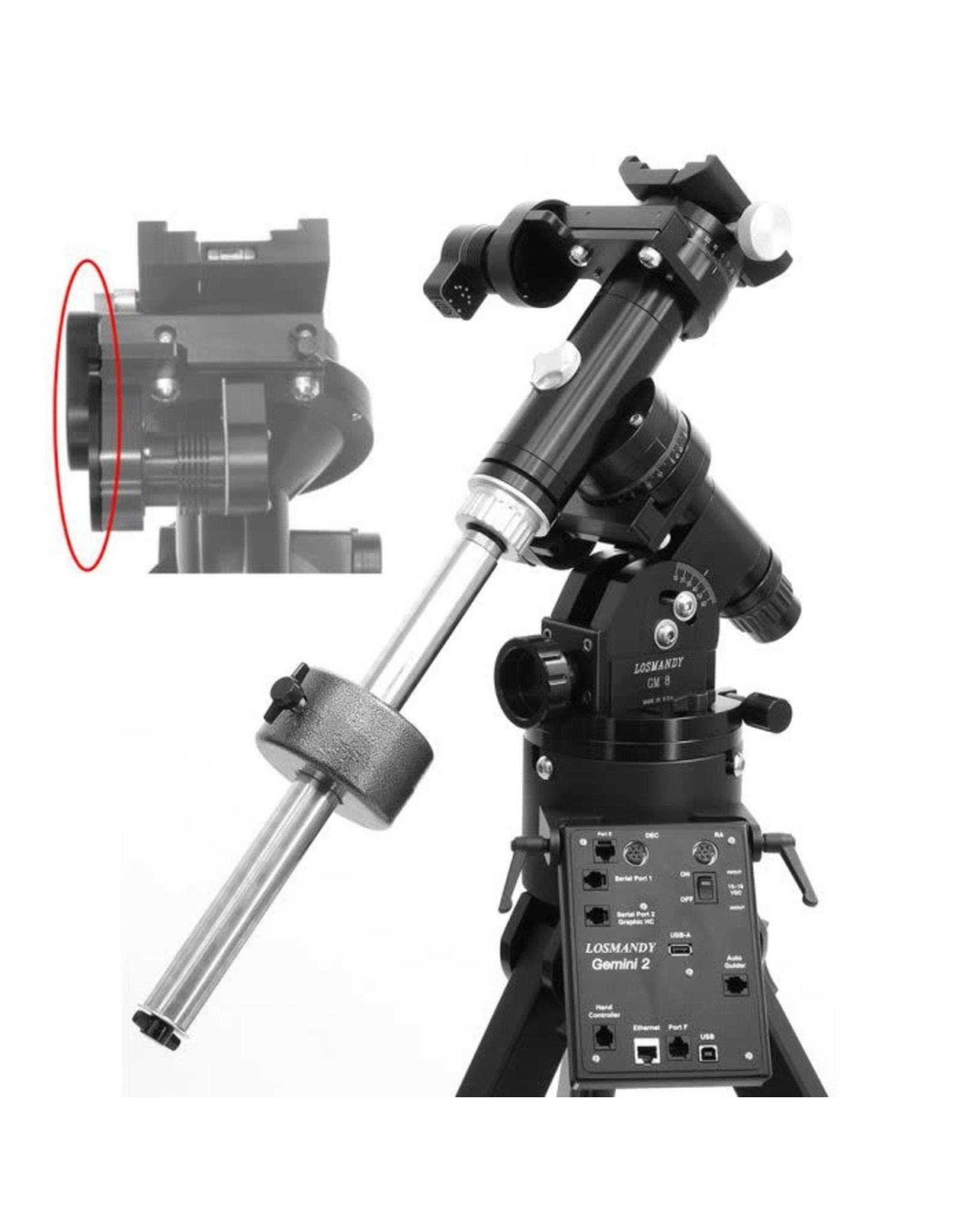

The Losmandy GM8G Equatorial Mount and Tripod with Gemini Go-To Drive and Tucked-In Motors is one of the most precise and finely crafted telescope mounts available today. The Losmandy GM-8 Mount is a beautifully machined mount made of aluminum and stainless steel. This mount provides astrophotographers with a solid platform to mount their smaller-to-mid-size Schmidt Cassegrains and Refractors along with the other instruments that constitute their astrophotography rig.

Losmandy GM-8 Equatorial Mount Highlights:

• The Losmandy GM-8 Equatorial Mount has a 30 lb weight capacity
• Laser engraved latitude scales and setting circles
• Includes OPW one-piece worm block on both axes
• The Losmandy GM-8 Mount Head weighs 21 lb
• This GM8G includes Gemini GoTo System
• This version of the GM8G includes the Losmandy LW Tripod
• The Tripod itself weighs 15 lb

Losmandy GM-8 Specifications:

• Servo motor driven Right Ascension and Declination axes
• 1.250" diameter aluminum shafts
• All machined aluminum and stainless steel, black anodized
• All hardware used is stainless steel
• One 2.100" diameter needle thrust bearing
• One 2.000" diameter needle thrust bearing
• Two 1.500" diameter needle bearings
• 2.812" diameter, 7075 aluminum worm gear, 180 teeth
• Dual-supported, ball bearing housed brass worm; worm gear is precision ground
• One piece worm block design
• Spring Loaded Worms
• Tucked-in motors
• Variable slip clutch, both axes with one-knob tension design
• Fully locking, unique tangent arm design altitude adjustment, 6°-68°, large knob for easy alignment
• Laser engraved latitude scale in 2° increments
• Single knob azimuth control, bi-directional ± 8.5°
• 3.50" diameter laser engraved setting circles, 6 minute R.A., / 2° Dec., R.A. circle engraved for Northern and Southern Hemisphere
• Porter slip ring design
• DC Servo motors for improved accuracy with higher torque than steppers
• Dovetail saddle-plate allows for the interchanging of any tube assembly; this reduces need for Dec weights
• Removable stainless steel weight shaft w/safety knob
• Includes one 7 lb counterweight
• 11 lb and 21 lb extra counterweights available as options
• Through-the-axis Polar Scope capability, works in Northern and Southern Hemisphere; Note: the Polar Scope is optional
• Instrument weight capacity: 30 lb
• Equatorial head weight: 21 lb

The Losmandy Gemini 2 Go-To System is a servo motor based computerized positioning system for the Losmandy Mounts. Losmandy has updated the Gemini GoTo System to include a newly enhanced CPU and increased memory. Perhaps most impressive is the interactive color touch screen that comes with the Losmandy Gemini 2 Go-To System.

The Gemini 2 Go-To System works with the Losmandy, GM8, G11 and Titan Mounts. This system is incredibly precise and the choice of astro photographers world wide. Precise object tracking is achieved as a result of the servo motor system Losmandy utilizes. The servo motor system runs with a continuous and smooth rotation, for better tracking. Further, the Losmandy system has an elevated level of torque which allows it to produce slewing rates of up to 8° per second with the GM-8 mount, 6° per second with the G-11 and 5° per second with the Titan Mount. The Losmandy Gemini system is a great instrument for use in the field because it can be run as a stand-alone system. With a 40,000 object database and an illuminated Color LCD touch screen, this mount is a pleasure to use. Powering the unit is simple; all you need is a 3A, 12-18 Volt DC power supply. Check out our list of specifications and features pertaining to the Losmandy Gemini 2 Drive System:

Losmandy Gemini 2 Go-To System Features:

• Full Color Graphic Touch Screen clearly displays all functions
• Classic four-button pattern for guiding, centering, moving, and slewing on both the touch screen and on a tactile membrane on the rear surface
• Support for the original four-button controller
• Can be used on all Losmandy GM8, G-11, & Titan mounts
• Custom mount support using the Programmable Gear Rate function
• 0.5 arcsec positional accuracy
• DC Servos for improved accuracy, with higher torque than stepper motors
• GPS-compatible with optional receiver
• Stand-alone system: No PC is required for operation
• English, German, French, & Spanish displays
• Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or serial port
• Non-Volatile Memory and Real-Time Clock
• Over 40,000 objects stored in the database
• USB ports: Virtual COM to PC, ASCOM or planetarium program
• Port F: multi-function serial port; for A/D Input or Output
• Firmware upgrade via internet
• PEC: Periodic error correction
• Auto-Guide port (TTL)
• Dual 12~18 VDC input/output (3.0 A)
• Tiltable control panel, for easy access during operation

Gemini 2 Celestial Database Includes:

• 168 BSL
• 303 Combined_Constellation_Stars
• 5437 IC
• 1125 LBN
• 1787 LDN
• 110 Messier Objects
• 8290 NGC (New General Catalog)
• 1143 PN
• 17636 SAO (Smithsonian Ap. Obs.)
• 313 Sh2
• 223 Southern_Constellation_Stars
• 3988 WDS

The CPU on the Gemini 2 System uses a mounted PC board as its base. This is a proven setup and is one of the most reliable in the field today. The main board has auto-guider and accessory ports, for full remote control (via the web) of the system from a computer from anywhere in the world. The Gemini 2 uses a Meade LX200 inspired command set. Clock and location information can be updated through a Losmandy GPS accessory that is sold separately.

Losmandy GM-8 LW (Light Weight) Tripod Specifications:

• All machined aluminum, black anodized
• Tripod height, adjustable from 27" - 43"
• Extremely sturdy and rigid when assembled, for superior astrophotography
• Folding leg design for easy transporting
• Tripod (only) weight: 15 lb

The Losmandy GM-8 Mount and Tripod with Gemini 2 Go-To Drive is a top-performing astronomical instrument with an updated, modern drive. If you are an astrophotographer looking for a solid mount with a 30 lb capacity, to support your telescope, the Losmandy GM-8 with Gemini 2 Go-To Drive is for you.
