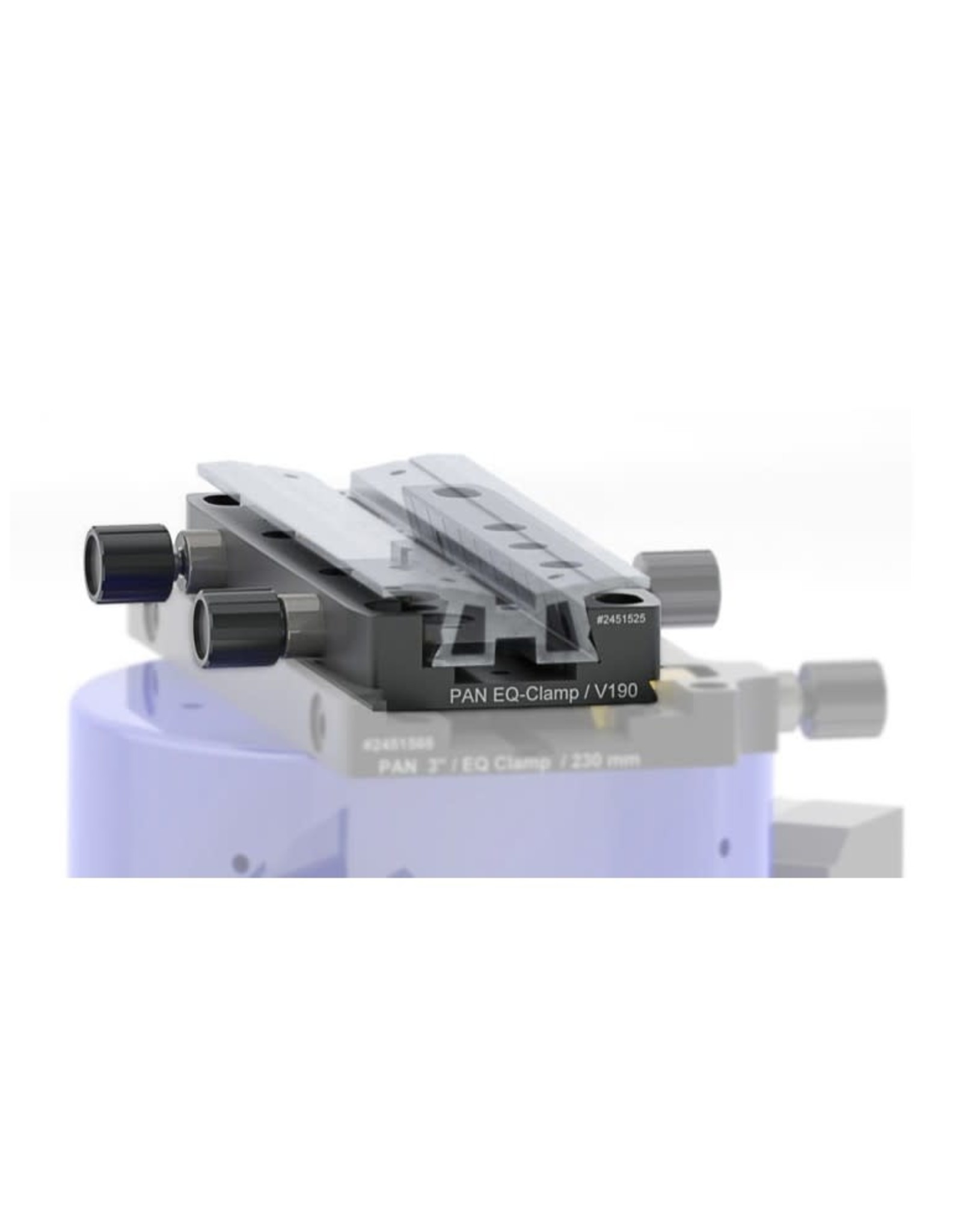

Baader PAN-EQ-Clamp V190
| Article number: | PAN-EQV |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to us |
- 190 mm long EQ (Vixen) clamp (saddle plate) with two brass thrust clamps
- PAN clamping jaws, rib milled for optimized contact pressure
- Integrated D-style (Losmandy) dovetail converts each D clamping arrangement to an EQ (Vixen) clamp
- The multiple hole pattern allows mounting to the following brands: Vixen, 10Micron, Astro- Physics, Takahashi, and Losmandy
- In addition, the 190 PAN EQ - clamp can be attached to suitable tube clamps (e.g. from Astro-Physics and TEC) by means of slots at both ends. Various other drillings and holes allow for attachment of customer's own designs (e.g. to all Baader guide scope clamps)
The heavy duty non-rotating brass thrust clamps are adjusted by the use of handy knurled knobs. The material combination of brass and anodized aluminum or steel is ideal for achieving the best clamping action possible.
Baader PAN EQ Clamp can be used as a reducing adapter, to enable attachment of EQ (Vixen) rails to any 3" (Losmandy) clamping arrangement.
