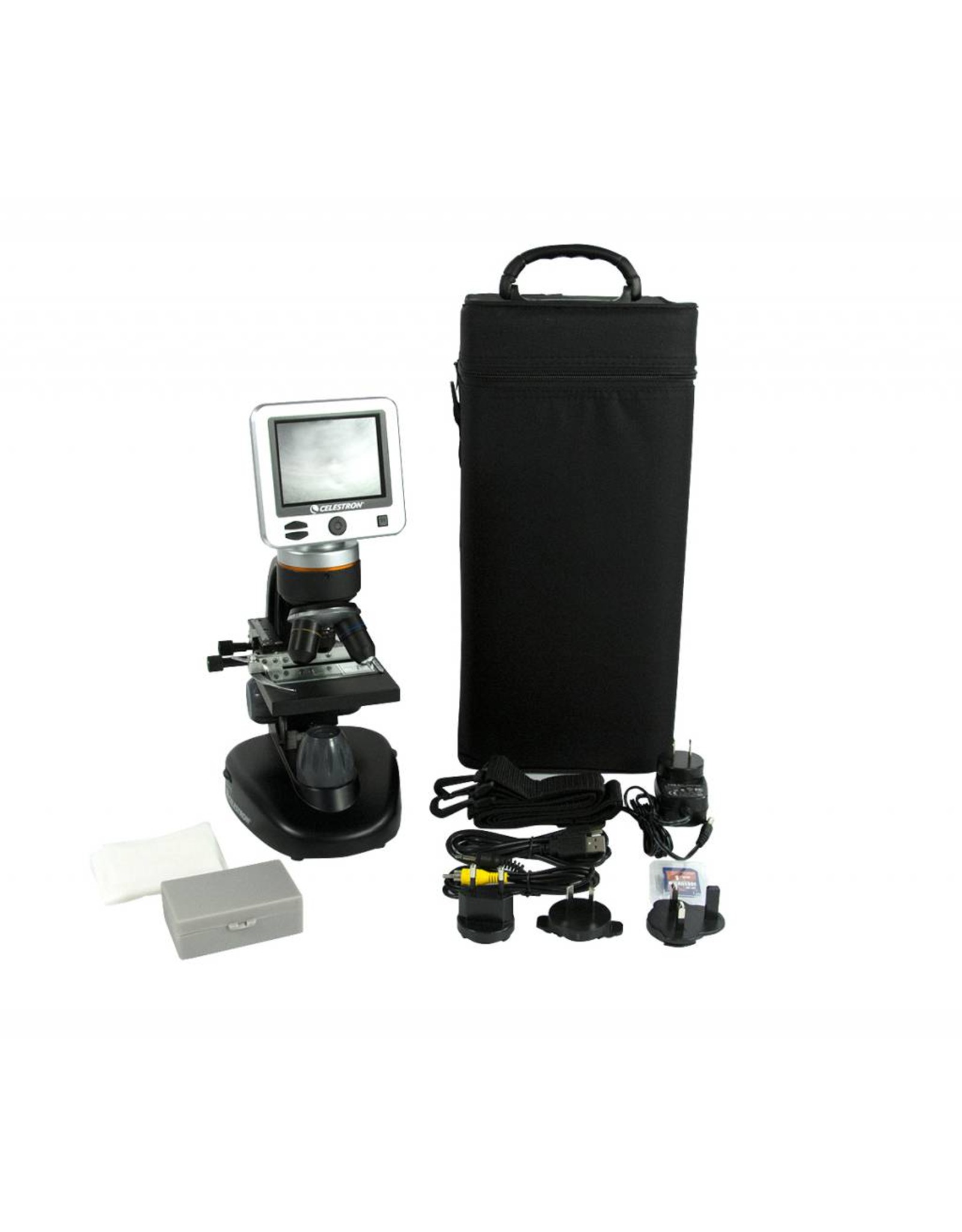

Celestron LCD Digital Microscope II
| Article number: | 44341 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
- Professional digital biological microscope
- Full color 3.5" TFT LCD screen with onboard software
- Built-in 5MP digital camera captures high-resolution images and 30fps SD video of your specimen
- Fully adjustable mechanical stage for easy slide movement
- 180-degree rotating head for easy sharing of images
- Rotating objective lens turret 3 lens powers: 4x, 10x, and 40x
- Camera sensor acts as 10x eyepiece lens, yielding 40x, 100x, and 400x powers
- 4x digital zoom for magnification up to 1600x
- Measuring reticle for comparing specimen sizes
- 1 GB SD card included so you can save up to 620 high-resolution images
- TV output for display on large monitors for classroom or lab environment
- Included accessories: 1 GB SD card, dust cover, rugged canvas carrying case with shoulder strap, 5 prepared slides, 4 plug international AC adapter
The professional-level Celestron LCD Digital Microscope II is a biological LCD microscope at an affordable price. With fully achromatic lens objectives, a mechanical stage, 3.5” full color TFT screen and 5 MP CMOS sensor, the LCD Digital Microscope II allows for high-resolution imaging of specimen slides. The microscope even includes a 1 GB SD card, enough storage to capture over 600 high-resolution images for lab reports, papers, lesson, and more.
From 40x magnification up to 1600x with digital zoom, the LCD Digital Microscope II is ideal for viewing a range of cellular specimens on slides, like most traditional microscopes. The LCD screen rotates 180 degrees so you can easily share your discoveries with others. For an even bigger audience, use the TV output to display on a television or projector.
Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope II is ideal for labs, schools and research institutions.
Included Accessories
- 1GB SD card
- Dust cover
- Rugged canvas carrying case with shoulder strap
- 5 prepared slides
- 4 plug, multi-country AC adapter
Specifications
|
Dimensions |
170mm x 140mm x 330mm (6.7” x 5.5” x 13”) |
|
Weight |
56 oz.(1600 grams) |
|
Stage |
Fully mechanical stage with metal clips |
|
Stage Dimensions |
103.5” x 3.5” (88mm x 88mm) |
|
Digital Camera |
5MP CMOS Sensor, 10x magnification in lieu of eyepiece |
|
Magnification |
40x, 100x, and 400x (1600x with digital zoom) |
|
LCD Monitor |
3.5” (90 mm) with 4x Digital Zoom — High definition touch digital TFT display Resolution — 320 x 240 pixels, Contrast ratio — 300, Color Support — 262K colors, Brightness/Luminance — 430cd/m2 |
|
Focuser |
Smooth, single motion |
|
Objectives |
Achromatic 4x, 10X, 40X |
|
Memory |
SD card slot with 1G SD card included (Supports up to 32G) |
|
USB Cable |
1.5m long, 2.0 USB |
|
Filter Wheel |
6 Position- Red, Blue, Green and 1, 3, 6mm aperture |
|
Nosepiece |
3 position with click stop |
|
Illuminators |
Upper and Lower, Built in adjustable LED- DC 5V, 2W～3W |
|
Condenser |
N.A. 0.65 |
|
AC Adapter |
Input Universal 100 to 240Volt 50/60HZ |
