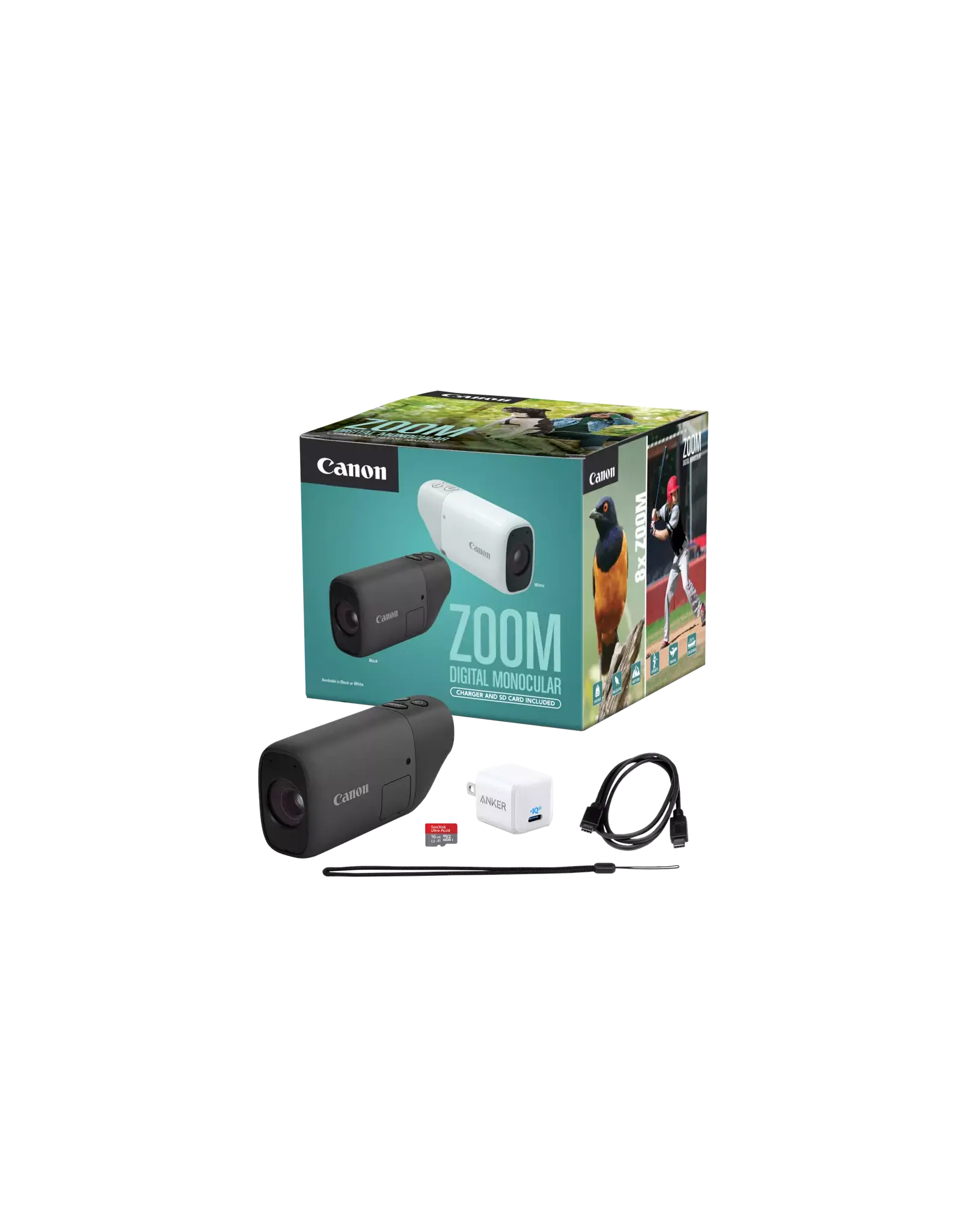

Canon PowerShot Zoom Monocular Compact Digital Camera
| Article number: | 5544C006 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Overview
Go further and see farther with the ZOOM Digital Monocular. Easily and clearly see distant subjects closer, wherever you are. With the one-touch three-step button, quickly switch the telephoto lens from 100mm optical to 400mm optical, and directly to 800mm digital for subjects even further away. Its sleek, compact design is pocket-sized so you can comfortably take the ZOOM with you anywhere you go from sporting events to nature walks and more. Image Stabilization helps keep the view steady and Auto Focus helps keep your field of vision crisp and sharp. A 12-megapixel CMOS sensor lets you capture Full HD 30fps video, as well as still images.1 With built-in Wi-Fi®,3 and Bluetooth®,4, you can even connect to your compatible smartphone for Remote LiveView shooting2 or transfer images and videos to enjoy or share later on. The ZOOM Digital Monocular is a fun and affordable viewing option with a fantastic far-reaching zoom so you won’t miss any details, even those further in the distance.
Long-range viewing and recording with a compact, pocketable design, the Canon ZOOM Digital Monocular is a unique blend of a digital camera and a stabilized monocular. Helping to easily and clearly see distant subjects, the ZOOM incorporates a 12MP CMOS sensor and an impressive 100-400mm-equivalent zoom lens, with 2x digital zoom possible, for handheld viewing of birds, wildlife, and sports subjects.
- POWERFUL ZOOM
- COMPACT & EASY-TO-USE
- STAY STEADY UP-CLOSE
- SEE AND CAPTURE IT ALL
12MP CMOS Sensor and 100-400mm Zoom Lens
- A 12.1MP CMOS sensor records both stills and Full HD 1080p video up to 30 fps.
- One-touch switchable zoom control permits instant switching from 100mm to 400mm positions, and then further to 800mm using 2x digital zoom.
- Optical Image Stabilization technology helps to steady handheld use for sharper shooting and steadier viewing. Powered IS suits even the most subtle of movement types, like breathing, while Dual Sensing IS corrects stronger movement types and longer viewing times.
- A single-point AF system provides quick and accurate TTL focusing performance to suit various subject types. Additionally, a Face Tracking feature can be used to detect and track recognized faces to benefit viewing and photographing fast-moving action, like sports.
- Magnification and Field of View:
- 100mm (Approx. 1.2x): 102' / 30m at 100 yd
- 400mm (Approx. 4.8x): 25.7' / 7.8m at 100 yd
- 800mm (Approx. 9.6x): 12.9' / 3.9m at 100 yd
Portable Design and Intuitive Handling
- Compact design is pocketable and offers easy one-handed use.
- Integrated 2.36m-dot OLED electronic viewfinder has a 59.94 fps refresh rate for fluid motion rendering and high clarity.
- One-touch three-step button makes for fast zoom changes between 100mm, 400mm, and 2x digital (800mm) positions.
- Dedicated Photo and Rec buttons for stills and video capture.
- Wi-Fi and Bluetooth connectivity pair with the Canon Camera Connect App for remote live view monitoring and wireless file sharing to a mobile device.
- Featuring a microSD memory card slot for storing photos and videos and a 16GB microSDHC memory card is included.
- Internal lithium-ion battery can be charged via the USB Type-C port and the battery provides approximately 150 shots, or two hours of viewing, per charge.
| Type of Camera | |
|---|---|
| Type | Compact telephoto digital monocular |
| Imaging Processor | DIGIC 8 |
| Image Sensor | |
|---|---|
| Type | CMOS sensor, 1/3-inch type^ (sensor aspect ratio: 4:3) ^ The center portion of a 1/2.3-inch type CMOS sensor is used. |
| Pixels | Effective Pixels: 12.1 Megapixels Total Pixels: Approx. 12.1 Megapixels * Rounded to the nearest 100,000. |
| Self-cleaning Sensor | Not provided. |
| Lens | |
|---|---|
| Focal Length | Optical 4x lens that switches between two focal lengths. • Telephoto side: approx. 100mm – 35mm equivalent (13.8mm) • Super-tele side: approx. 400mm – 35mm equivalent (55.5mm) • Digital Zoom: approx. 800mm – 35mm equivalent (2x digital) * Focal length can be checked through the viewfinder. |
| Lens Configuration | 11 elements in 8 groups * Aspherical lens, extra-low dispersion lens not included * Front lens surface has a cover glass (Not included in the lens construction) |
| Digital Zoom | Enables approx. 2x magnification |
| Step Zoom | • Switches among focal lengths in the following order, as controlled with the (ZOOM) button: • Equivalent to approx. 100mm (optical) -> equivalent to approx. 400mm (optical) -> equivalent to approx 800mm (digital). |
| Telephoto Magnification | Still Photo Shooting Movie Recording Equivalent to approx. 100mm Approx. 1.2x Approx. 1.2x Equivalent to approx. 400mm Approx. 4.8x Approx. 4.8x Equivalent to approx. 800mm Approx. 9.6x Approx. 9.6x |
| Field Of View | • 100mm: 102’ @ 100 yd / 31 m @ 100 m • 400mm: 25.7’ @ 100 yd / 7.8 m @ 100 m • 800mm: 12.9’ @ 100 yd / 3.9 m @ 100 m |
| Focusing Range | • Wide-angle: Approx. 3.28 ft. - Infinity / 1m - Infinity. • Telephoto: Approx. 14.76 ft. - Infinity / 4.5m - Infinity. * Macro functionality not provided. Measure from the tip of the lens barrel. |
| Aperture Number | • Wide-angle side: f/5.6 • Telephoto side: f/6.3 * No aperture control. |
| Autofocus System | TTL Autofocus |
| AF Method | • Face+Tracking • 1-point AF * Fixed at the center of the screen for 1-point AF. |
| Image Stabilization | |
|---|---|
| Image Stabilization Features | Lens shift system * 4-axis correction (Yaw/Pitch/X/Y) * Image stabilization cannot be deactivated. |
| Powered IS | Supported. |
| Dual Sensing IS | Supported. |
| Viewfinder & Monitor | |
|---|---|
| Viewfinder | Electronic Viewfinder (Approx. 2.36 million dots) |
| Screen Size | 0.39 inch-type |
| Eyepoint | Approx. 22mm (at -1m-1 from eyepiece lens end) |
| Dioptric Adjustment | Approx. -3 to +1m-1(dpf) |
| LCD Pixels | Approx. 1.04 million dots |
| LCD Coverage | Approx. 100% |
| Recording Media | |
|---|---|
| Recording Media Type | microSD / microSDHC /microSDXC memory card * SD speed class compatible. * UHS speed class compatible. * UHS-I compatible. |
| Card Access Indicator | Lamp lights up / blinks. |
| Read Error Warning | The error warnings are displayed in the viewfinder, and the shutter release locks. |
| Card Formatting | Low-level formatting. * Logical formatting not available. |
| Recording System1 | |
|---|---|
| Image Recording Format | Compliant to Design rule for Camera File system 2.0 and Exif. 2.31 * Supports time difference information. |
| Image Type / Extension | Image Type Extension Still photos JPEG JPEG Movies MP4 MP4 * RAW / C-RAW / HEIF shooting are not supported. |
| Still Photo Recording1 | |
|---|---|
| Image Quality /Recorded Pixels | Image Quality Recorded pixels JPEG Large / Fine 12.0 megapixels (4000 x 3000) * Image quality adjustment not available. * Lower image quality when equivalent to approx. 800mm, due to digital cropping. |
| Aspect Ratio | Fixed at 4:3 and not adjustable. |
| Image File Size / Number of Possible Shots / Maximum Burst | File size (Approx. MB) Possible Shots (Approx.) Maximum Burst (Approx.) 4.6 11460 50 * Number of shots available and maximum burst in high-speed continuous shooting driving mode. * Number of shots available and maximum burst apply to a 64 GB card conforming to Canon testing standards. * File size, number of possible shots, and maximum burst vary depending on shooting conditions (including subject and memory card brand). |
| Exposure Composition | Supported +/- 3 stops |
| Drive Mode | Single Shooting, Continuous Shooting |
| Movie Recording1 | |
|---|---|
| Movie Recording Format | Container Format MP4 Video H.264 / MPEG-4 AVC * Variable (averaged) bit rate Audio MPEG-4 AAC-LC (stereo) |
| Recording Size / Compression Method | Full HD: 1920x1080 / Standard (IPB) * Movie recording size adjustment not available. |
| Frame Rate | When set to NTSC: 29.97 / 23.98 fps |
| Movie Bit Rate | Approx. 30 Mbps * Video only, not including audio. |
| File Size | Approx. 217 MB/min. |
| Maximum Recording Time | 9 min. 59 sec. * Movie recording is not possible during Wi-Fi connection |
| Total Cumulative Recording Time Available | 8 GB Approx. 35 min. 32 GB Approx. 2 hr. 33 min. 128 GB Approx. 9 hr. 38 min |
| Maximum File Size | Card Format Maximum File Size microSD FAT12/16 Max. 2 GB microSDHC FAT32 Max. 4 GB microSDXC exFAT Unlimited |
| Card Performance Requirements (movie recording) | Micro SD card with SD Speed Class 6 or higher |
| Color Sampling Method | YCbCr 4:2:0 (8 bit) |
| Video Range | Full range (0-255) |
| Recording Microphone | Built-in stereo microphone * External microphone IN terminal not provided. |
| HDMI Output | Not supported * HDMI OUT terminal not provided. |
| White Balance | |
|---|---|
| Mode | Auto ( White balance presets not provided.) |
| White Balance Shift | Not supported. |
| White Balance Bracketing | Not supported. |
| Flash | |
|---|---|
| Built-in Flash | Not provided. |
| External Flash | Not supported. |
| Playback | |
|---|---|
| Playback Methods | • Playback in the cameras electronic viewfinder. • Playback on a smartphone (requires Camera Connect app (Remote control from app is not available for video)). |
| Display Conditions | Still photos: Images saved in Design rule for Camera File system format. Movies: Movie files in MP4 format * May not support playback of images from cameras other than Zoom. |
| Playback Functions | Skip backwards (approx. 4 sec.) Previous frame Next frame Skip forward (approx. 4 sec.) * slow motion, editing out first and last scenes, and volume adjustment are not available. |
| Shooting Information Display | Basic information display * Display without information and detailed information display are not available. |
| Erasing Images | Select and erase images / All images on card. |
| Image Processing After Shooting | |
|---|---|
| Print Order (DPOF) | Not supported. |
| Direct Printing@999br /> (PictBridge) | Wireless connections: Not supported Wired Connections: Not supported |
| Menu Function | |
|---|---|
| Display Device | Shown in the electornic viewfinder |
| Description | • Shooting settings • Playback settings • Wireless communication settings • Function settings |
| Display Languages | 31 languages are available. English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukrainian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turksih, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, Persian, Hewbrew, and Japanese. |
| Firmware Updates | Provided. * Firmware can be updated using Camera Connect (transferring firmware from Camera Connect to the camera). |
| External Interface | |
|---|---|
| Terminal Type | USB Type-C |
| Applications | For charging the built-in battery and supplying the power to the camera. * Recognized as a USB device when connected to a computer, and images on the memory card in the Zoom camera can be browsed and imported (transfer speed equivalent to Hi-Speed USB (USB 2.0)). |
| HDMI OUT Terminal | Not Provided. |
| Date / Time Function | |
|---|---|
| Time Zone Setting (World Time) | Honolulu, Anchorage, Los Angeles, Denver, Chicago, New York, Caracas, Newfoundland, Sao Paulo, Fernando de Noronha, Azores, London, Paris, Cairo, Moscow, Tehran, Dubai, Kabul, Karachi, Delhi, Kathmandu, Dacca, Yangon, Bangkok, Hong Kong, Tokyo/Seoul, Adelaide, Sydney, Solomon Islands, Wellington, Chatham Islands, Samoa. |
| Time Difference Setting | Provided (15 minute increments). |
| Date / Time Back-up Battery | Same as battery that powers the camera. |
| Power Supply | |
|---|---|
| Charging / Powering Specifications | Built-in rechargeable lithium-ion battery. Rated Voltage: 3.6 V Capacity: 800 mAh |
| Power Source | USB Type (Connection type) Camera Status Power Turned Off Power turned On Shooting Menu Display Playback During Wi-Fi Connection Computer Connection Type-C 18 W (9 V / 2 A) or more Charging Supplying power to the camera Supplying power to the camera + Charging 5 V / 3 A 5 V / 1.5 A - 5 V / 0.5 A - * During Wi-Fi connection, excluding remote shooting. * To avoid overheating, shooting may stop sooner when connected to a power supply during shooting. |
| Compatible Device | Commercially available USB Type-C devices that meet the specification requirements in charging /powering section*: • ANKER PowerPort III Nano Charger (included) • USB Power Adapter PD-E1 (Sold seperately). Additional Third-Party Power Supplies*: • Anker PowerPort Atom PD1 (Charging adapter) • Anker PowerPort III Nano 20W * Canon makes no representations or warranties with respect to any third party accessory or product mentioned. |
| Charging Temperature | Approx. 41-104°F / 5-40°C |
| Charging / Power Supply Display | Status Lamp Accessing to the files Green / Lit Wi-Fi Connection established Green/ Blinking USB Charging Orange / Lit Viewfinder off Warning Green / Blinking Error Green / Blinking |
| Charging Time | Charging Device Charging Time for built-in Battery PD-E1 1 hr. 50 min. * To fully recharge a completely depleted battery (unless over-discharge; details conform to Canon testing standards). * Charging time varies depending on remaining battery level and ambient temperature. * For safety, charging takes longer in colder environments (41-50°F / 5-10°C). * Charging time when connected to devices other than PD-E1 varies by device and is beyond the scope of this technical information. |
| Number of Shots Available | Approx. 150 shots * Based on CIPA standards, at 73°F / 23°C |
| Movie Recording | Approx. 1 hr. 10 min.. * With a fully charged battery, at room temperatue 73°F / 23°C |
| Playback Time | Approx 2 hrs. * With a fully charged battery, at room temperatue 73°F / 23°C |
| Start-up Time | Approx. 0.7 sec. * Based on CIPA testing standards. |
| Power-saving Functions | Feature Time Options Auto Power Off 15 sec. / 30 sec. / 1 min. / 3 min. Viewfinder Off 3 min. / Disable |
| Physical Specifications | |
|---|---|
| Operating Temperature | 32-104°F/0-40°C |
| Operating Humidity | 10-90% |
| Dimensions (W x H x D) | Approx. 1.31 x 2.00 x 4.06 in. / 33.4 x 50.8 x 103.2mm |
| Weight | Approx. 5.12 oz. / 145g (including memory card) Approx. 5.08 oz. / 144g (camera body only) |
